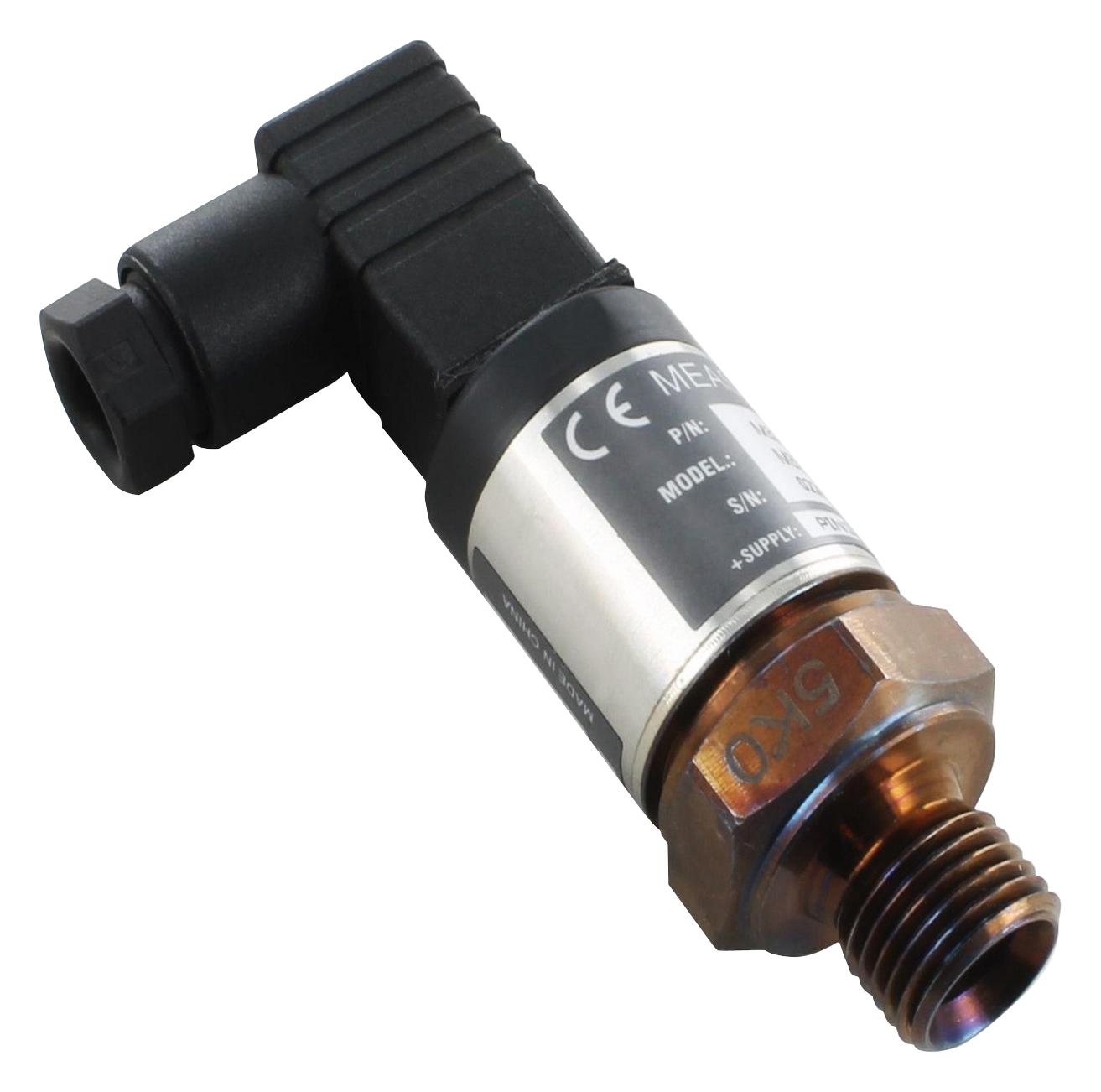

TE CONNECTIVITY M325600000E020BG Pressure Transducer
The M3200 pressure transducer from TE's Microfused line offers precise measurement of liquid and gas pressure, even in challenging media like contaminated water, steam, and mildly corrosive fluids. Made from 17-4PH stainless steel with a leak-proof 1/4 NPT port, it utilizes proprietary Microfused technology for stability and media compatibility. Suitable for industrial OEMs, it features analog and digital outputs, weatherproof design, and supports ranges up to 10,000 psi or 700 bar, making it ideal for pumps, hydraulic systems, and energy management.
TE CONNECTIVITY M325600000E020BG Pressure Transducer Specifications:
- Construction: 17-4PH stainless steel
- Pressure Ranges: 0 to 100 psi to 0 to 10,000 psi (0 to 7 bar to 700 bar)
- Outputs: 14-bit digital, 0.5-4.5V, 4-20mA, 0-5V, 0-10V
- Accuracy: 0.25% FS, total error band over temp
- Long-term stability: 0.25% FS over 1 year
- Temperature Range: -40°C to 125°C
- Ingress Protection: IP67 for cable & M12, IP66 IP65 depending on connector
- Pressure Port: G1/4 with NBR O-ring, 1/4-18 NPT, SAE J1926-2, or other options
- Shock & Vibration: 50g shock, 420g vibration per MIL-STD-810C
- CE, IEC 61000-4 immunity standards, weatherproof, with internal vent for gage types
Buy the TE Series M3200 Pressure Transducer: 15720 psi
Order the TE M3200 pressure transducer online today for accurate, reliable pressure measurement in industrial, hydraulic, and energy systems. Designed with corrosion-resistant stainless steel and featuring both analog and digital outputs, this weatherproof sensor provides stable performance over wide temperature ranges. Its compact design and IP67/IP66 ratings make it suitable for challenging environments. Whether you need a high-pressure sensor for OEM applications or energy management, this transducer ensures precision, durability, and quick installation, available now for seamless online purchase with fast delivery.
Get TE M3200 pressure transducer today—engineered for precision, durability, and reliable operation in harsh environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY M325600000E020BG?
You can click on the BUY or RFQ button to purchase M325600000E020BG from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part M325600000E020BG?
You can download the M325600000E020BG datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of M325600000E020BG?
TE CONNECTIVITY
