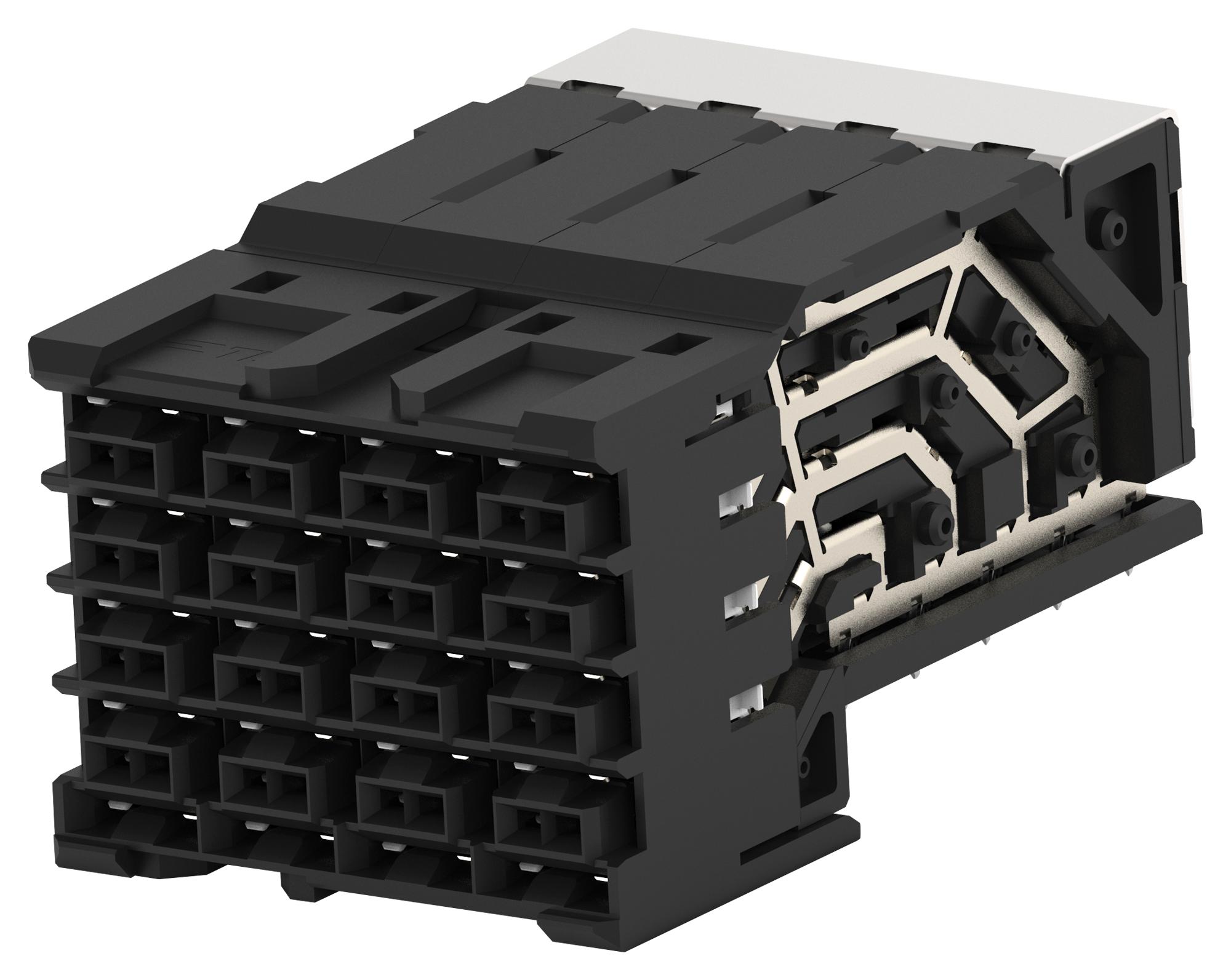

TE CONNECTIVITY 23564261 Whisper R Backplane Connector
TE Connectivity's STRADA Whisper R backplane connectors are designed for high-speed data transmission in demanding environments like data centers, servers, and wireless infrastructure. These connectors provide a seamless upgrade path from 56G PAM-4 to 112G PAM-4, reducing complexity and cost. Their low noise, low insertion loss, and minimal skew contribute to system design flexibility and high margin. Compatible with both 85 Ohm and 100 Ohm impedance systems, they offer a cost-effective solution with a fully automated assembly process.
TE CONNECTIVITY 23564261 Whisper R Backplane Connector Specifications:
- Data Rate: 56G PAM4
- Impedance: 92 Ohm
- PCB Termination: Press-fit
- Signal LLCR Max Initial: 200 mOhm
- Insulation Resistance: 1000 M-ohm min
- Voltage Rating: 80 Vac
- Current Rating: 0.5A per contact
- Wipe Length: 2.50 mm
- Mating Force: 2.50 N max per differential pair including ground
- Unmating Force: 0.31 N min per differential pair including ground
- Press-fit insertion force: 17.8 N max per contact
- Product Specification: 108-140186
- Application Specification: 114-32029
Buy the 2356426-1 TE CONNECTIVITY Whisper R Backplane Connector | myMectronic
Purchase the TE Connectivity 2356426-1 STRADA Whisper R Backplane Connector securely and reliably online.
