TE CONNECTIVITY 23596151 Outdoor Lighting Control Module
The Lumawise Endurance N+ is a robust, IP66-rated network lighting control base assembly designed for outdoor applications such as roadway and street lighting, parking lots, and commercial areas. Featuring ANSI C136 compliance, it offers reliable power and signal interfacing with protective covers that withstand harsh environments, including rain, snow, and salt spray. The assembly includes power twist-lock terminals, spring leaf signal terminals, and an integrated seal gasket, enhanced by translucent covers for daylight sensor transmission, ensuring durability and long-term performance in demanding outdoor settings.
TE CONNECTIVITY 23596151 Outdoor Lighting Control Module Specifications:
- Operating Temperature Range: -40°C to +105°C
- Housing Material: UL 94 V-0
- Contact Plating: Tin plated power contacts, gold plated signal contacts (3, 5, 7 positions available)
- Dimensions: Base diameter 84.7mm; Cover options: 58.6mm or 117.0mm tall
- Enclosure Rating: IP66
- Impact Rating: IKO8 (cover)
- Flammability Rating: UL 94 5-VA
- Sealing: Integrated gasket, optional vent for increased lifespan
- Application: Street lighting, roadway lighting, commercial outdoor lighting
- Color: Base (black), cover transparent, smoke gray or light gray
- Environmental: Designed to resist dust, jet spray, and harsh outdoor conditions

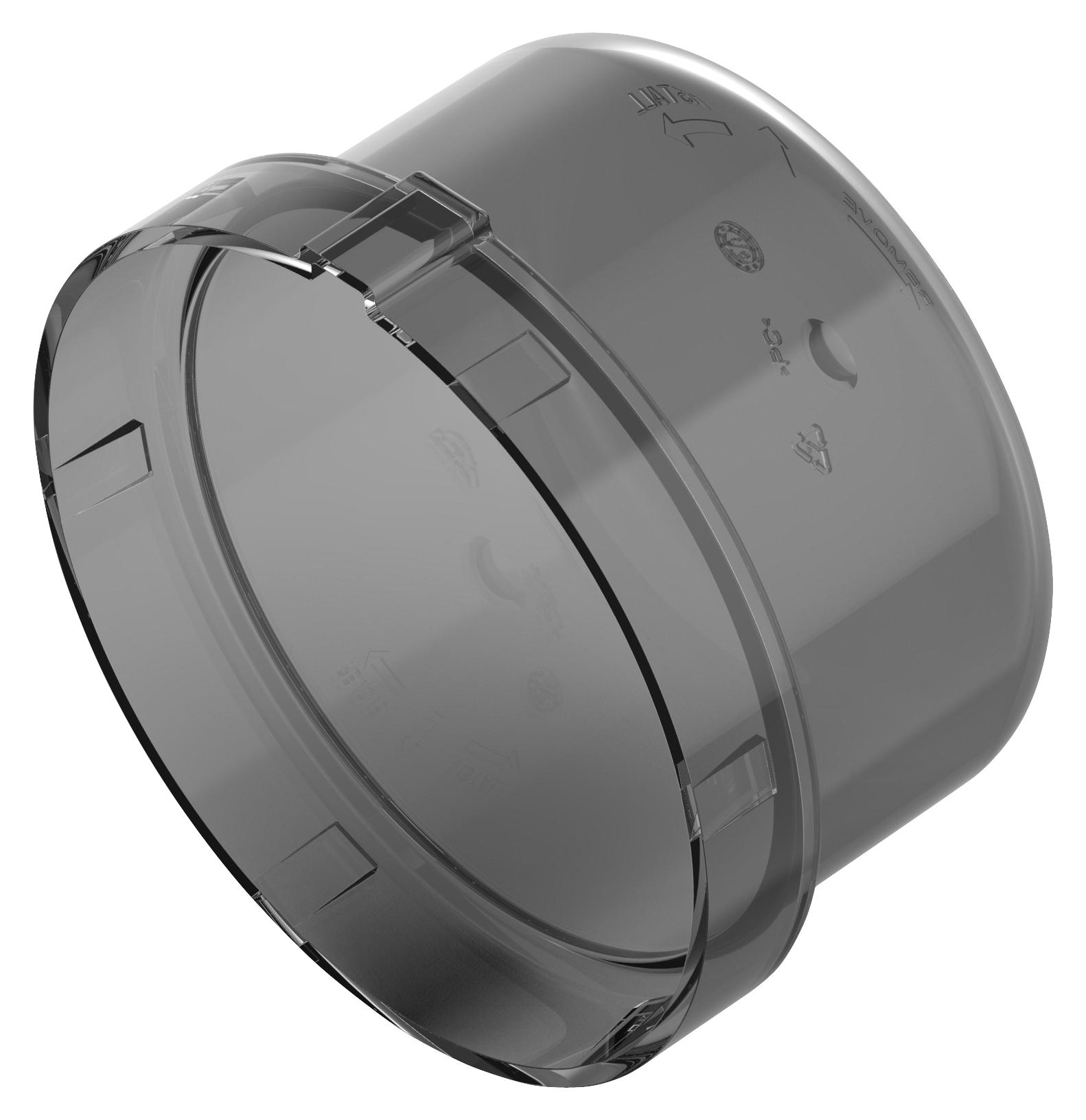

Buy the Buy TE Connectivity Lumawise Endurance N+ Part Number 23596151 Online
Purchase the TE Connectivity Lumawise Endurance N+ base assembly online to ensure long-lasting durability and superior protection for outdoor lighting installations. Perfect for street, roadway, and commercial lighting, this IP66-rated enclosure features a sealed gasket, optional venting, and impact-resistant covers. Its ANSI C136 compliance guarantees compatibility with various lighting controls, making it an ideal choice for outdoor environments exposed to dust, heavy jet spray, and extreme weather conditions. Buy now to enhance your illumination projects with high-quality, reliable control components.
Get TE Connectivity Lumawise Endurance N+ base assembly today—designed for outdoor lighting control with IP66 protection and reliable sealing.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23596151?
You can click on the BUY or RFQ button to purchase 23596151 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23596151?
You can download the 23596151 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23596151?
TE CONNECTIVITY
