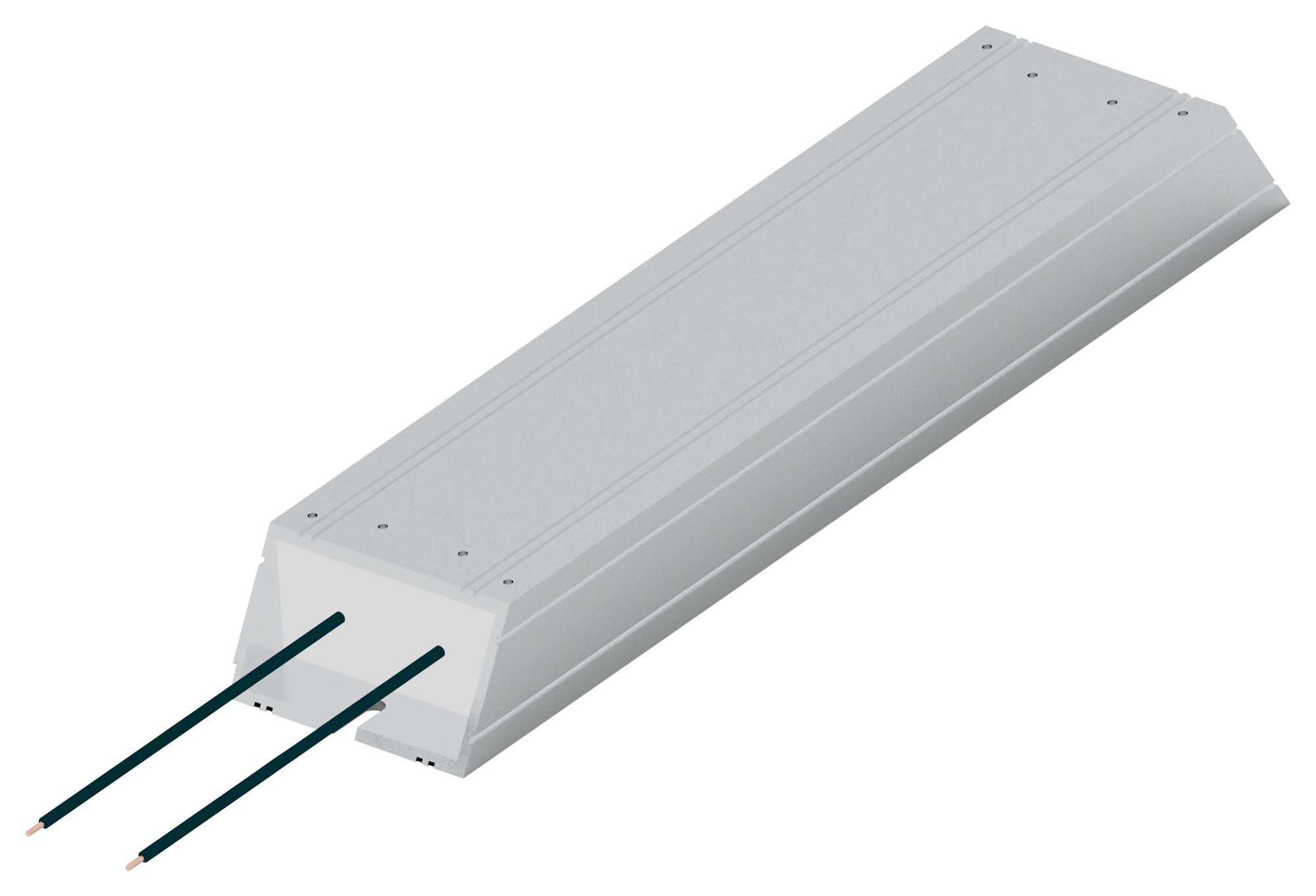

TE CONNECTIVITY HCH265J100RJ Braking Resistor
The aluminium housed braking resistor series offers high power overload capability with IP54 protection and PTFE insulated flying leads for flexible connections. Designed for braking applications, these wire wound resistors feature an anodized aluminium profile body, dielectric strength of 3500VAC, and a maximum working voltage of 1100V. Available in models like HCH165 to HCH335, they support pulse overloads up to 500W and operate at temperatures up to 375°C. Suitable for drive systems, these resistors ensure reliable performance with tested overload and environmental resilience.
TE CONNECTIVITY HCH265J100RJ Braking Resistor Specifications:
- Power Rating: 200W to 500W depending on model
- Maximum Working Voltage: 1100V
- Insulation Resistance: >100MO at 1000VDC
- Dielectric Strength: 3500VAC for 1m
- Temperature Range: -55°C to 375°C
- Ingress Protection: IP54
- Resistor Element: Wire Wound
- Resistor Body: Anodized extruded aluminium profile
- Flying Lead Length: 300mm, PTFE insulated, 1000V
- Resistance Range: 680Ω to 2200Ω across models
- Peak Pulse Power: Up to 7000W for short durations depending on model
- Load Life: 1000 hours with 90% performance
- Environmental Tests: Damp heat and load life tests compliant
- Dimensions vary by model, e.g., HCH165 length 165mm, HCH335 length 335mm
Buy the TE Series HCH1500 Braking Resistor: HCH265J100RJ
Enhance your industrial drive systems with the TE Series aluminium housed braking resistor. Designed for high power overloads, it features IP54 protection, PTFE insulated flying leads, and excellent thermal stability up to 375°C. These wire wound resistors are suitable for braking applications requiring rapid pulse overloads and consistent performance over load cycles. Their anodized aluminium profile body ensures durability in harsh environments. Order online now to secure high-quality, reliable braking resistors for efficient system performance and dependable operation in demanding industrial conditions.
Order your TE Series HCH265 100Ω aluminium braking resistor today and ensure reliable overload performance for your drive systems and industrial applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY HCH265J100RJ?
You can click on the BUY or RFQ button to purchase HCH265J100RJ from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part HCH265J100RJ?
You can download the HCH265J100RJ datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of HCH265J100RJ?
TE CONNECTIVITY
