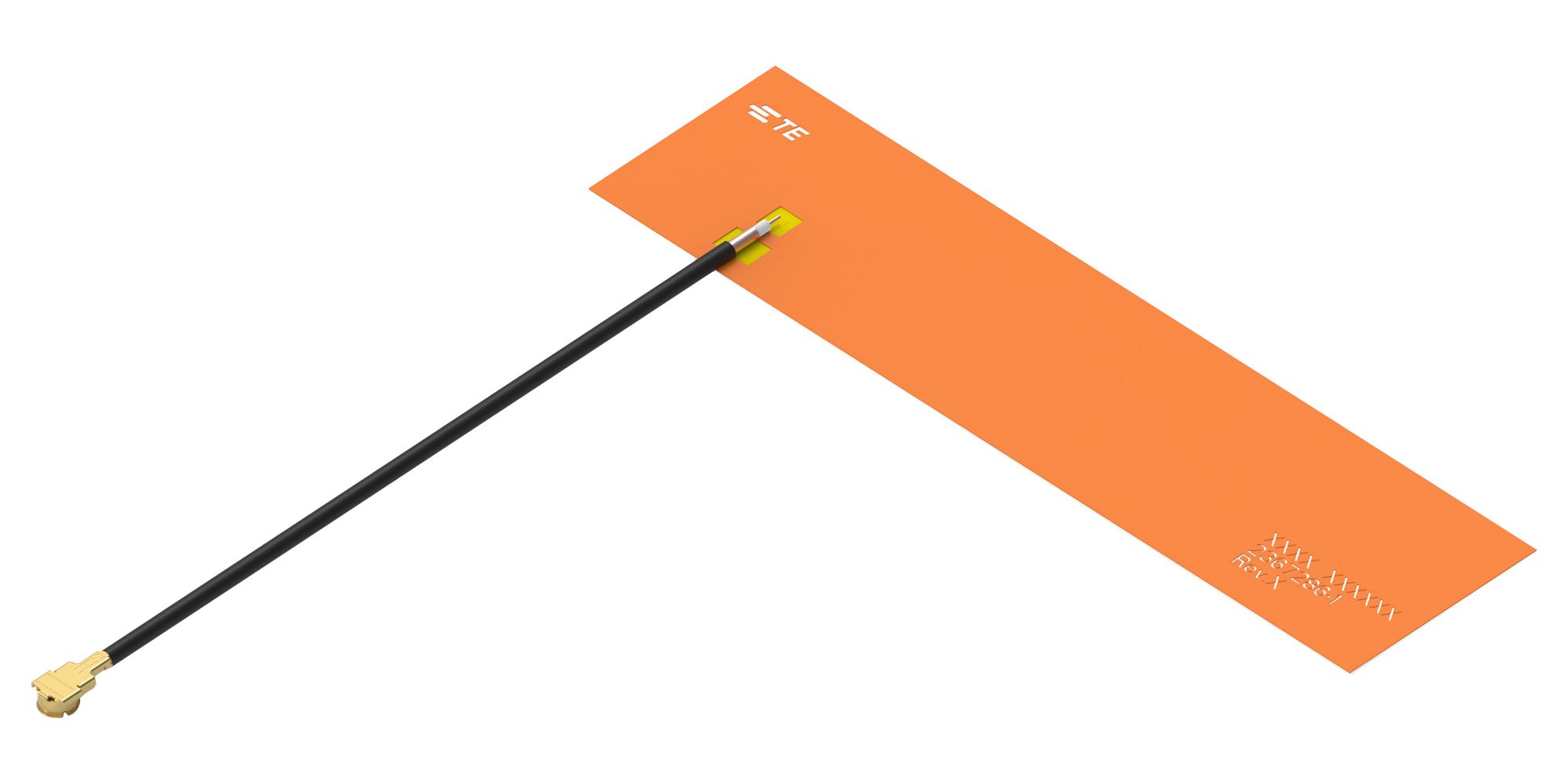

TE CONNECTIVITY 23672861 Chassis LTE Antenna
The LTE antenna is designed for chassis mounting with adhesive, featuring a cable assembly that is MHF compatible and 200 mm in length. It covers multiple frequency bands including 698–960 MHz and 1710–2700 MHz, making it suitable for LTE, WCDMA, and UMTS applications. Weighing just 2.9 g, it offers a maximum gain of 4 dB and features linear polarization. The antenna is compliant with EU RoHS, ELV, and Reach standards, ensuring eco-friendly and safe operation globally, ideal for wireless applications requiring reliable dual-band LTE connectivity.
TE CONNECTIVITY 23672861 Chassis LTE Antenna Specifications:
- Frequency Band: 698–960 MHz, 1710–2700 MHz
- Gain (Max): 4 dB
- Antenna Type: Embedded Thin PCB
- Antenna Style: Linear Polarization
- Cable Length: 200 mm (7.87 in)
- Cable Insulation Diameter (Max): 7 mm
- Product Diameter: 1.13 mm
- Product Length: 65 mm
- Product Width: 15 mm
- Product Height: 0.19 mm
- Weight: 2.9 g
- Impedance: 50 Ω
- VSWR (Max): <4.0:1
- Antenna Connection: Cable Assembly, MHF Compatible
- Mounting: Chassis, Adhesive
- Operating Conditions: Global Use
- Certification & Standards: EU RoHS, ELV, Reach
- Region: Global
- Application: LTE, UMTS, WCDMA wireless communications
Buy the TE Series LTE Antenna: 2367286-1
Purchase the TE Series LTE Antenna 2367286-1 online today for robust dual-band LTE connectivity designed for chassis mounting with adhesive. Its 200 mm cable length and MHF compatibility ensure easy installation in various applications. With lightweight construction weighing only 2.9 grams and a maximum gain of 4 dB, this antenna provides excellent signal strength across multiple frequency bands including 698–960 MHz and 1710–2700 MHz. Designed for global use, it complies with EU RoHS, ELV, and Reach standards, ensuring safe, environmentally friendly operation in wireless applications requiring reliable connectivity in the LTE, UMTS, and WCDMA standards.
Get TE Series LTE Antenna 2367286-1 today—built for reliable dual-band LTE connectivity and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23672861?
You can click on the BUY or RFQ button to purchase 23672861 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23672861?
You can download the 23672861 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23672861?
TE CONNECTIVITY
