TE CONNECTIVITY 23792381 Pluggable Power Connector
TE Connectivity's NECTOR T Pluggable connectors are sealed IP68 power-distribution solutions designed for outdoor applications and harsh environments. These connectors support quick installation via crimp or screw terminals, offering high reliability and UV/rain/dust resistance. Ideal for horticultural lighting, farm and grow lights, and outdoor power distribution, they include various in-line, socket, pin, panel-mount, and splitter options with polarizing keys for accurate mating. Made from high-performance copper alloys and UV-rated PBT+PC resin, they meet IP67/IP68 standards and operate at 600 Vac and 10-25 Amps, ensuring durability in demanding environments.
TE CONNECTIVITY 23792381 Pluggable Power Connector Specifications:
- IP rated: IP67, IP68
- Operating Voltage: 600 Vac (UL), 500 Vac (IEC)
- Current Rating: 10 to 25 Amp
- Material: PBT + PC resin with UL 94 VO & UV F1 rating
- Contacts: High-performance copper alloy
- Cable Gland Range: 7 to 9 mm, 11 to 15 mm
- Crimp Terminal Range: 14 AWG to 12 AWG (2.5 mm² to 4.0 mm²)
- Mechanical: Polarizing key A, Key B (optional)
- Standards: UL 2238, IEC 61535-1
- Applicable Applications: Outdoor lighting, horticultural, grow lights
- Product Types: Socket, pin, in-line, panel mount, splitters
- Accessories: Safety caps, dust covers

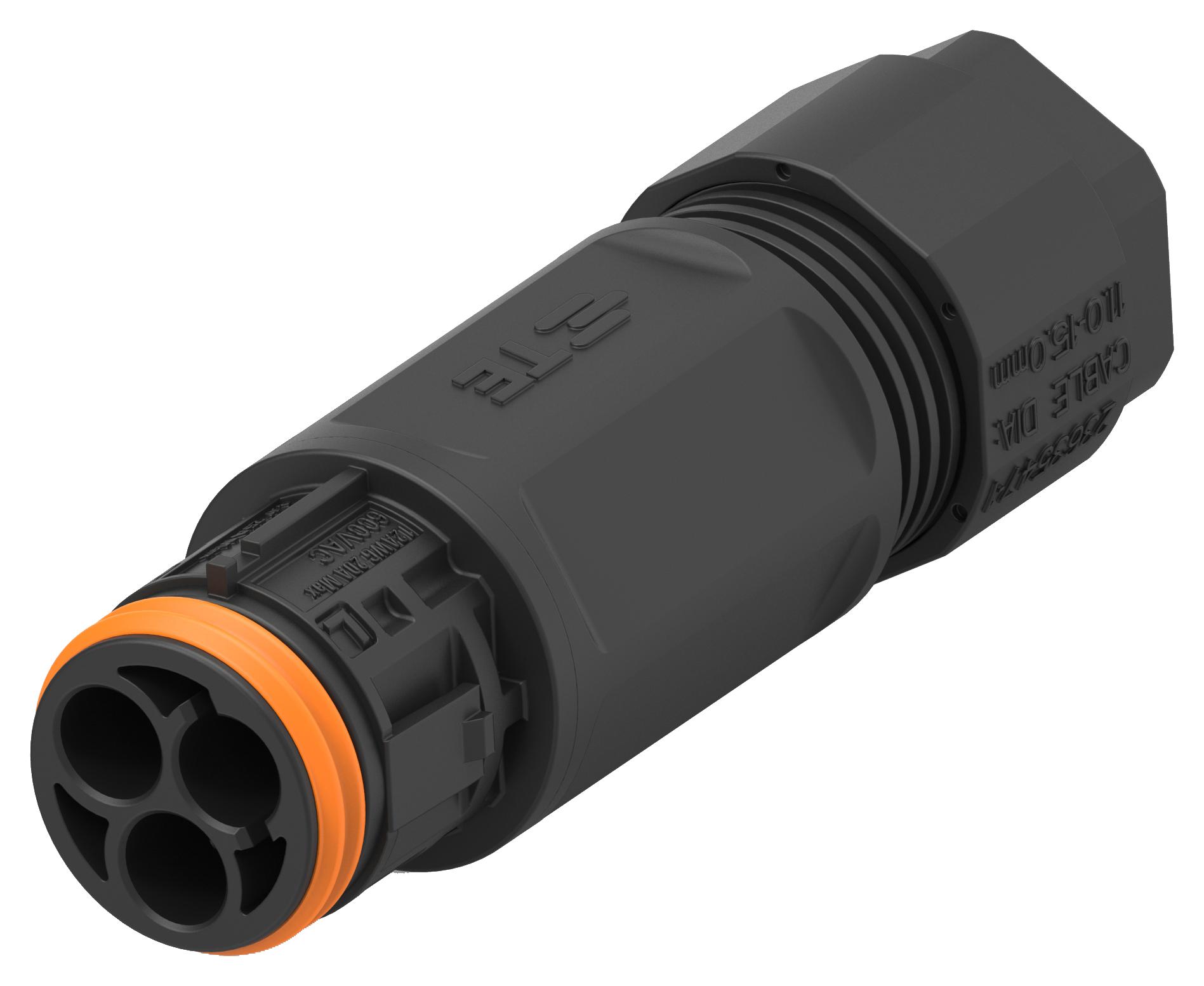

Buy the Buy TE Connectivity NECTOR T Pluggable Part Number 23792381 Online
Purchase TE Connectivity NECTOR T Pluggable connectors online today for robust outdoor power solutions. These sealed IP68 connectors are easy to install using crimp or screw terminals, making them suitable for wet, dusty, and harsh environments like horticultural lighting and outdoor displays. They offer high current ratings of up to 25 Amps and operate at 600 Vac, ensuring reliable performance in demanding conditions. With high-grade materials, IP67/IP68 sealing, and versatile configurations, these connectors provide long-lasting durability and flexible installation options for professional outdoor projects.
Order your TE Connectivity NECTOR T Pluggable Part Number 23792381 today and ensure reliable outdoor power distribution with sealed and easy-to-install connectors.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23792381?
You can click on the BUY or RFQ button to purchase 23792381 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23792381?
You can download the 23792381 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23792381?
TE CONNECTIVITY
