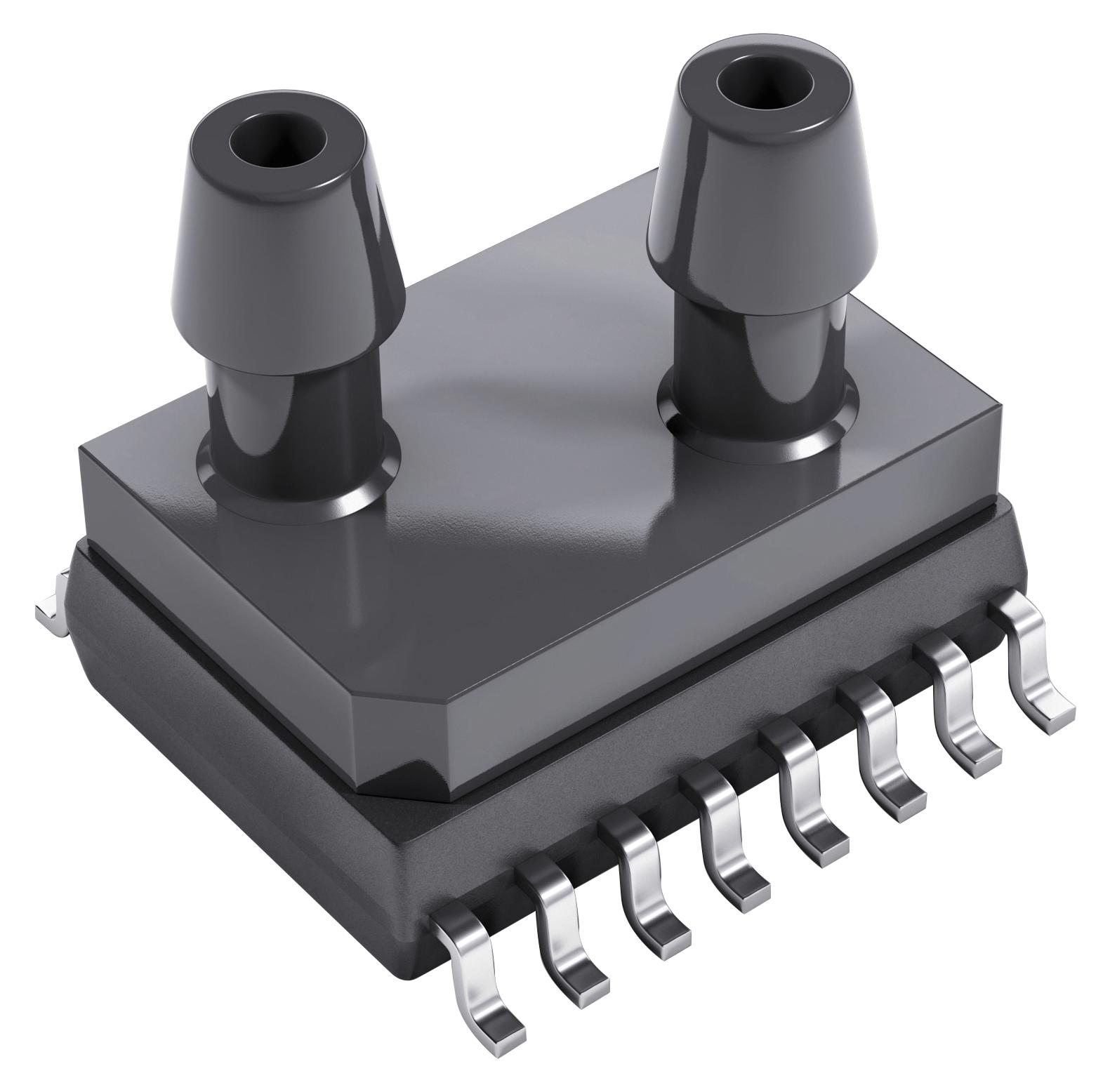

TE CONNECTIVITY SM9236BCES600000 Ultra-Low Pressure Sensor
The ultra-low pressure digital sensor series provides highly precise, temperature compensated pressure measurements for applications including HVAC, medical devices, and industrial automation. These sensors feature digital output, autozero calibration, and robust MEMS technology with an error band of less than 1%FS. Available in gage and differential types, they deliver stable, long-term performance with a compact JEDEC SOIC-16 package, suitable for direct PCB mounting, offering high accuracy, fast update rates up to 2000 Hz, and operation from 3.3V to 5V power supplies.
TE CONNECTIVITY SM9236BCES600000 Ultra-Low Pressure Sensor Specifications:
- Pressure Ranges: 0 to +250 Pa, 0 to +300 Pa, 0 to +600 Pa, -125 to +125 Pa, -250 to +250 Pa
- Supply Voltage: 3.3 V to 5.5 V
- Digital Output Resolution: 16 Bits
- Output Count Range: -26,215 to +26,214 counts
- Total Error Band: <1%FS after autozero
- Response Time: 18 ms (settled)
- Bandwidth: 20 Hz
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +125°C
- Electrical Interface: I²C (standard and CRC protected modes)
- Inrush Current: 3.3V: 33 mA; 5V: 3.9 to 5 mA
- Dimensions: JEDEC SOIC-16, approx. 19.6 mm x 5.3 mm
- Material: Silicon MEMS die, glass, epoxy, stainless steel
- Certifications: Reach, RoHS, PFOS/PFOA compliant
Buy the TE Connectivity SM9236 Ultr Low Pressure Digital Sensor – Reliable Gage and Differential Pressure for Industrial Applications
Purchase the TE Connectivity SM9236 ultralow pressure digital sensor online today. Designed for high accuracy, fast response, and robust performance, this pressure sensor integrates seamlessly into industrial, HVAC, medical, and pneumatic systems. Its digital output simplifies data acquisition while ensuring stability and long-term reliability. With a compact JEDEC SOIC-16 package, it offers excellent sensor performance with less than 1% full-scale error after autozero calibration, operational from -20°C to +85°C, and supply voltage flexibility from 3.3V to 5V. Improve your system’s precision with this advanced pressure sensor.
Get TE Connectivity SM9236 today—built for precision and long-lasting durability, perfect for industries requiring ultra-low pressure monitoring.
