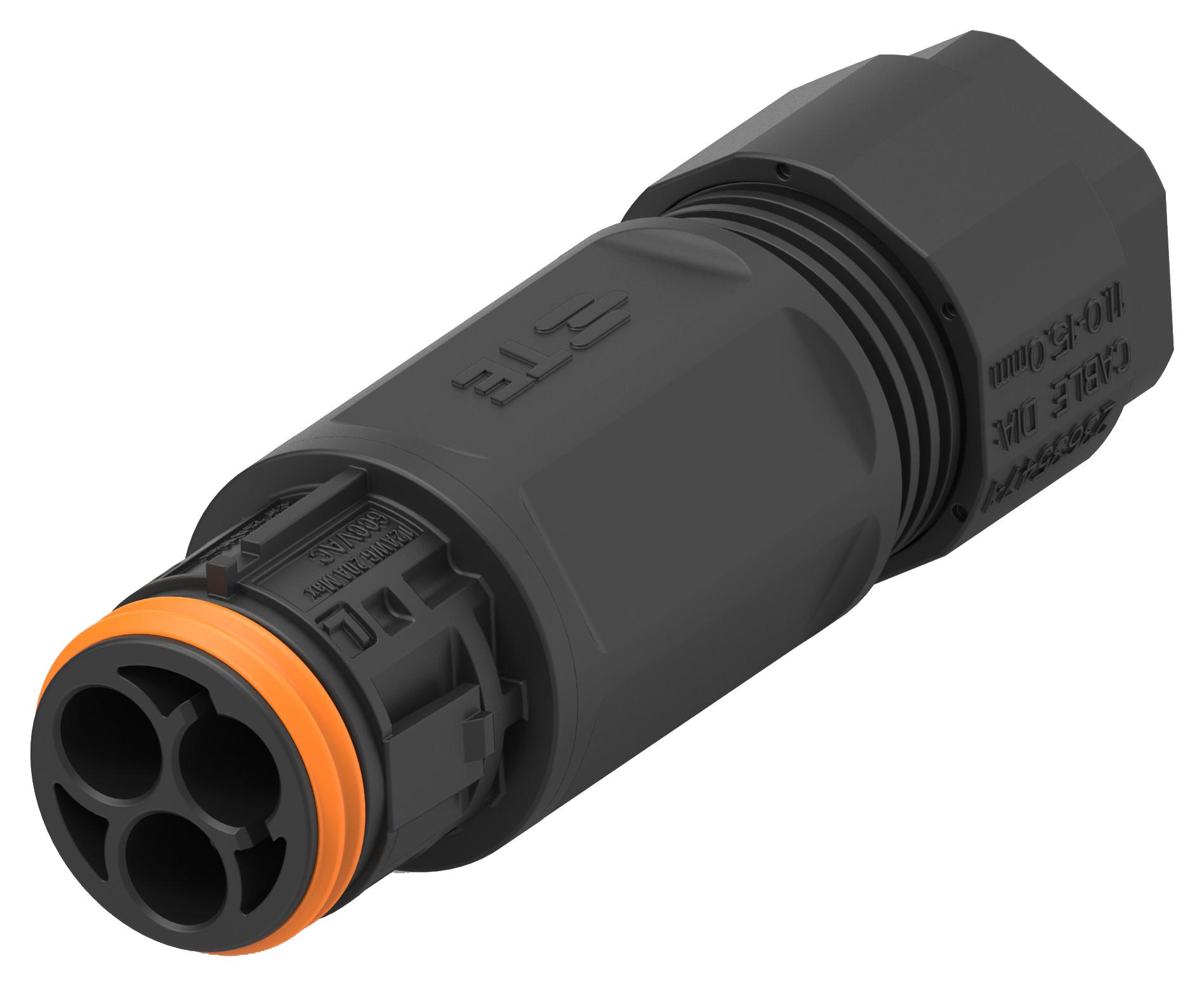

TE CONNECTIVITY 23792401 Outdoor Power Connector
The TE Connectivity NECTOR T Pluggable connectors are sealed IP68 power-distribution solutions designed for outdoor environments like horticultural lighting, garden, and façade applications. These connectors feature quick installation with crimp and screw terminals, UV and rain protection, and flexibility in cable range. Available with multiple configurations, they support high-performance copper contacts, withstand harsh conditions, and are suitable for 10-25 Amp electrical loads at up to 600 Vac. Ideal for reliable, easy, and durable outdoor electrical connections in demanding environments.
TE CONNECTIVITY 23792401 Outdoor Power Connector Specifications:
- Application Spec: 114-133123
- Product Spec: 108-133123
- Cable Gland Range: 7 to 911mm and 11 to 15mm
- Material: PBT + PC resin with UL 94 VO & UV F1 rating
- Contacts: High-performance copper alloy
- Electrical: 600 Vac (UL), 500 Vac (IEC), 10-25 Amp
- IP Rating: IP67, IP68
- Termination: Crimp and screw options available
- Temperature Range: Suitable for outdoor environments with UV protection
- Polarizing Key: A (initial), B available on request
Buy the TE Connectivity Series NECTOR T Power Connector: 23792401
Purchase the TE Connectivity NECTOR T Pluggable Connector online today for a durable, waterproof solution ideal for outdoor lighting and harsh environments. Designed for easy installation using crimp or screw terminals, these high-quality IP68 rated connectors provide reliable electrical connections supporting up to 25 Amp and 600 Vac. Made with UV-resistant materials, they withstand rain, dust, and UV exposure, ensuring long-lasting performance in demanding outdoor applications like horticultural lighting, facade installations, and garden lighting. Get your dependable outdoor power connection now!
Order your TE Connectivity Series NECTOR T power connector today and enjoy reliable, weatherproof outdoor electrical connections with easy installation options.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23792401?
You can click on the BUY or RFQ button to purchase 23792401 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23792401?
You can download the 23792401 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23792401?
TE CONNECTIVITY
