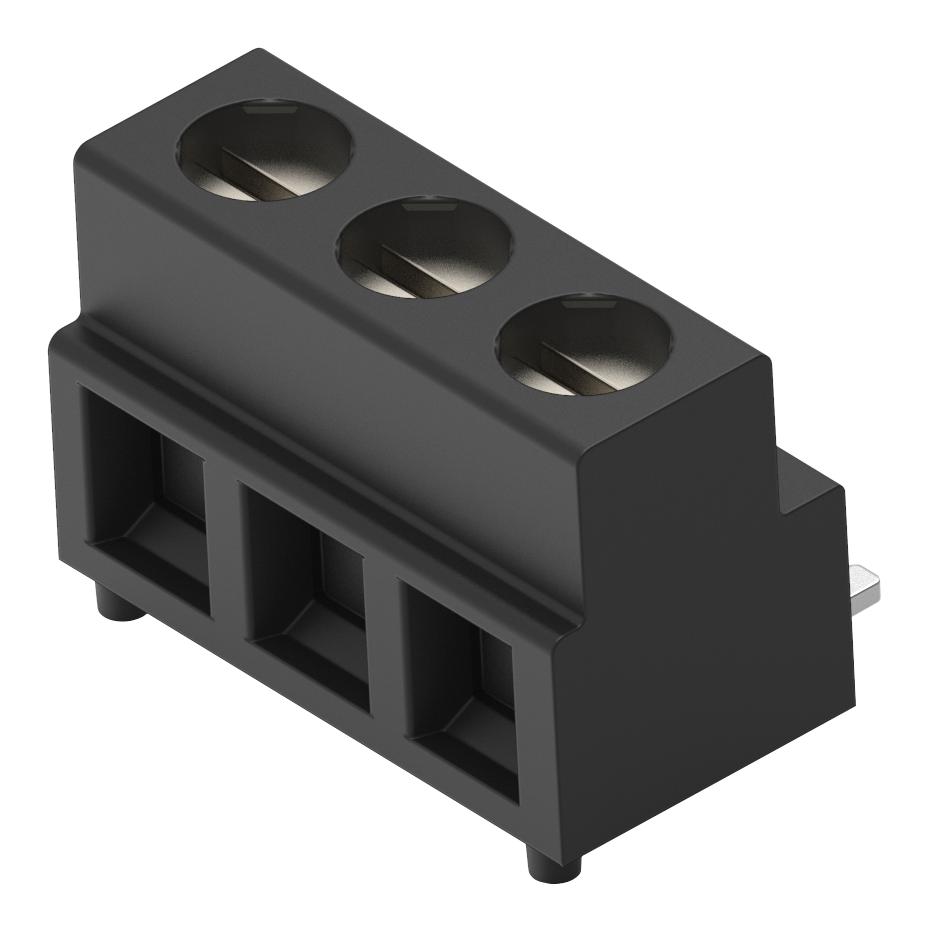

TE CONNECTIVITY 23839413 PCB Terminal Block
The PCB terminal block is a wire-to-board header featuring 3 positions with a 3.81mm centerline pitch. Designed for reliable electrical connections, this power and signal connector accommodates wire sizes from 28 to 18 AWG, supporting a maximum current of 7A and a voltage rating of 300 VAC. Constructed from high-temperature polyamide with copper alloy contacts, it offers side wiring entry, surface mount mounting, and a black housing for durability in various environmental conditions. Suitable for power routing and signal transfer in electronic assemblies, ensuring secure, precise connections with compliance to RoHS standards.
TE CONNECTIVITY 23839413 PCB Terminal Block Specifications:
- Centerline (Pitch): 3.81 mm
- Number of Positions: 3
- Number of Rows: 1
- Wire Entry Angle: Side
- Wire Range: 28 — 18 AWG
- Current Rating (Max): 7A
- Voltage Rating: 300 VAC
- Housing Material: High Temperature Polyamide
- Housing Color: Black
- Contact Material: Copper Alloy
- Contact Plating: Tin
- Mounting Type: Surface Mount
- Temperature Range: -40 — 105 °C
- Solder Process: Reflow capable up to 260°C
Buy the Buy TE PCB Terminal Block Part Number 23839413 Online
Purchase the TE PCB Terminal Block with 3 positions and 3.81mm pitch online for secure, efficient electrical connections. Designed for power and signal routing, this high-quality connector supports wire sizes from 28 to 18 AWG and delivers a maximum current of 7A at 300 VAC. Its surface-mount design features a durable black high-temperature polyamide housing and tin-plated copper alloy contacts, ensuring reliable operation in various environments. Ideal for electronic assemblies, it provides side wire entry for easy installation and complies with RoHS standards for environmental safety.
Get TE 23839413 today—built for reliable power and signal connections in electronic assemblies with durable high-temperature housing.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23839413?
You can click on the BUY or RFQ button to purchase 23839413 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23839413?
You can download the 23839413 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23839413?
TE CONNECTIVITY
