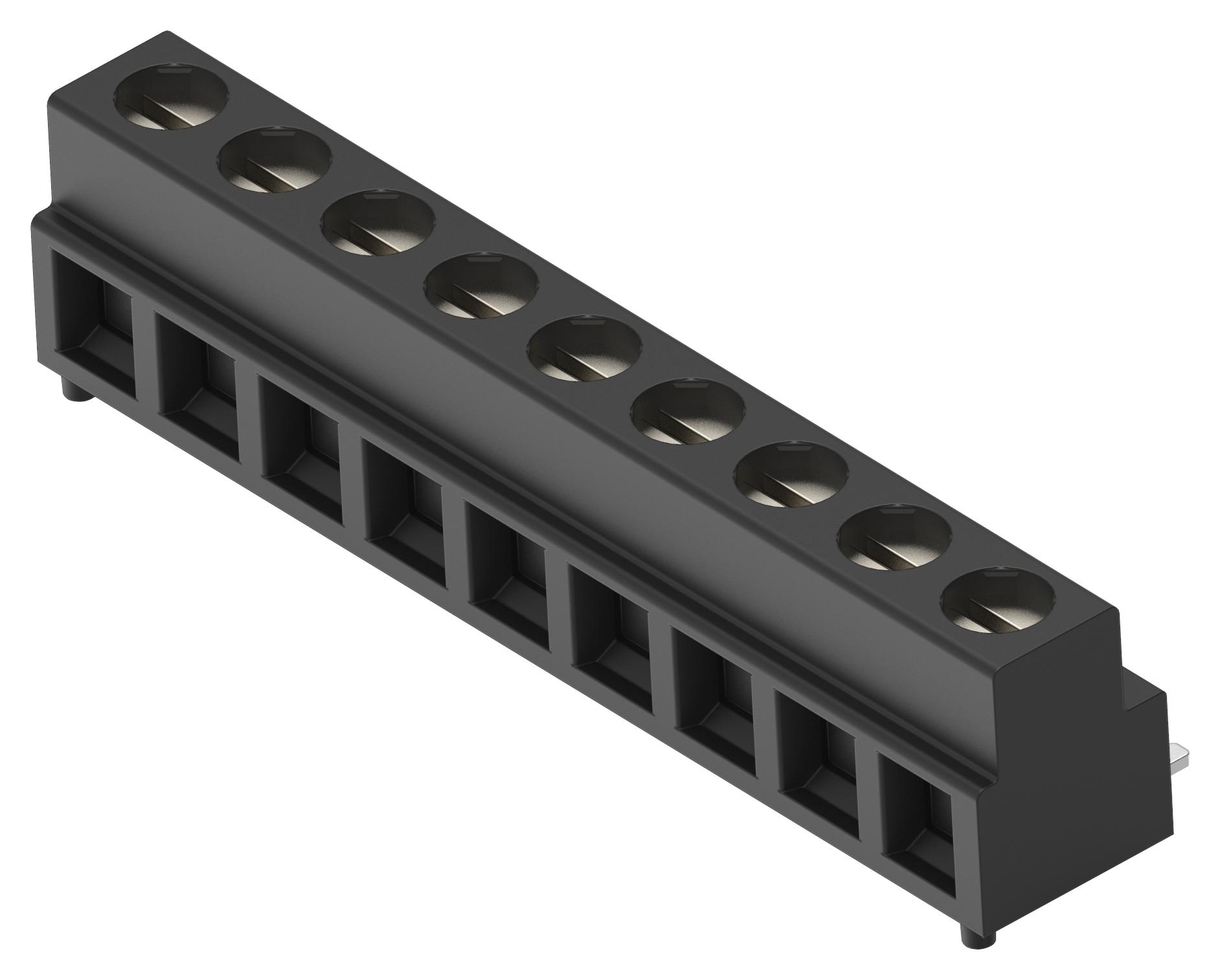

TE CONNECTIVITY 23839419 PCB Terminal Header
This PCB terminal block header offers a reliable wire-to-board connection with 9 positions and a 3.81mm centerline pitch, suitable for industrial and electronic applications. It features side wire entry, a rated current of 7A, and is constructed from copper alloy with tin plating for enhanced durability. The component supports voltage up to 300VAC, and its high-temperature polyamide housing ensures reliable operation in harsh environments. Designed for surface mounting, it combines rugged mechanical attachment with ease of assembly, making it ideal for power and signal circuit configurations requiring secure and compact connections.
TE CONNECTIVITY 23839419 PCB Terminal Header Specifications:
- Number of Positions: 9
- Centerline (Pitch): 3.81 mm [.15 in]
- Number of Rows: 1
- Wire Entry Angle: Side
- Wire Size: 0.08 — 0.82 mm
- Current Rating (Max): 7A
- Voltage Rating: 300 VAC
- Housing Material: High Temperature Polyamide
- Housing Color: Black
- Mounting Type: Board Mount
- Contact Material: Copper Alloy with Tin Plating
- Solder Process Capability: Reflow solder capable to 260°C
- Operating Temperature Range: -40 — 105 °C [-40 — 221 °F]
- Packaging Method: Tape & Reel, 300 pieces
- Compliance: EU RoHS, China RoHS 2, REACH Candidate List
Buy the TE 2383941 U–Reliable PCB Terminal Header for Industrial Applications
Purchase the TE PCB Terminal Header with 9 positions and 3.81mm pitch today. Designed for reliable wire-to-board connections, it features side wire entry for quick assembly, a maximum current of 7A, and a robust high-temperature polyamide housing. Ideal for industrial electronics, power applications, and signal circuits, this surface-mount component ensures excellent durability and secure attachment, supporting reflow soldering up to 260°C. Enhance your electronic assembly with this dependable, easy-to-use terminal block header—order online now for fast delivery and quality assurance.
Get TE 2383941 today—built for secure connections and high durability in electronic power and signal circuits.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23839419?
You can click on the BUY or RFQ button to purchase 23839419 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23839419?
You can download the 23839419 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23839419?
TE CONNECTIVITY
