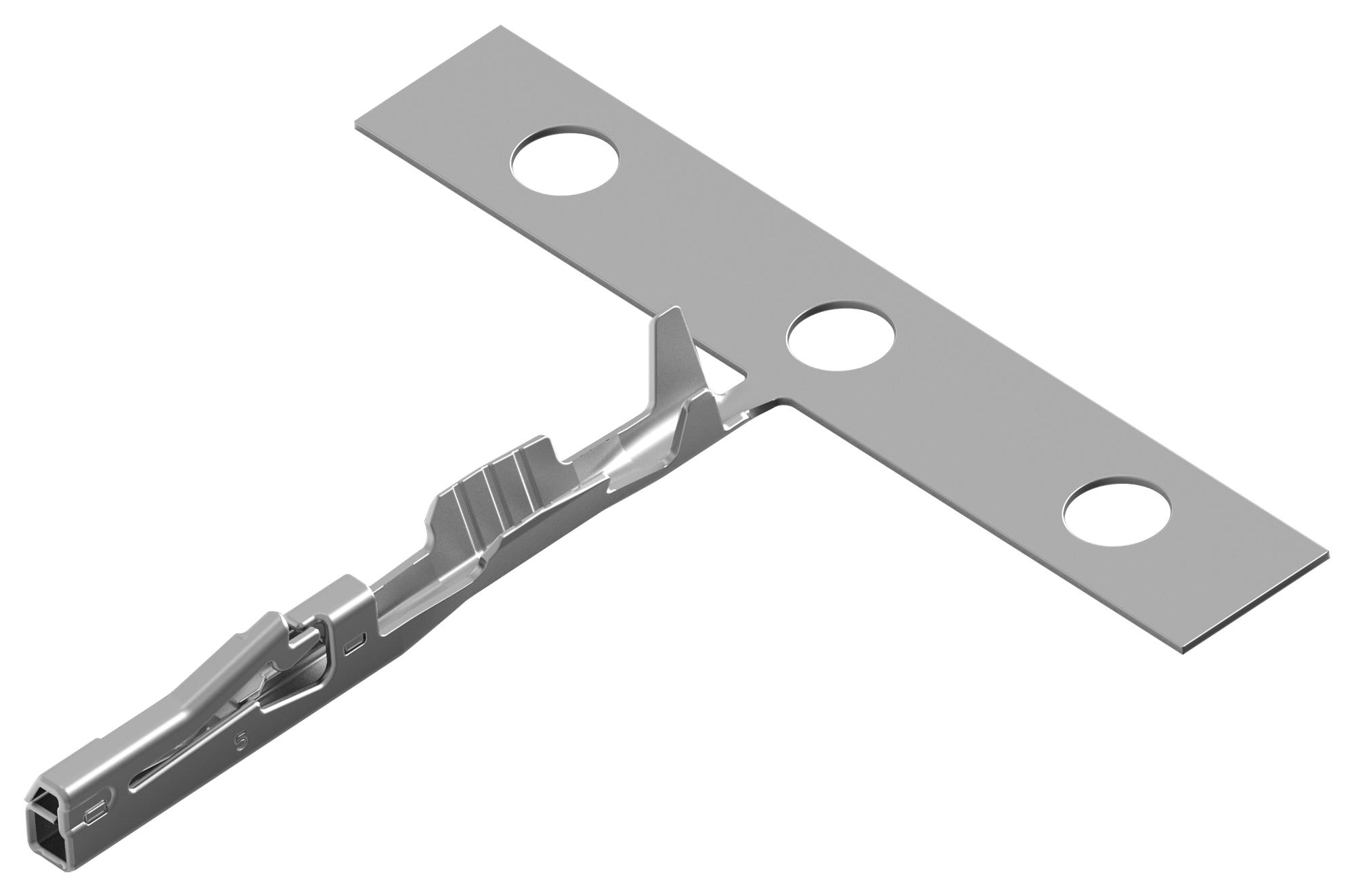

TE CONNECTIVITY 28344646 Dynamic Mini Series Connector
The TE Connectivity Dynamic Mini Series connectors are designed for signal transmission on PCBs, offering a lower profile than existing Dynamic D1000 connectors while maintaining the same performance. These connectors feature a positive audible locking feature, high retention force due to the “second lock” design, and SMT reflow capability for faster system assembly. Applications include new energy, automation, machinery, robotics, servo drives, and process controllers. The protective latching concept helps to avoid accidental unlatching, contributing to the low profile design and overall reliability.
TE CONNECTIVITY 28344646 Dynamic Mini Series Connector Specifications:
- Rated Current: 3A
- Rated Voltage: 250V AC / 125V DC
- Withstand Voltage: 650V AC / 1000V DC
- AWG: 22-26
- Contact Material: Copper alloy
- Plating: Tin over Nickel
- Pitch: 1.80mm
- Durability: 30 cycles
- Position: 12, 16 & 20
- Operating Temperature: -40~125°C
- HDR Housing Material: Nylon
- Rec Housing Material: PBT
- Spacer Material: PBT
- Solder Peg Material: Copper alloy
- Product Specification: 108-137443
- Application Specification: 114-137527
- Nominal cross-section Insulation DIA: 0.85-1.30 mm
- UL Standard: UL 1059
- LV Standard: LV 214
