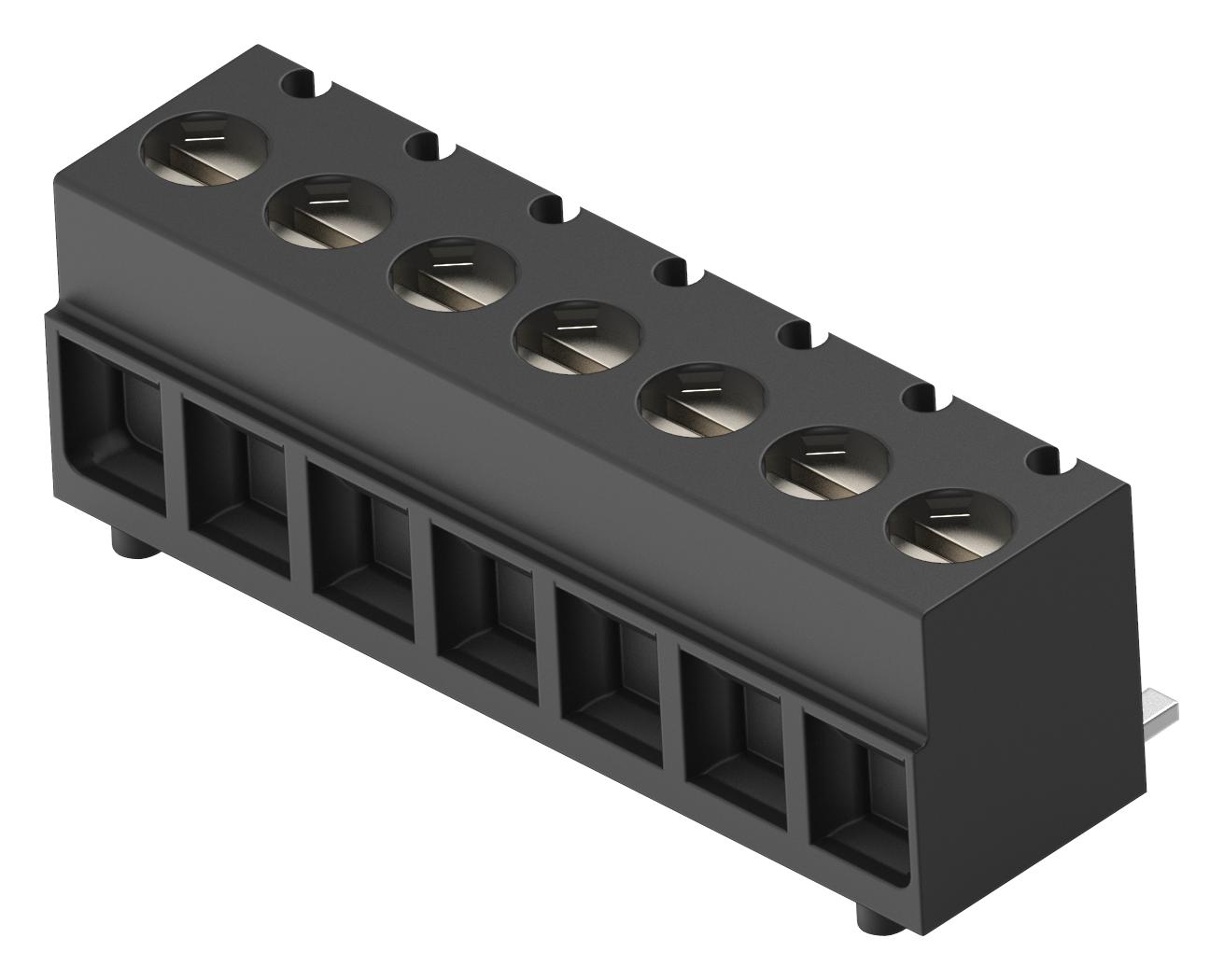

TE CONNECTIVITY 23839457 7 Position PCB Terminal Block
The TE Connectivity 2383945-7 is a PCB terminal block designed for robust wire-to-board connections in power and signal applications. This header-style block features 7 positions arranged in a single row with a 3.81mm centerline. It supports wire sizes from 28 to 16AWG and offers side wire entry for ease of use. The block is stackable, allowing for increased density in your designs, and is rated for a maximum current of 12A at 300VAC. Constructed with a high-temperature polyamide housing and copper alloy contacts, this terminal block provides reliable performance in demanding environments. It is RoHS compliant and suitable for a wide range of industrial and commercial applications.
TE CONNECTIVITY 23839457 7 Position PCB Terminal Block Specifications:
- Wire Protection: With
- Block Type: PCB Mount
- Terminal Block Connector Type: Header
- Connector System: Wire-to-Board
- Connector & Contact Terminates To: Printed Circuit Board
- Threaded Flange: Without
- Stacked Levels: Level 1
- Stacking Configuration: Side Stackable
- Number of Positions: 7
- Number of Rows: 1
- Wire Entry Angle: Side
- Current Rating (Max): 12 A
- Voltage Rating: 300 VAC
- Interlock: Without
- Color: Black
- Contact Mating Area Plating Material: Tin
- Contact Mount: Surface Mount
- Contact Base Material: Copper Alloy
- Contact Current Rating (Max): 12 A
- Screwless Terminal Block: No
- Mounting Angle: Vertical
- Screw Size: M2
- Screw Plating Material: Tin
- Screw Material: Copper Alloy
- Screw Flange: Without
- Connector Mounting Type: Board Mount
- Housing Color: Black
- Housing Material: High Temperature Polyamide
- Centerline (Pitch): 3.81 mm[.15 in]
- Wire Size: .08 – 1.31 mm²
- Operating Temperature Range: -40 – 105 °C[-40 – 221 °F]
- Circuit Application: Power & Signal
- Packaging Method: Tape & Reel
- Packaging Quantity: 300
Buy the 2383945-7 TE CONNECTIVITY 7 Position PCB Terminal Block | myMectronic
Purchase the TE Connectivity 2383945-7 PCB Terminal Block securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23839457?
You can click on the BUY or RFQ button to purchase 23839457 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23839457?
You can download the 23839457 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23839457?
TE CONNECTIVITY
