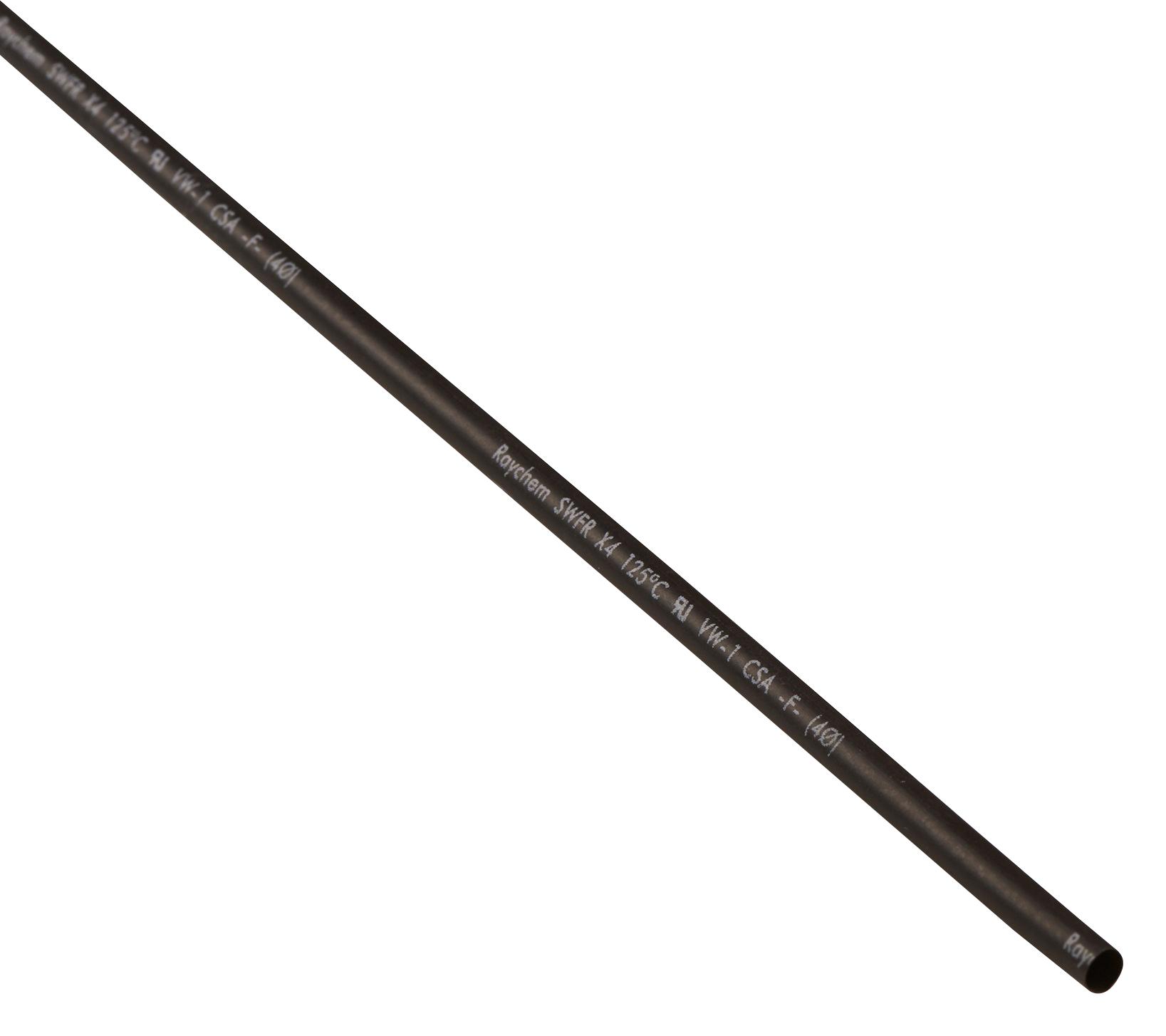

TE CONNECTIVITY X41200FSPSM Heat-shrink tubing
SWFR X4 heat-shrinkable tubing is a very-thin-wall, flame-retardant, zero halogen polyolefin tube designed for space-saving and rapid shrinking applications. It offers excellent flexibility, environmental safety, and high flame-retardance ratings (UL VW-1 and CSA). Suitable for protecting and insulating components with minimal space, it shrinks over twice as fast as standard tubing at 125°C, with a full recovery temperature of 90°C and a continuous operating range of -30°C to 125°C. Ideal for electronics, wiring, and delicate insulation tasks, ensuring reliable performance in demanding environments.
TE CONNECTIVITY X41200FSPSM Heat-shrink tubing Specifications:
- Minimum shrink temperature: 70°C
- Full recovery temperature: 90°C
- Continuous operating temperature: -30°C to 125°C
- Dimensions vary by size, with typical inside diameter 0.954 mm to 26.8 mm
- Wall thickness: 0.1 mm to 0.25 mm when recovered
- Material: Polyolefin
- Flammability: UL VW-1, CSA certified
- Color: Standard black
- Packaging: Spools
- Marking: UL, CSA, and Japan-F- markings on labels
Buy the Buy Raychem SWFR X4 Part Number X41200FSPSM Online
Enhance your electronic and wiring projects with Raychem heat-shrink tubing, designed for rapid shrinking, flame retardance, and environmental safety. Its ultra-thin wall ensures space-efficient insulation, ideal for delicate components. The tubing is UL and CSA recognized, certified for flame-retardancy, and offers quick recovery at 90°C. Suitable for a wide temperature range from -30°C to 125°C, this black tubing on spools allows for easy installation and reliable protection in demanding industrial environments. Purchase online for quick delivery and dependable quality.
Order your Raychem Series X4 X41200FSPSM heat-shrink tubing today and provide fast, flame-retardant insulation for your sensitive components.
