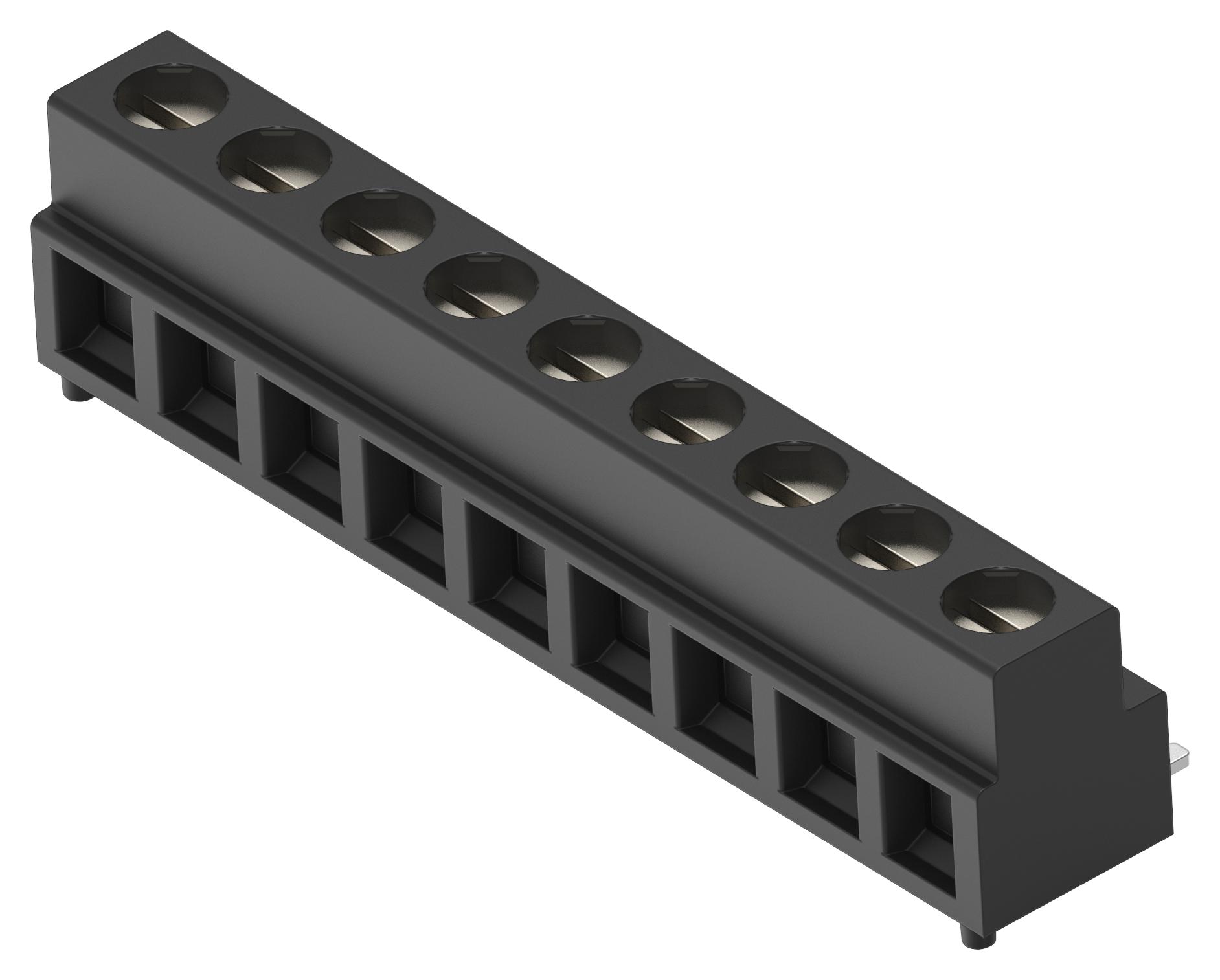

TE CONNECTIVITY 23839459 9 Position PCB Terminal Block
The TE Connectivity 2383945-9 is a PCB terminal block designed for robust wire-to-board connections. This header connector features 9 positions arranged in a single row, with a centerline of 3.81mm. It's engineered for side wire entry and accommodates wire sizes ranging from 28 to 16AWG. The block is stackable, allowing for increased density in your application. With a current rating of 12A and a voltage rating of 300VAC, it's suitable for both power and signal transmission in various industrial and commercial applications. It is RoHS compliant and operates effectively within a temperature range of -40 to 105 degrees Celsius.
TE CONNECTIVITY 23839459 9 Position PCB Terminal Block Specifications:
- Wire Protection: With
- Block Type: PCB Mount
- Terminal Block Connector Type: Header
- Connector System: Wire-to-Board
- Connector & Contact Terminates To: Printed Circuit Board
- Threaded Flange: Without
- Stacked Levels: Level 1
- Stacking Configuration: Side Stackable
- Number of Positions: 9
- Number of Rows: 1
- Wire Entry Angle: Side
- Current Rating (Max): 12 A
- Voltage Rating: 300 VAC
- Interlock: Without
- Color: Black
- Contact Mating Area Plating Material: Tin
- Contact Mount: Surface Mount
- Contact Base Material: Copper Alloy
- Contact Current Rating (Max): 12 A
- Screwless Terminal Block: No
- Mounting Angle: Vertical
- Screw Size: M2
- Screw Plating Material: Tin
- Screw Material: Copper Alloy
- Screw Flange: Without
- Connector Mounting Type: Board Mount
- Housing Color: Black
- Housing Material: High Temperature Polyamide
- Wire Size: .08 – 1.31 mm²
- Operating Temperature Range: -40 – 105 °C
- Circuit Application: Power & Signal
- Packaging Method: Tape & Reel
- Packaging Quantity: 300
- Centerline (Pitch): 3.81 mm[.15 in]
