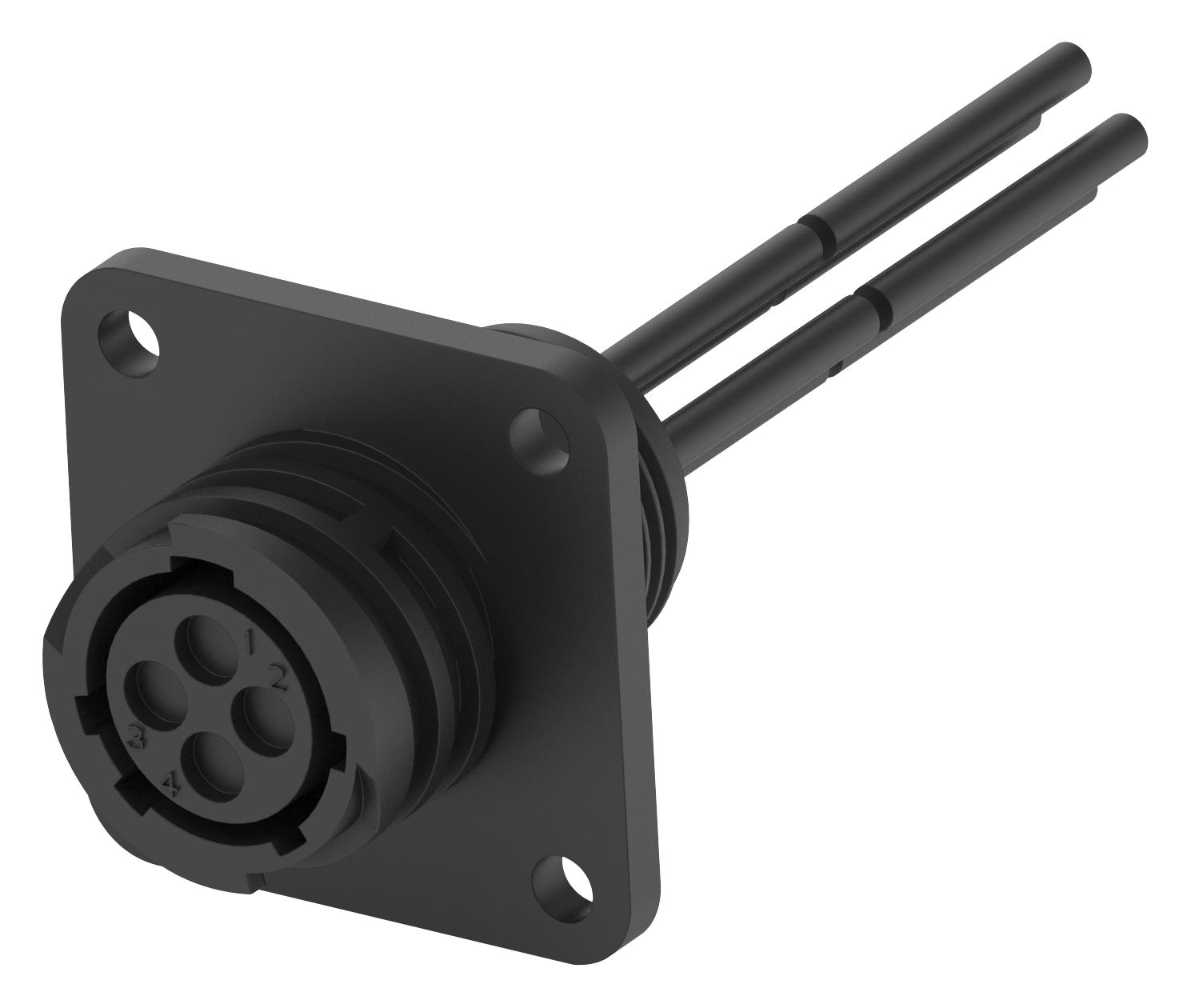

TE CONNECTIVITY 23869081 Circular Plastic Connector Cable
TE Connectivity's Circular Plastic Connector (CPC) cable assemblies provide a rugged and cost-effective solution for power input and output to various devices. Designed for rapid prototyping, these assemblies reduce installation time and meet harsh environment requirements. Featuring thermoplastic material, built-in pin and socket protection, and removable contacts, CPC cable assemblies are ideal for industrial machinery, control cabinets, rail and transit systems, HVAC equipment, and communication equipment. They offer safety measures with heat-resistant, self-extinguishing material and are available in standard and high-density configurations.
TE CONNECTIVITY 23869081 Circular Plastic Connector Cable Specifications:
- Series: Series 2
- Size: 11 to 8
- Type: REV
- Plug: 2386906
- Description: CPC Plug Connector Cable
- Receptacle: 2386908
- Description_Receptacle: CPC Square Flange Receptacle Connector Cable
- Operating_temperature: -55 to 105°C
- Mating_cycles: 500 max (gold or silver), 250 cycles (tin)
- Series_1_signals: up to 13A, 600V
- Series_2_signals: signal only, 250V
- Contact_material: Copper alloy with stainless steel retention spring
- Plating: Gold over palladium-nickel over nickel plating (mating area), tin over nickel plating (wire crimp area)
- Housings: Heat resistant thermoplastic
- Product_specification: 108-10024 connectors, 108-10042 contacts
- Application_specification: 114-10038
Buy the 2386908-1 TE CONNECTIVITY Circular Plastic Connector Cable | myMectronic
Purchase the TE Connectivity 2386908-1 CPC Cable Assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23869081?
You can click on the BUY or RFQ button to purchase 23869081 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23869081?
You can download the 23869081 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23869081?
TE CONNECTIVITY
