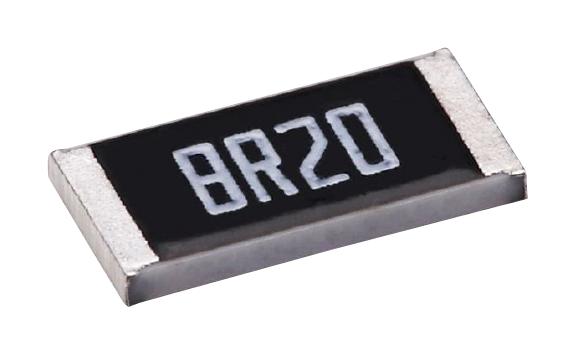

TE CONNECTIVITY RP73PF1E16K5BTDF High Power Precision Resistor
The RP73PF1E16K5BTDF series offers high precision SMD thin film resistors suitable for industrial, medical, and communication applications. Featuring tight tolerance down to 0.05% and low TCR of ±20ppm/°C, these resistors support power ratings up to 0.1W and operate reliably at voltages up to 50V. Constructed on alumina substrates with Ag and NiCr electrodes, they provide excellent stability and environmental resistance, ideal for demanding circuit design and precision control in professional electronics and instrumentation.
TE CONNECTIVITY RP73PF1E16K5BTDF High Power Precision Resistor Specifications:
- Size: 0603
- Rated Power @ 70°C: 0.1W
- Resistance Range: 10Ω to 255KΩ
- Tolerance: ±0.05%
- TCR: ±20ppm/°C
- Max. Operating Voltage: 50V
- Max Overload Voltage: 100V
- Operating Temperature: -55°C to +155°C
- Insulation Resistance: >1000MΩ
- Stability: 0.5%
- Construction: Alumina substrate with NiCr electrodes
- Dimensions: 1.55mm x 0.8mm x 0.45mm
- Protection: Epoxy overcoat
Buy the TE RP73PF1E16K5BTDF – Reliable High Power Precision Resistors for Industrial Applications
Order TE RP73PF1E16K5BTDF resistors online today and benefit from their high precision, low TCR, and excellent stability. These resistors are perfect for demanding industrial, medical, and communication applications where reliability, accuracy, and environmental resistance are critical. With a power rating of 0.1W at 70°C and resistance ranges from 10Ω to 255KΩ, they are suitable for precision control and circuit stabilization. Shop now for fast delivery and trusted performance in your electronic projects.
Buy TE RP73PF1E16K5BTDF high precision resistors now and ensure accurate, stable performance in your industrial, medical, or communication electronics.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY RP73PF1E16K5BTDF?
You can click on the BUY or RFQ button to purchase RP73PF1E16K5BTDF from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part RP73PF1E16K5BTDF?
You can download the RP73PF1E16K5BTDF datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of RP73PF1E16K5BTDF?
TE CONNECTIVITY
