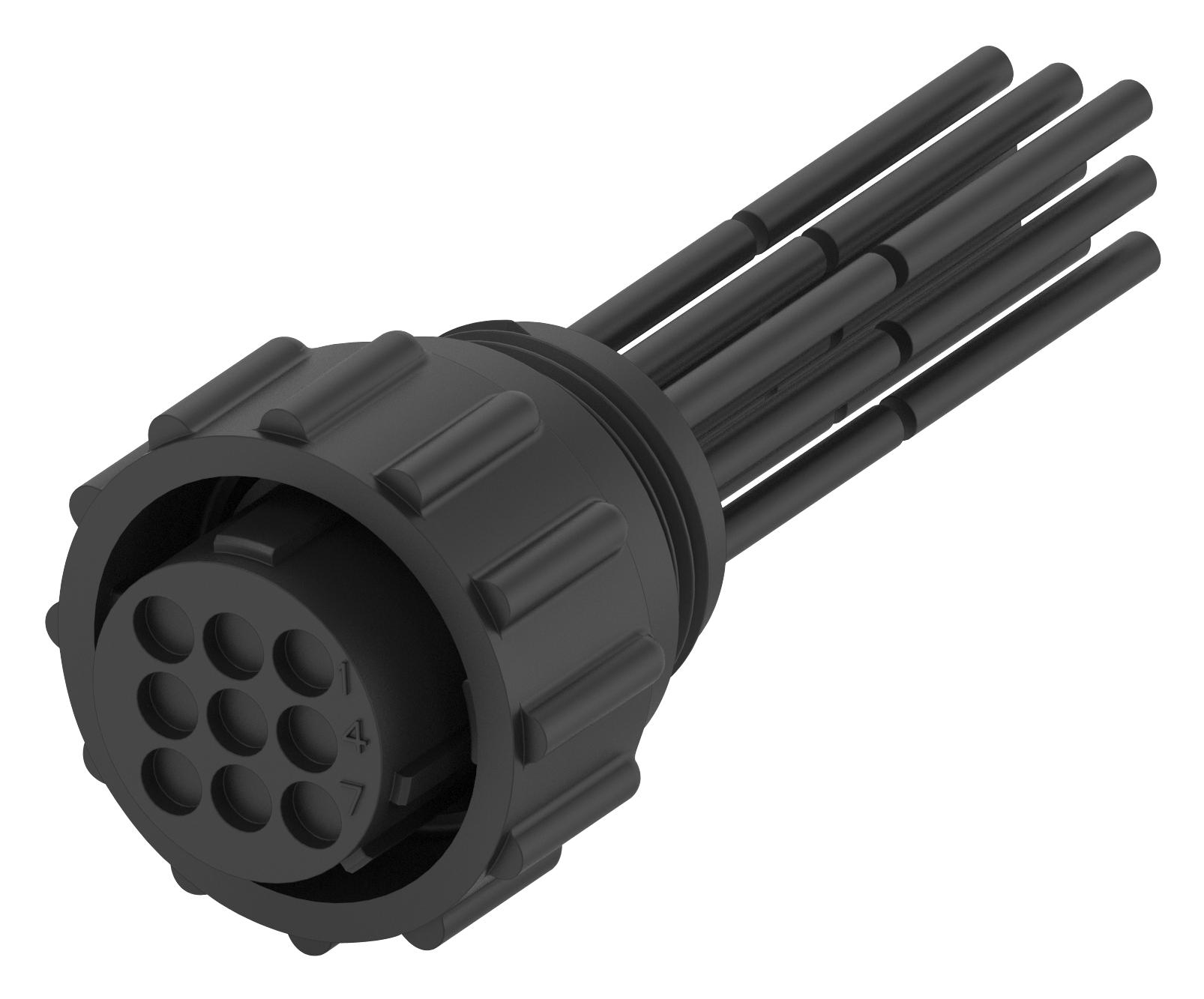

TE CONNECTIVITY 23871161 Circular Plastic Connector Cable
TE Connectivity's Circular Plastic Connector (CPC) cable assemblies provide a rugged and cost-effective solution for power input and output to various devices. Designed for rapid prototyping, these assemblies reduce installation time and meet harsh environment requirements with their IP65/57 rating. Constructed with heat-resistant thermoplastic and featuring removable contacts, CPC assemblies are ideal for industrial machinery, control cabinets, rail and transit systems, HVAC equipment, and communication equipment. They offer built-in pin and socket protection and are available in standard and high-density configurations.
TE CONNECTIVITY 23871161 Circular Plastic Connector Cable Specifications:
- Series: Series 1
- Size: 13 to 9
- Type: STD
- Plug: 2386907
- Description: CPC Plug Connector Cable
- Receptacle: 2386899
- Receptacle_Description: CPC Free Hanging Receptacle Connector Cable
- Operating_temperature: -55 to 105°C
- Mating_cycles: 500 max (gold or silver), 250 cycles (tin)
- signals_up_to: 13A, 600V
- signal_only: 250V
- contacts_housing_components: UL recognized, CSA certified
- housing_material: Heat resistant thermoplastic
- contact_material: Copper alloy with stainless steel retention spring
- plating_mating_area: Gold over palladium-nickel over nickel
- plating_wire_crimp_area: Tin over nickel
- product_specification: 108-10024, 108-11024 and 108-10024-3, 108-10024 and 108-10024-4
- application_specification: 114-10038
Buy the 2387116-1 TE CONNECTIVITY Circular Plastic Connector Cable | myMectronic
Purchase the TE Connectivity 2387116-1 CPC Cable Assembly securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 23871161?
You can click on the BUY or RFQ button to purchase 23871161 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 23871161?
You can download the 23871161 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 23871161?
TE CONNECTIVITY
