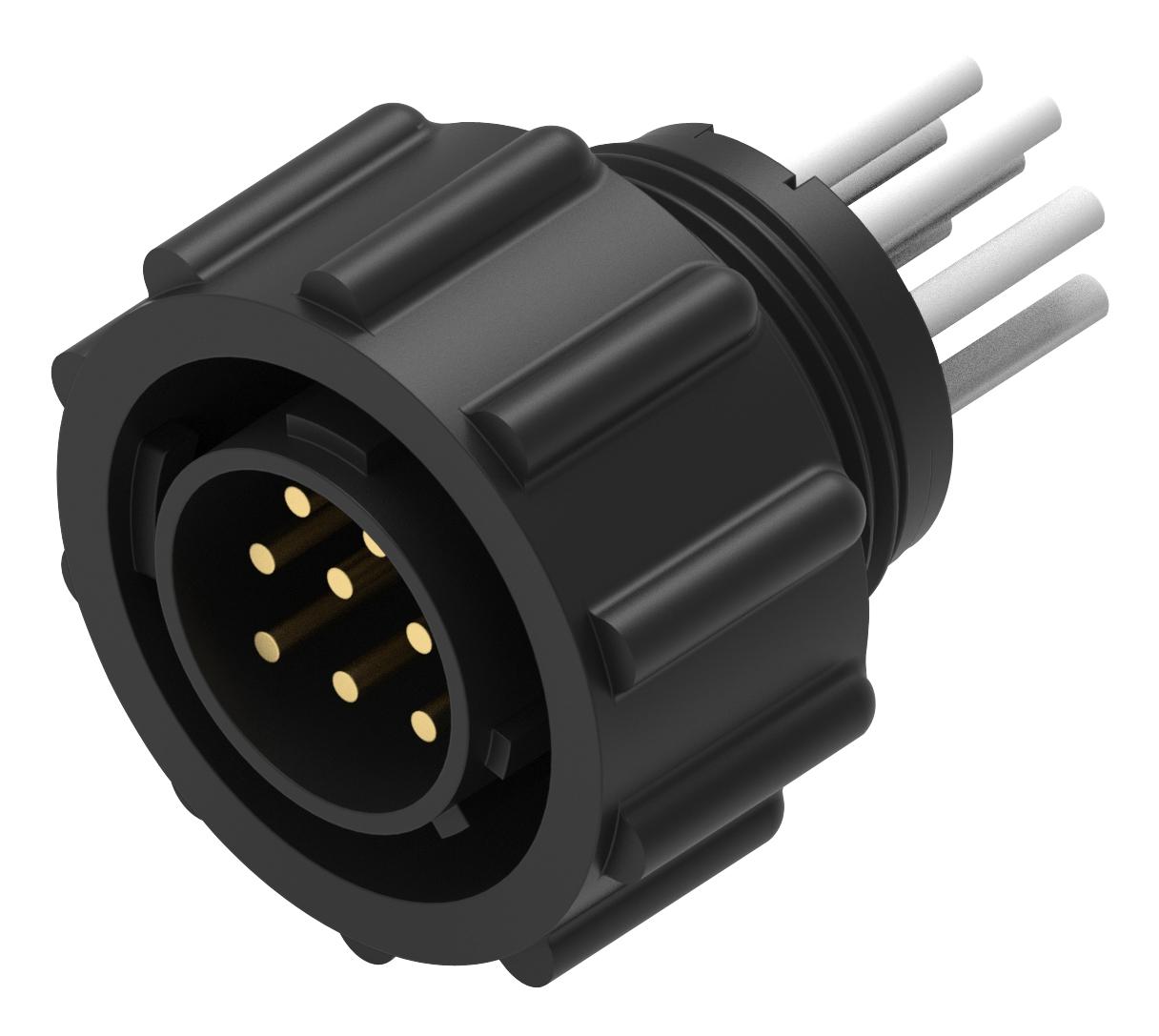

TE CONNECTIVITY 23871311 Circular Plastic Connector Cable
The TE Connectivity CPC cable assemblies are robust connectors designed to provide power input and output to a wide range of devices. They offer a cost-effective solution for applications requiring rapid prototyping, space-saving designs, and high-performance materials. With an IP65/57 rating, these assemblies are well-suited for harsh environments. They are widely used in industrial machinery, control cabinets, rail and transit systems, HVAC equipment, and communication equipment. The CPC cable assemblies are available in standard and reverse sex configurations, offering flexibility in design and assembly.
TE CONNECTIVITY 23871311 Circular Plastic Connector Cable Specifications:
- Series: Series 2
- Size: 11 to 8
- Type: REV
- Plug: 2387131
- Description: CPC Plug Connector Cable
- Receptacle: 2387132
- Description_Receptacle: CPC Square Flange Receptacle Connector Cable
- Operating_temperature: -55 to 105°C
- Mating_cycles: 500 max (gold or silver), 250 cycles (tin)
- Series_1_signals: up to 13A, 600V
- Series_2_signals: signal only, 250V
- Contacts_housing_components: UL recognized, CSA certified
- Housings: Heat resistant thermoplastic
- Contacts_material: Copper alloy with stainless steel retention spring
- Plating: Gold over palladium-nickel over nickel plating (mating area), tin over nickel plating (wire crimp area)
- Product_specification: 108-10024 connectors, 108-10042 contacts
- Application_specification: 114-10038
