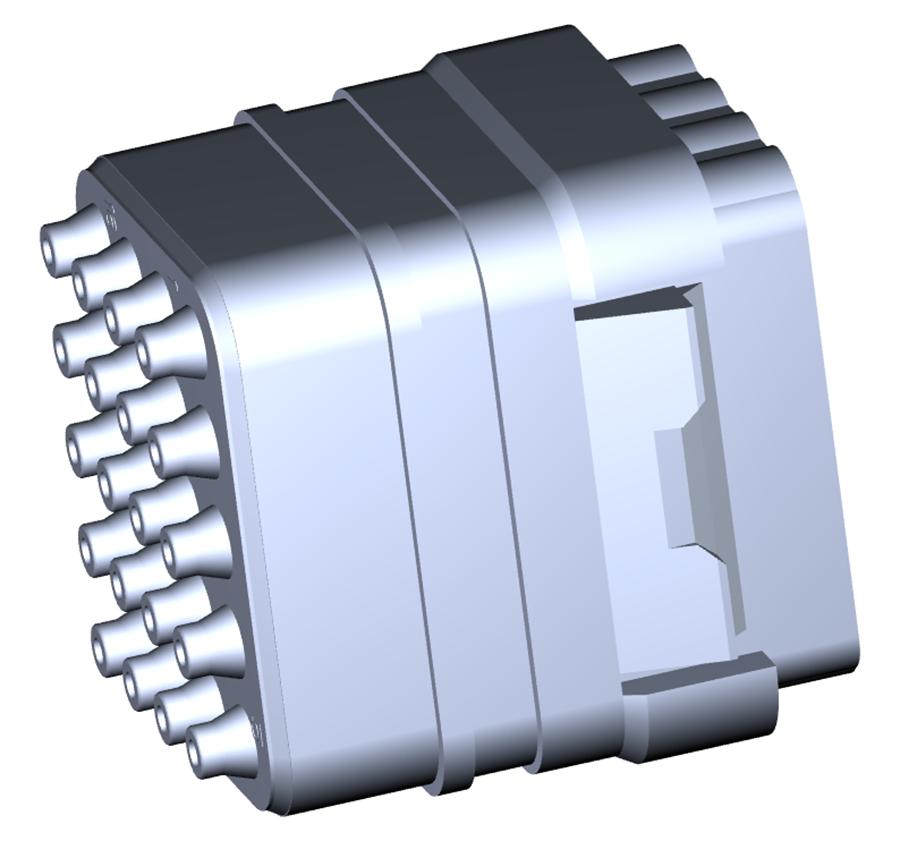

TE CONNECTIVITY DMCM2022PN Multicavity Aerospace Connector
The Deutsch DMC-M Series multicavity connectors are rugged, modular solutions designed for aerospace, defense, and marine applications. These connectors offer high reliability, environmental durability, and flexibility with options for aluminum or composite shells, fiber optics, and various modular configurations. Suitable for rugged aerospace environments, they support multiple signal and power contacts, feature EMI shielding, and have a durable design with up to 500 mating cycles. Their modularity permits mixing male and female modules, making installation and maintenance straightforward. Certified to EN4165 standards, these connectors adapt easily to complex aerospace and defense systems, ensuring secure, space-saving, lightweight, and high-performance connectivity.
TE CONNECTIVITY DMCM2022PN Multicavity Aerospace Connector Specifications:
- Material: Shell - Aluminum alloy or composite with electroless nickel or olive drab cadmium finish
- Module Material: Thermoplastic and fluorinated silicone
- Contact Material: Copper alloy, gold-plated over nickel
- Operating Temperature Range: -55°C to +175°C
- Durability: 500 mating cycles
- Contact Retention Force: Size 24 - 2.7 daN, Size 23 - 4.5 daN, Size 22 - 4.5 daN, Size 20 - 9.0 daN, Size 16 - 11.0 daN, Size 12 - 13.0 daN, Size 08 - 15.6 daN
- Salt Spray Resistance: Aluminum cadmium - 500 hours, Nickel finish - 96 hours, Composite nickel - 500 hours
- Electrical Withstand Voltage: Up to 1500 Vrms, insulation resistance ≥ 25,000 MΩ at sea level
- Current Ratings: Size 24 - 3 A, Size 20 - 75 A, Size 16 - 13 A, Size 12 - 23 A, Size 08 - 46 A
- Shielding Effectiveness: Attenuation from 37 dB at 4,000 MHz to 75 dB at 50 MHz
Buy the Buy TE Connectivity DMC-M Series Multicavity EN4165 Connector Part Number DMCM2022PN Online
Secure your aerospace, defense, or marine systems with TE Connectivity's DMC-M Series multicavity connectors. These lightweight, modular, and EN4165-compliant connectors offer high reliability, environmental durability, and flexibility with options for aluminum or composite shells, fiber optics, and diverse modular configurations. Designed for harsh conditions, they support power and signal contacts, EMI shielding, and easy assembly. With up to 500 mating cycles, their space-saving architecture ensures secure, efficient, and lightweight connectivity essential for critical aerospace applications. Buy online today to meet your demanding project needs with trusted quality.
Order your TE Connectivity DMC-M Series multicavity connector today and ensure your aerospace, defense, or marine project gets dependable, modular connectivity.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY DMCM2022PN?
You can click on the BUY or RFQ button to purchase DMCM2022PN from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part DMCM2022PN?
You can download the DMCM2022PN datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of DMCM2022PN?
TE CONNECTIVITY
