TE CONNECTIVITY 28252602 High Current Connector

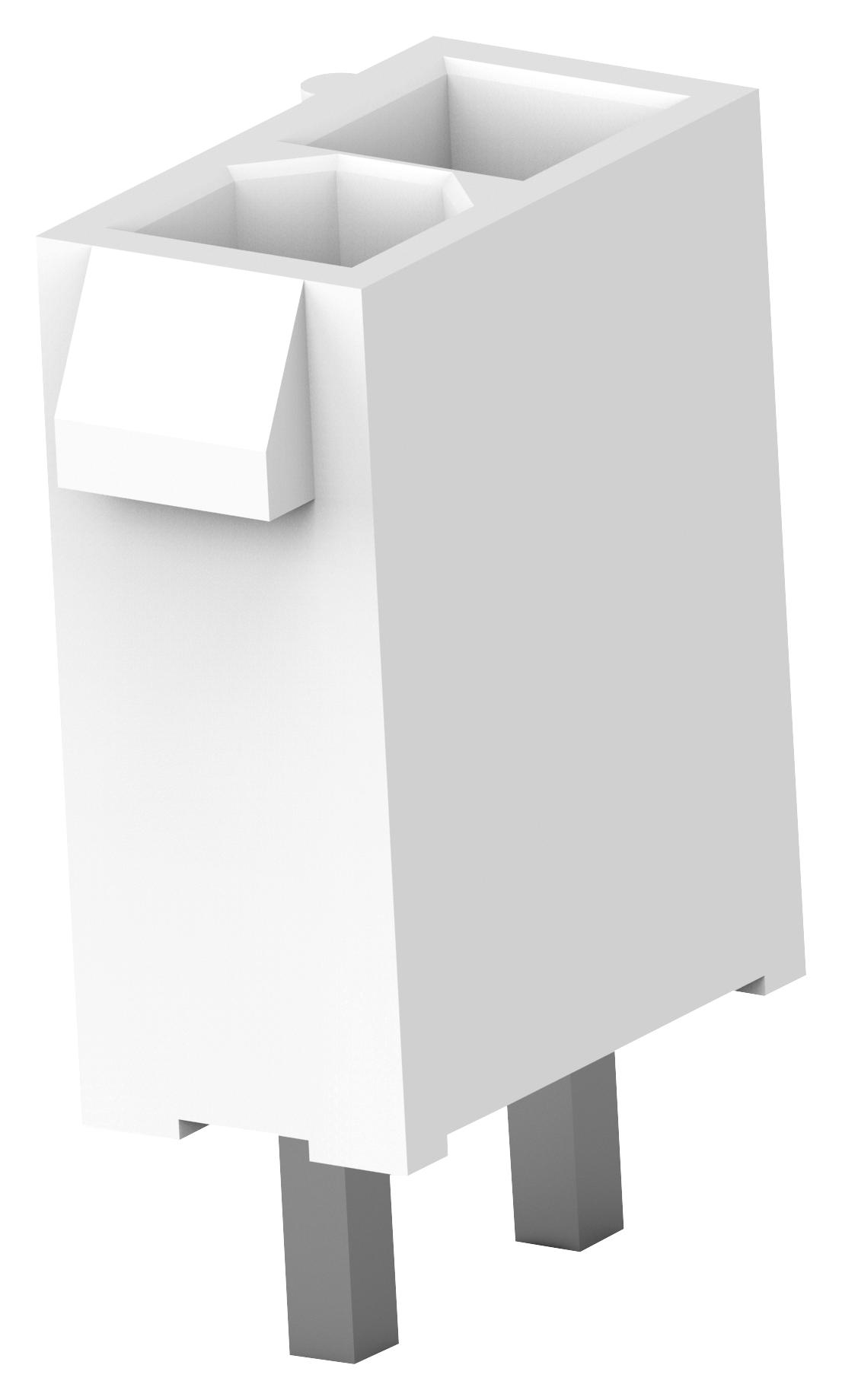

High current VAL-U-LOK connectors rated up to 13A provide reliable, high-current connections suitable for industrial, automotive, medical, lighting, and security applications. These vertical headers are designed with optional polarization pegs and drain holes to prevent incorrect orientation and ensure secure connections on PCBs. Compliant with UL 94 V-0 and Glow Wire Test (750°C), they are compatible with existing housings and offer high conductivity socket and pin contacts for wire-to-wire and wire-to-board configurations. Available in various sizes with features supporting safety and durability standards.
TE CONNECTIVITY 28252602 High Current Connector Specifications:
- Rated current: up to 13A
- Centerline spacing: 4.2 mm
- Flammability: UL 94 V-0 and Glow Wire Test (750°C)
- Contact types: high conductivity socket and pin contacts
- Available in sizes: 2, 4, 6, 8, 10, 12, 20, 24 positions
- Material: V-0 rated for UL 94, with optional GWT/V-2 or V-O flammability
- Compatibility: same tooling as legacy 9A contacts, suitable for wire-to-wire and wire-to-board
- Features: optional polarization pegs, drain holes, GWT/UL94 compliant
- Applications include industrial machinery, automotive, medical devices, lighting, security systems, and networking
- Standards: UL Recognized, File #E28476, Application specs #114-13172.
Buy the TE Connectivity 28252602 – Reliable High Current Connectors for Industrial Applications
Purchase TE Connectivity high current VAL-U-LOK connectors online today to ensure robust, high-current connections vital for industrial machinery, automotive, lighting, and security systems. Our connectors feature UL 94 V-0 and Glow Wire Test compliance, offering safety and durability. With options including polarization pegs, drain holes, and various sizes, they fit a wide range of applications. Backed by reliable standards and easy compatibility with existing housings and tooling, these connectors guarantee performance and safety in critical environments — order now for seamless integration and dependable operation.
Buy TE Connectivity high current VAL-U-LOK connectors now and experience unmatched reliability and secure high-current connections for demanding industrial and automotive environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28252602?
You can click on the BUY or RFQ button to purchase 28252602 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28252602?
You can download the 28252602 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28252602?
TE CONNECTIVITY
