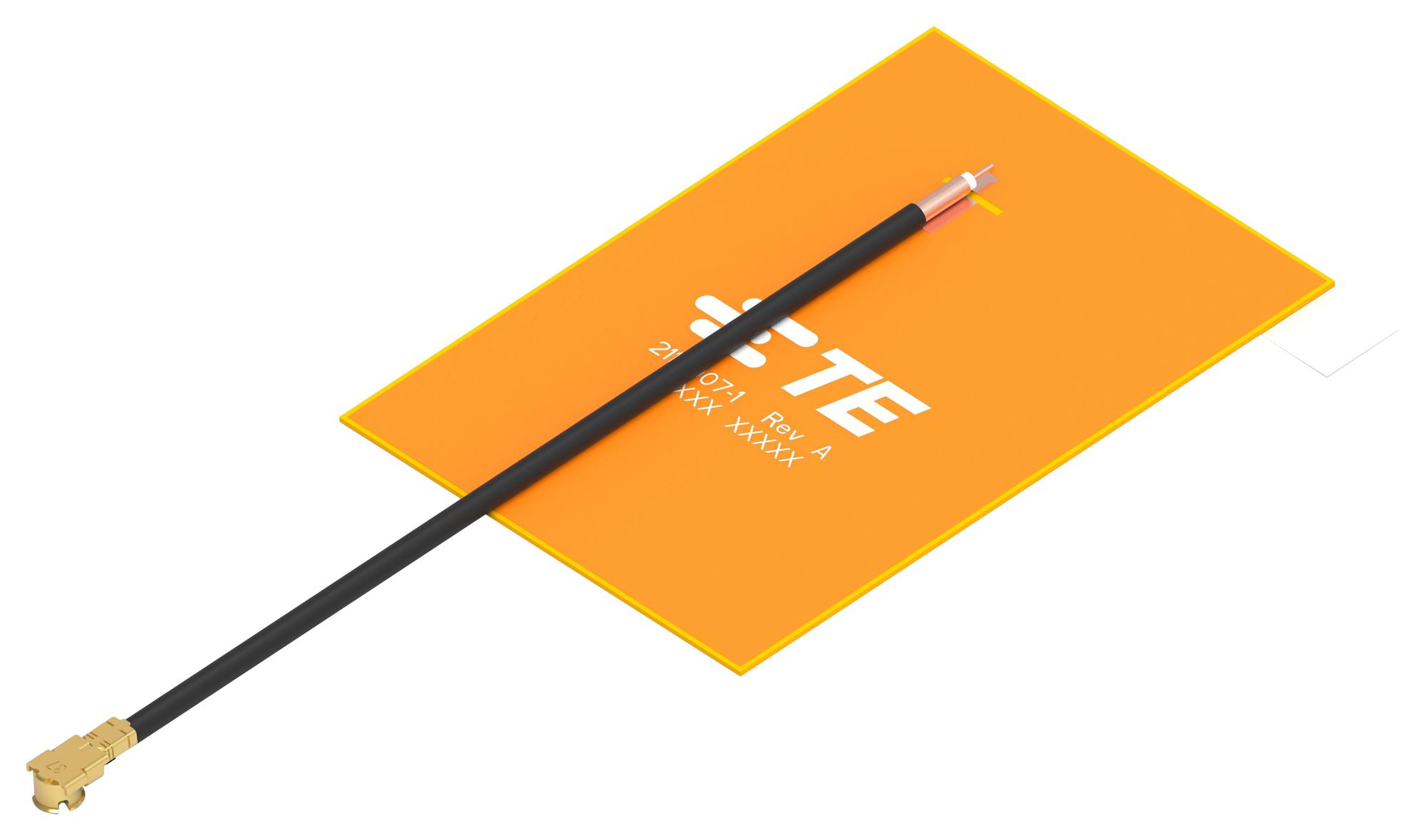

TE CONNECTIVITY 21189071 Wi-Fi Antenna
The Wi-Fi 6/6E triple band embedded antenna offers reliable wireless connectivity across multiple frequency bands, including the new 6GHz band introduced with Wi-Fi 6E. Designed for seamless integration within devices, it features a compact size of 29.60 mm x 41.24 mm x 0.34 mm and a weight of less than 3.3 grams. The antenna supports high efficiency with peak gains of up to 5.3dBi and a power handling capacity of 10 Watts. Its adhesive-backed flexible PCB simplifies installation, making it ideal for industrial, IoT, and consumer electronic applications needing robust wireless coverage.
TE CONNECTIVITY 21189071 Wi-Fi Antenna Specifications:
- Frequency Range: 2400-2483.5 MHz, 5150-5875 MHz, 5925-7125 MHz
- VSWR: <1.5:1 at 2400-2483.5 MHz, <2.0:1 at other bands
- Average Efficiency: 65% (2.4 GHz), 65% (5 GHz), 70% (6 GHz)
- Peak Gain: 2.9dBi (2.4 GHz), 4.8dBi (5 GHz), 5.3dBi (6 GHz)
- Average Gain: -1.9dBi (2.4 GHz), -1.9dBi (5 GHz), -1.6dBi (6 GHz)
- Power Handling: 10 Watts CW
- Feed Point Impedance: 50 ohms unbalanced
- Polarization: Linear
- Size: 29.60 mm x 41.24 mm x 0.34 mm
- Weight: <3.3g
- Mounting: Adhesive tape
- Mating Connector: MHF-type receptacle (TE PN 2337019-1)
- Cable: Coaxial, 1.13 mm diameter
- Operating & Storage Temperature: -40°C to +85°C
Buy the TE Connectivity 2118907 – Reliable Wi-Fi 6/6E Triple Band Embedded Antenna for Industrial Applications
Order the TE Connectivity Wi-Fi Antenna now to enhance device connectivity with a compact, triple band design supporting Wi-Fi 6 and 6E. Its flexible PCB and adhesive backing facilitate easy installation inside industrial, IoT, and consumer electronics, ensuring broad frequency coverage, high efficiency, and reliable performance. With a peak gain of up to 5.3dBi and a power capacity of 10 Watts, this antenna delivers excellent wireless coverage in demanding applications. Purchase online today for quick delivery and robust wireless connectivity solution.
Get TE Connectivity 2118907 today—built for precision and long-lasting durability in wireless device solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 21189071?
You can click on the BUY or RFQ button to purchase 21189071 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 21189071?
You can download the 21189071 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 21189071?
TE CONNECTIVITY
