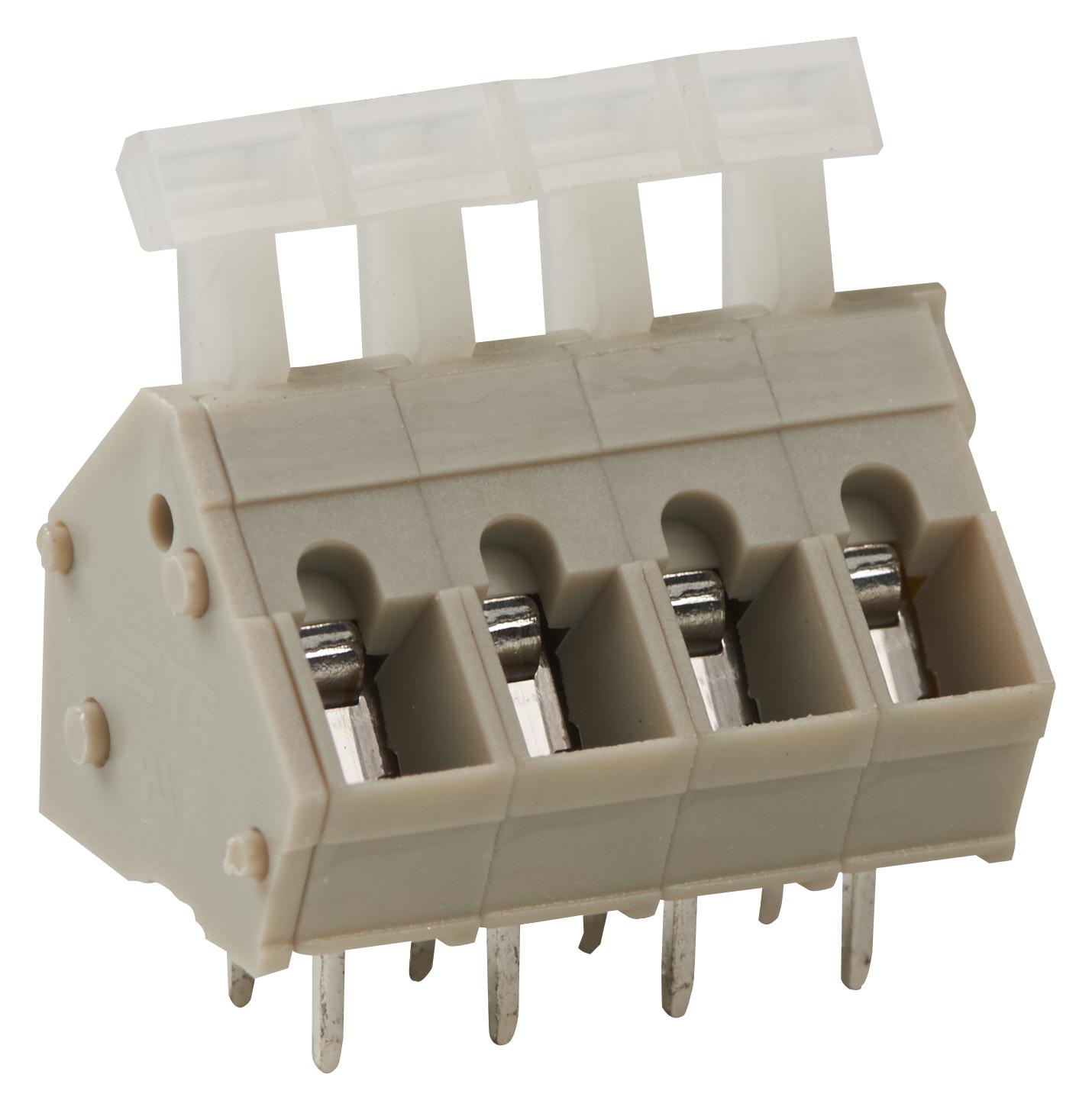

TE CONNECTIVITY 28340761 Modular Screwless Terminal Block
TE Connectivity's Modular Screwless Terminal Blocks are designed for efficient and flexible wire management in a variety of applications. These blocks eliminate the need for special tooling during assembly, saving time and effort. Their compact design maximizes space utilization, while the multifarious product pitch allows for design flexibility. Different color configurations simplify identification, making them ideal for telecommunication systems, lighting systems, security applications, and wire arrangement architectures. They are suitable for LED drivers and power supplies.
TE CONNECTIVITY 28340761 Modular Screwless Terminal Block Specifications:
- Current Rating: Up to 10 A Max
- Voltage Rating: 300 VAC Max
- Dielectric Strength: 2000 VAC
- Operating Temperature: -40°C-+105°C
- Reusable Cycles: 5 cycles
- Application Specification: 114-137080
- Product Specification: 108-137080
- UL Approval: UL1059
- Housing Material: PA, UL 94 V-0
- Contact Material: Copper Alloy with Tin plating
Buy the 2834076-1 TE CONNECTIVITY Modular Screwless Terminal Block | myMectronic
Securely purchase the TE Connectivity 2834076-1 Modular Screwless Terminal Block online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28340761?
You can click on the BUY or RFQ button to purchase 28340761 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28340761?
You can download the 28340761 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28340761?
TE CONNECTIVITY
