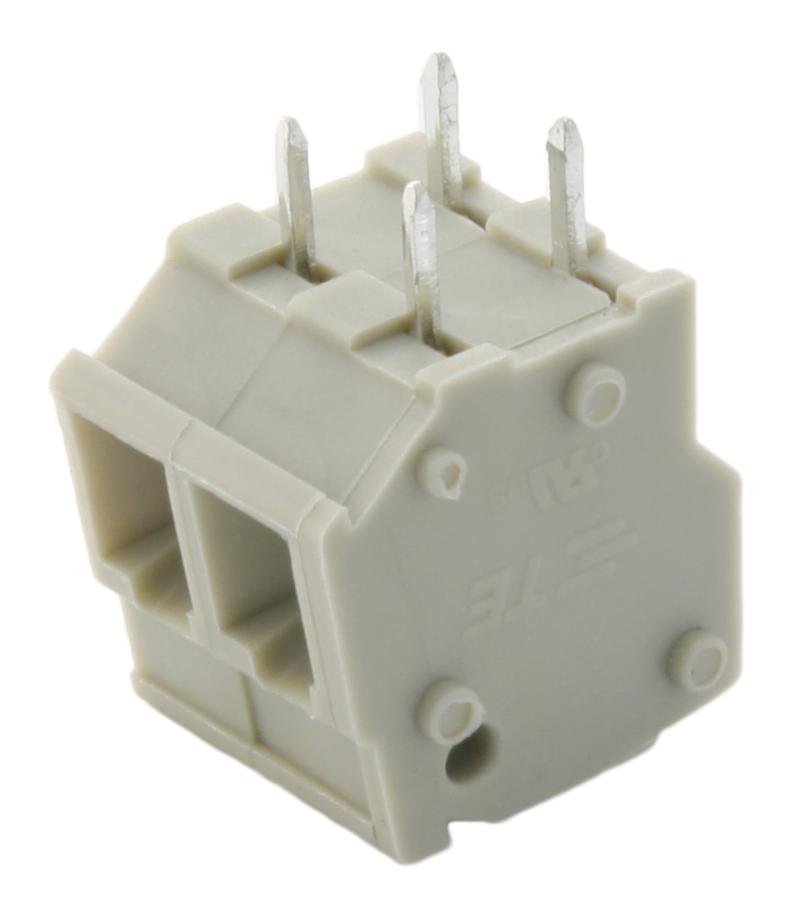

TE CONNECTIVITY 28340801 Modular Screwless Terminal Block
TE Connectivity's Modular Screwless Terminal Blocks provide a flexible and efficient solution for various applications. Their design eliminates the need for special tooling, enabling quick assembly and easy wire replacement. The multifarious product pitch allows for design flexibility, while different color configurations simplify identification. These blocks are well-suited for telecommunication systems, lighting systems, security applications, and wire arrangement architectures, offering a compact and high-density design to save space.
TE CONNECTIVITY 28340801 Modular Screwless Terminal Block Specifications:
- Current Rating: Up to 10 A Max
- Voltage Rating: 300 VAC Max
- Dielectric Strength: 2000 VAC
- Operating Temperature: -40°C-+105°C
- Reusable Cycles: 5 cycles
- Application Specification: 114-137080
- Product Specification: 108-137080
- UL Approval: UL1059
- Housing Material: PA, UL 94 V-0
- Contact Material: Copper Alloy with Tin plating
Buy the 2834080-1 TE CONNECTIVITY Modular Screwless Terminal Block | myMectronic
Securely purchase the TE Connectivity 2834080-1 Modular Screwless Terminal Block online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28340801?
You can click on the BUY or RFQ button to purchase 28340801 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28340801?
You can download the 28340801 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28340801?
TE CONNECTIVITY
