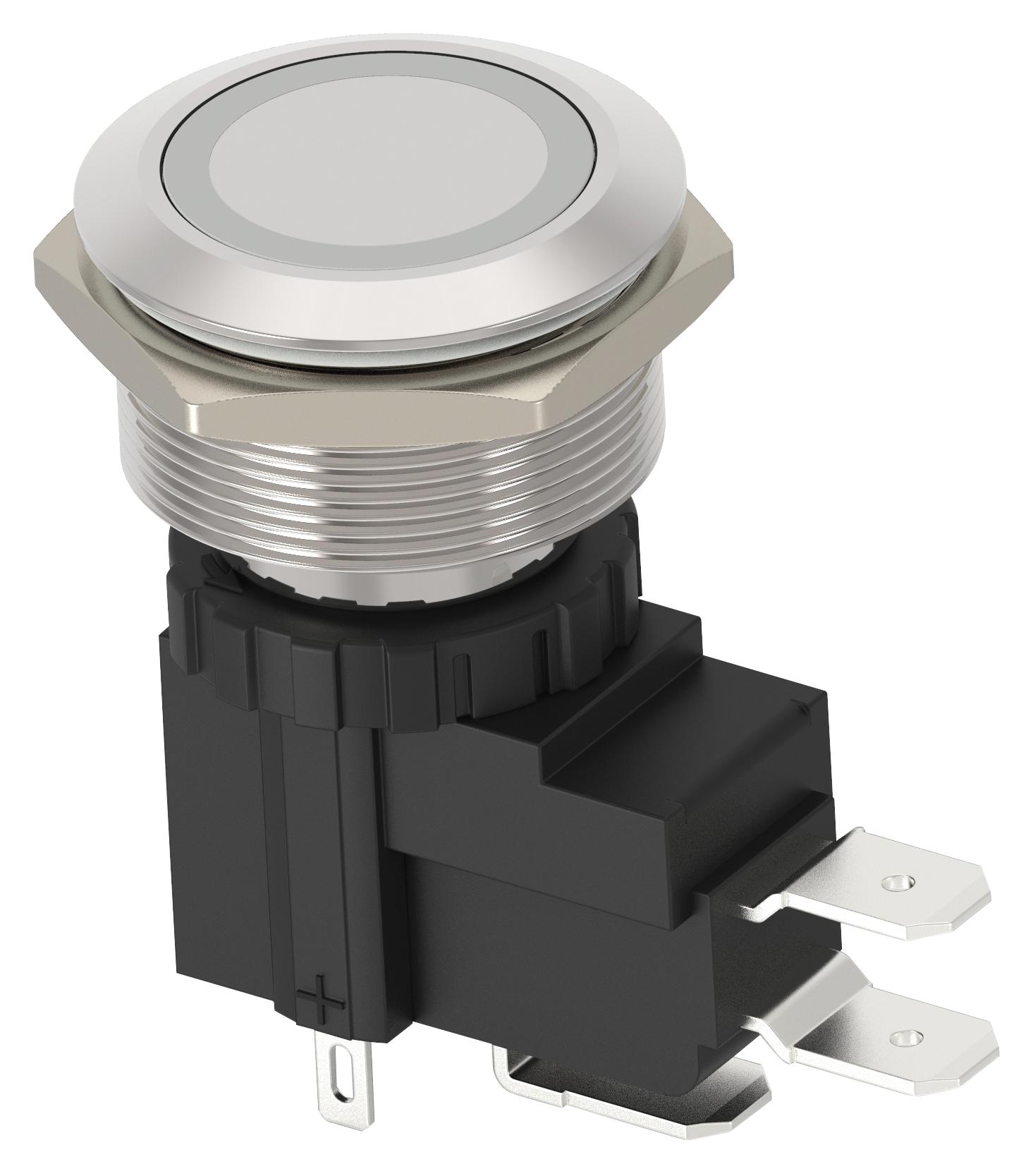

TE CONNECTIVITY AVH25LSSFE7122604 High Current Pushbutton Switch
The AVH Series Anti-Vandal High Current Pushbutton Switches are durable, high-quality switches designed for demanding applications across machinery, automotive, electronics, access control, shipping, medical, horticulture, and accessories. They feature contact ratings of 16A or 26A at 125/250VAC, customizable LED control options, and various actuator and bushing sizes, including 19mm, 22mm, and 25mm diameters. Sealed with silicone, these switches withstand harsh environments with an ingress protection rating of IP67, supporting mechanical and electrical longevity for reliable operation.
TE CONNECTIVITY AVH25LSSFE7122604 High Current Pushbutton Switch Specifications:
- Contact Rating: 16A or 26A at 125/250VAC
- Bushings Sizes: 19mm, 22mm, 25mm
- Panel Cut-out Diameters: 19.10mm, 22.20mm, 25.20mm
- Panel Thickness: Maximum 10.0mm
- LED Control: Multiple LED color options; No LED, Power Symbol, Ring, Ring + Power Symbol
- Sealing: Silicone
- Ingress Protection: IP67
- Operating Temperature Range: -25°C to 85°C
- Mechanical Life: 1,000,000 cycles
- Electrical Life: 10,000 cycles at 16A
- Actuator Travel: 3.2mm
- Operation Force: 3.5+1.5N
- Dimensions: 19mm, 22mm, 25mm bushings with respective diameters and mounting details
- Terminal Types: 16A or 26A rated terminals
- Compliance: UL Recognized
- Material: Stainless Steel body options available
- Switch Type: Momentary / Locking
- Environmental Resistance: Sealed with silicone for durability
Buy the Buy TE Connectivity AVH Series Anti-Vandal High Current Pushbutton Switches Part Number AVH25LSSFE7122604 Online
Order the TE Connectivity AVH Series high current anti-vandal pushbutton switch today for dependable performance in harsh environments. Available in 19mm, 22mm, and 25mm sizes with LED options, rated up to 26A at 125/250VAC, and sealed for IP67 protection. Whether you need momentary or locking operation, these switches offer exceptional durability with a mechanical life of 1 million cycles. Perfect for machinery, automotive, medical, and access control applications, buy online now for reliable, long-lasting performance.
Get TE Connectivity AVH25LSSFE7122604 today—built for precision, high current capacity, sealed protection, and long-lasting durability.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY AVH25LSSFE7122604?
You can click on the BUY or RFQ button to purchase AVH25LSSFE7122604 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part AVH25LSSFE7122604?
You can download the AVH25LSSFE7122604 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of AVH25LSSFE7122604?
TE CONNECTIVITY
