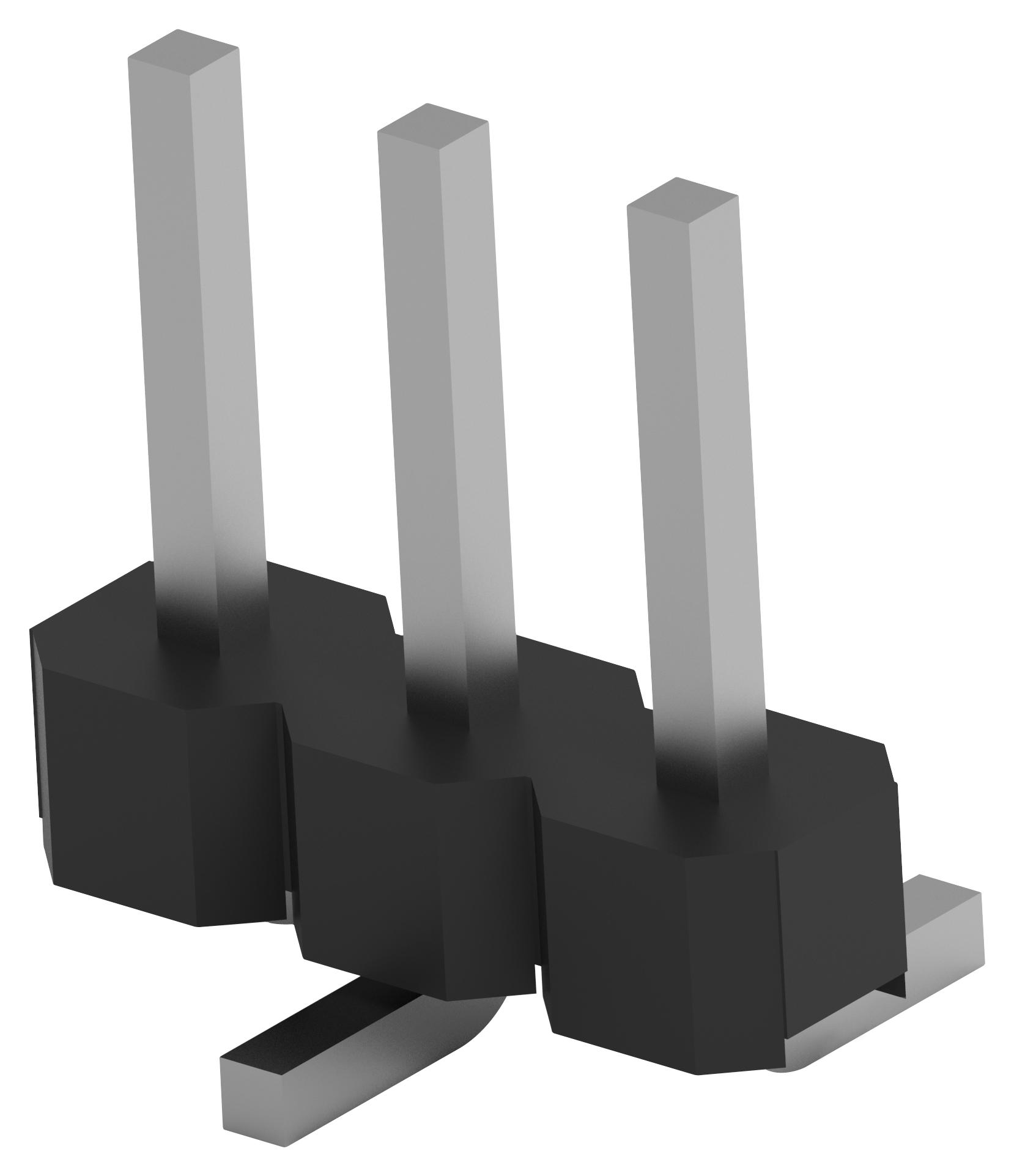

TE CONNECTIVITY 28421023 Breakaway Header
This high-performance breakaway header provides a space-saving, reliable connection solution for PCB assemblies in industrial automation, control systems, and instrumentation. Featuring a 2mm centerline with 0.50mm square contacts, it supports automated surface mount and through-hole reflow mounting. Constructed with brass contacts plated with up to 0.76μm gold or tin, it withstands operating temperatures from -40°C to 125°C and a dielectric voltage of 650VAC. Suitable for applications like PLCs, servo drives, and building automation, it offers versatile packaging options including bulk, tube, tape, and reel for efficient handling.
TE CONNECTIVITY 28421023 Breakaway Header Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Connector Size: 2-25 positions per row, available in single and double row
- PCB Thickness: 1.6mm to 2.4mm [0.063" to 0.094"]
- Operating Temperature: -40°C to 125°C
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Current Rating: 2A (max.)
- Plating: 0.76μm [30p"] Gold, 0.38μm [15u"] Gold, Tin
- Housing Material: High Temperature Plastic, UL 94VO
- Contact Material: Brass
- Reflow Solder Capable to 260°C
- RoHS & REACH Compliant
- Vibration resistance with no electrical discontinuity greater than UL certification
Buy the Buy TE Connectivity Breakaway Header Part Number 28421023 Online
Enhance your PCB assembly with TE Connectivity’s 2mm breakaway header, designed for space-efficient, reliable connections in automation and control systems. Suitable for automated surface mounting and reflow processes, it supports a wide range of applications in industrial controls, PLCs, and instrumentation. With versatile packaging options including bulk, tube, tape, and reel, this header ensures easy handling and installation. Made from high-temperature plastic with brass contacts plated with gold or tin, it withstands harsh environments while providing excellent electrical performance. Upgrade your PCB today with TE’s trusted connectivity solutions for optimal efficiency.
Buy TE Connectivity 28421023 now and experience unmatched reliability and performance in industrial PCB solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28421023?
You can click on the BUY or RFQ button to purchase 28421023 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28421023?
You can download the 28421023 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28421023?
TE CONNECTIVITY
