TE CONNECTIVITY 28421044 Industrial Connector

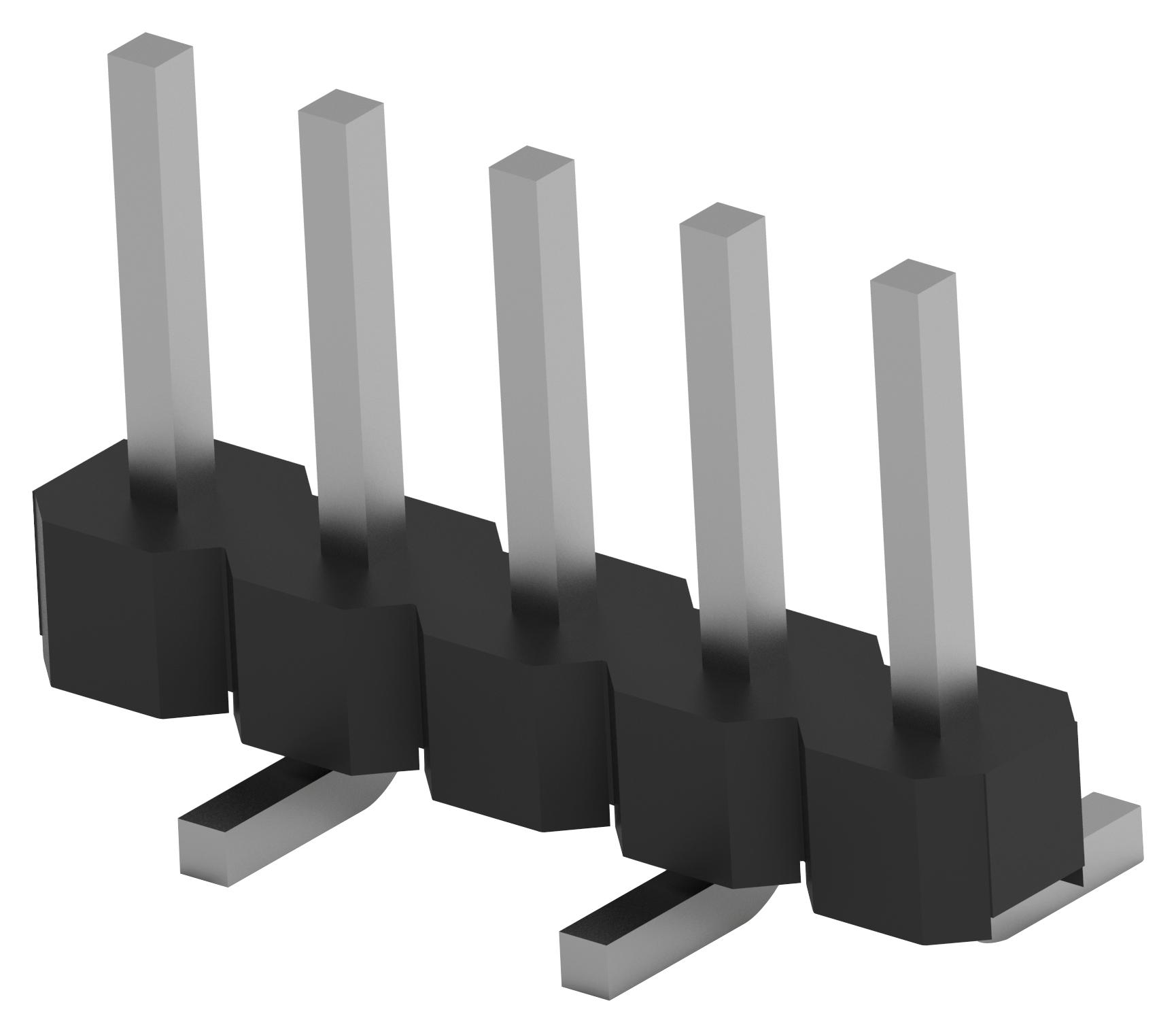

The TE Connectivity AMPMODU 2mm breakaway header is a compact, space-saving connector designed for industrial applications. It features a 2.00mm centerline, 0.50mm square pins, and is suitable for PCB thicknesses of 1.6mm to 2.4mm. This intermateable header withstands operating environments up to 125°C, supports a maximum current of 2A, and offers various packaging options including bulk, tube, tape, and reel. It is ideal for PCB assembly, automation, and control systems requiring reliable electrical connections and space-efficient design.
TE CONNECTIVITY 28421044 Industrial Connector Specifications:
- Centerline: 2.00mm
- Contact Dimension: 0.50mm square pins
- Connector Size: 2-25 positions per row, single and double row
- PCB Thickness: 1.6mm to 2.4mm
- Operating Environment: Class III
- Current Rating: 2A maximum
- Plating: 0.76um Gold, 0.38um Gold, Tin
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Housing Material: High Temperature Plastic (UL 94VO, Black)
- Contact Material: Brass
- Operating Temperature: -40°C to 125°C
- Reflow Solder Capability: Up to 260°C
- Compliance: ROHS & REACH
- Vibration Resistance: No electrical discontinuity greater than UL Certified standard
Buy the Buy TE Connectivity AMPMODU 2mm Breakaway Header Part Number 28421044 Online
Order the TE Connectivity AMPMODU 2mm breakaway header online today. Its compact design, reliable connections, and various packaging options make it ideal for PCB assembly, automation, and control systems. With a 2.0mm centerline, 2A current capacity, and high-temperature plastic housing, this connector ensures durability and space savings. Available in bulk, tube, tape, and reel, it supports automated surface mounting and through-hole reflow processes, simplifying manufacturing and enhancing product performance across diverse industrial applications.
Get TE Connectivity 28421044 today—built for space-efficient PCB connections in industrial automation and control systems.
