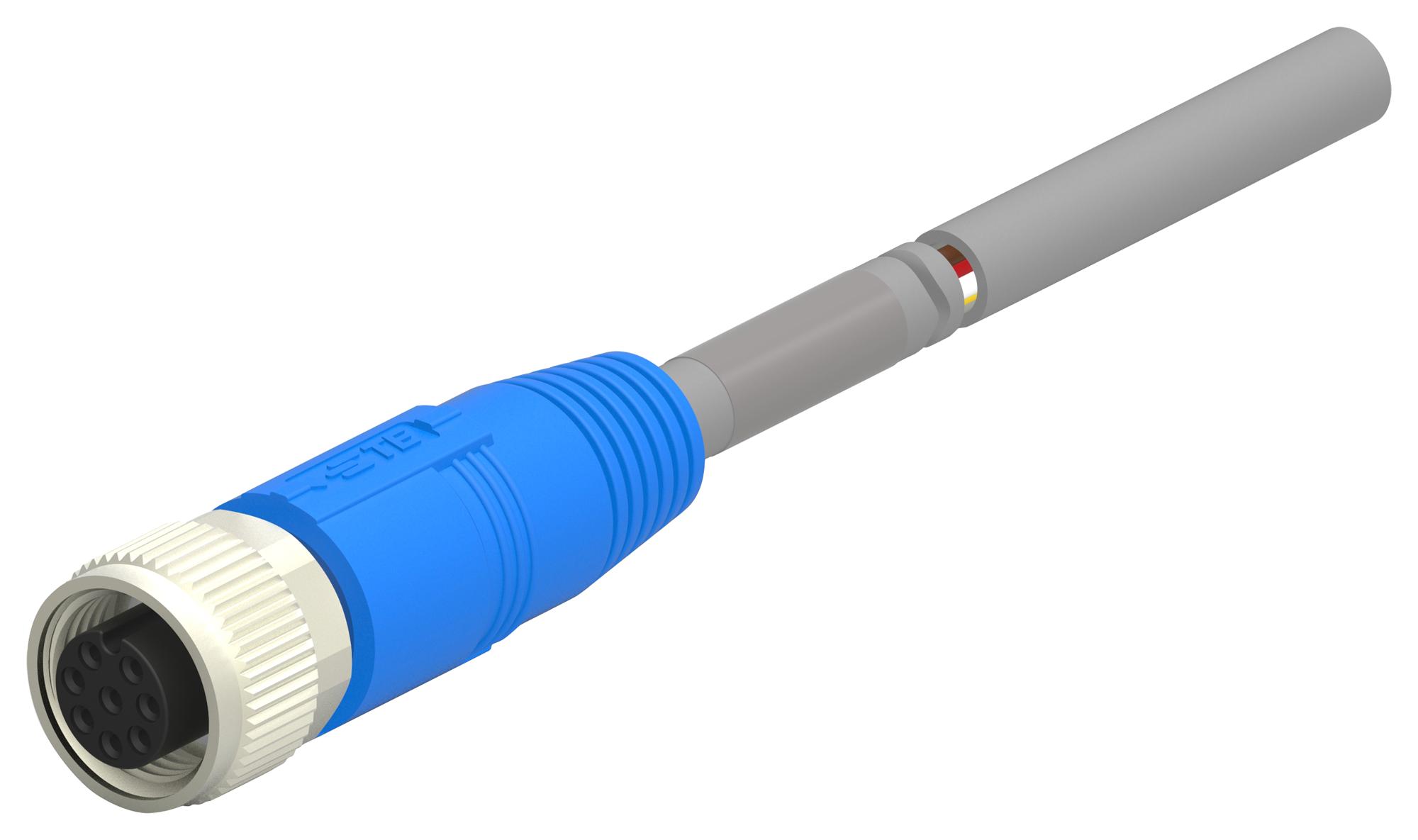

TE CONNECTIVITY T4151320004007 Sensor Cable Assembly
This M12 cable assembly supports sensor and actuator applications with a 4-position configuration, A keying, and straight receptacle design. Made with durable PVC insulation and a copper alloy conductor, it features a gray outer jacket, rated for 250 VDC. With a length of 10,000 mm (10 meters), it is suitable for industrial automation, offering reliable connections in industrial environments. Compliant with RoHS, REACH, and ELV directives, this assembly ensures safety and environmental standards are met, making it ideal for robust sensor and actuator connections.
TE CONNECTIVITY T4151320004007 Sensor Cable Assembly Specifications:
- Connector Type: Receptacle
- Assembly Type: Pigtail
- Cable Type: PVC Insulated Copper
- Number of Positions: 4
- Keying: A
- Cable Exit Angle: Straight
- Operating Voltage: 250 VDC
- Cable Jacket Color: Gray
- Wire Size: 22 AWG
- Cable Length: 10000 mm
- Application Type: Sensor/Actuator
- Environmental Protection: IP65 (implied by typical usage)
- Housing Material: GF Nylon
- Contact Current Rating: 4A
- Mechanical Attachment: Screw & Hole Thread
- Flammability: UL 94V-0
- Certifications: RoHS, REACH, ELV compliant
Buy the TE Connectivity T4151320004-007 – Reliable Sensor Cable for Industrial Applications
Discover the TE Connectivity sensor cable assembly, designed for industrial automation with 4 positions, A keying, and a straight receptacle. This high-quality cable features a PVC insulated copper conductor, rated for 250 VDC, with a length of 10 meters for versatile installation. Its durable construction and compliance with RoHS, REACH, and ELV standards guarantee safety and environmental responsibility. Ideal for sensor and actuator applications, this assembly provides reliable, robust connections essential for industrial environments. Order online today for dependable performance in your automation projects.
Order your TE Connectivity T4151320004-007 sensor/actuator M12 cable assembly today and ensure durable, reliable connections for your industrial projects.
