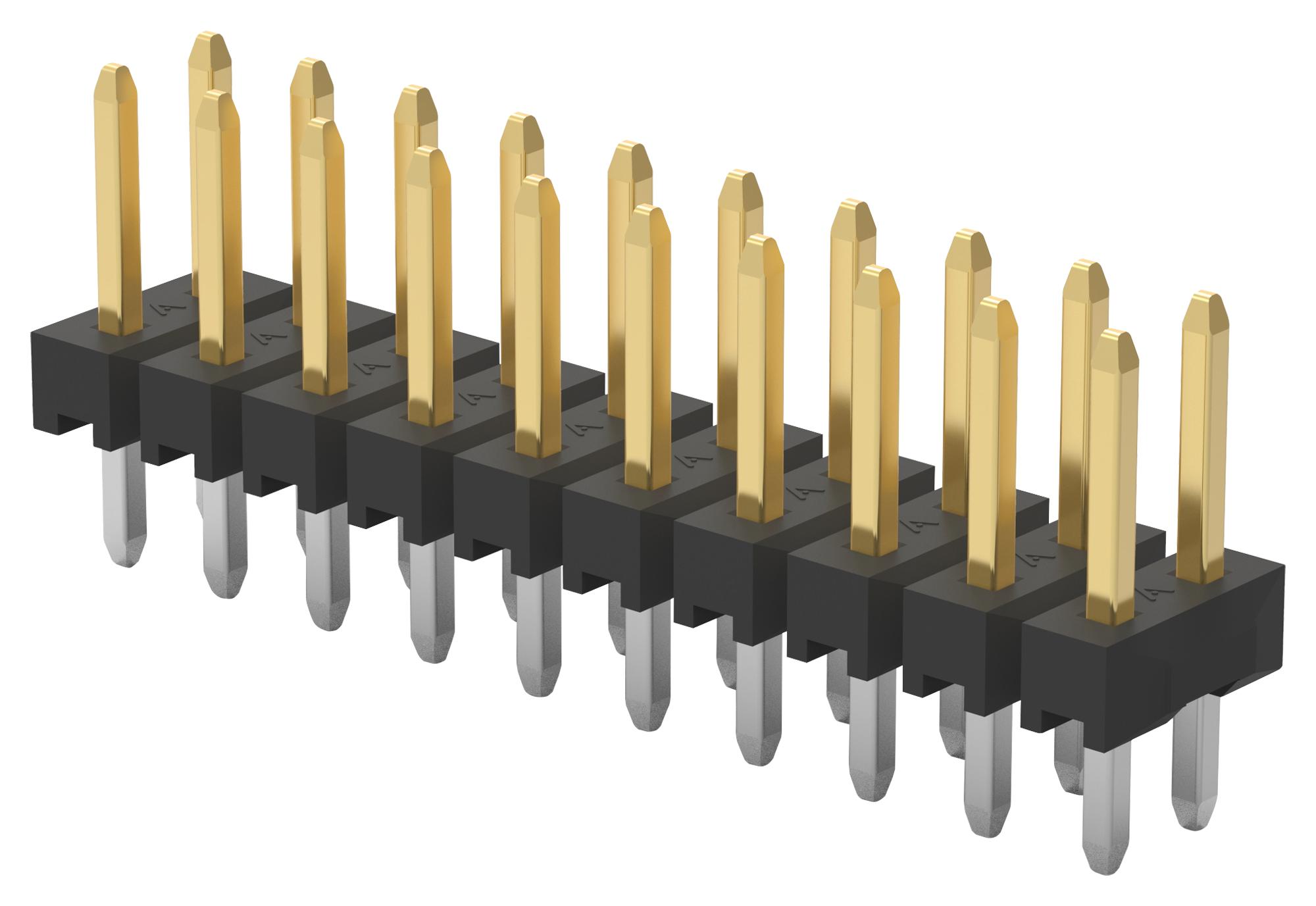

TE CONNECTIVITY 28421265 Breakaway Header
The TE Connectivity AMPMODU 2mm Breakaway Header is a space-efficient, reliable connector designed for industrial applications such as PLCs, servo drives, and automation systems. With a 2mm centerline and 0.50mm square pins, it supports up to 25 positions per row and is compatible with automated surface mounting processes. Made of high-temperature plastic, with brass contacts and gold or tin plating, it withstands operating temperatures from -40°C to 125°C, rated for 2A current and 650VAC dielectric voltage. The header’s versatile design enables PCB thicknesses from 1.6mm to 2.4mm, ensuring flexible assembly options.
TE CONNECTIVITY 28421265 Breakaway Header Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Connector Size: 2-25 positions per row, single or double row
- PCB Thickness: 1.6mm to 2.4mm [0.063” to 0.094”]
- Operating Temperature: -40°C to 125°C
- Current Rating: 2A (max.)
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Housing Material: High Temperature Plastic, UL 94VO, Black
- Contact Material: Brass
- Plating: 0.76um [30p"] Gold, 0.38um [15u"] Gold, Tin
- Reflow Solder Compatible: Up to 260°C
- Certifications: RoHS & REACH Compliant
- Vibration Resistance: No electrical discontinuity over UL standards
Buy the TE Connectivity 28421265 – Reliable Breakaway Header for Industrial Applications
Upgrade your industrial automation and PCB assemblies with the TE Connectivity Breakaway Header. Featuring 2mm centerline, versatile mounting options, and high-temperature plastic housing, this connector ensures reliable connections in demanding environments. With brass contacts, gold or tin plating, and compatibility with surface mounting and through-hole reflow processes, it supports applications like PLCs, servo drives, and control systems. Designed for speeds and efficiency, it offers durability, compliance to safety standards, and flexibility for various PCB thicknesses, making it an essential component for your project success.
Order your TE Connectivity AMPMODU 2mm Breakaway Header today and enhance your industrial automation projects with dependable, space-saving connectors.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28421265?
You can click on the BUY or RFQ button to purchase 28421265 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28421265?
You can download the 28421265 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28421265?
TE CONNECTIVITY
