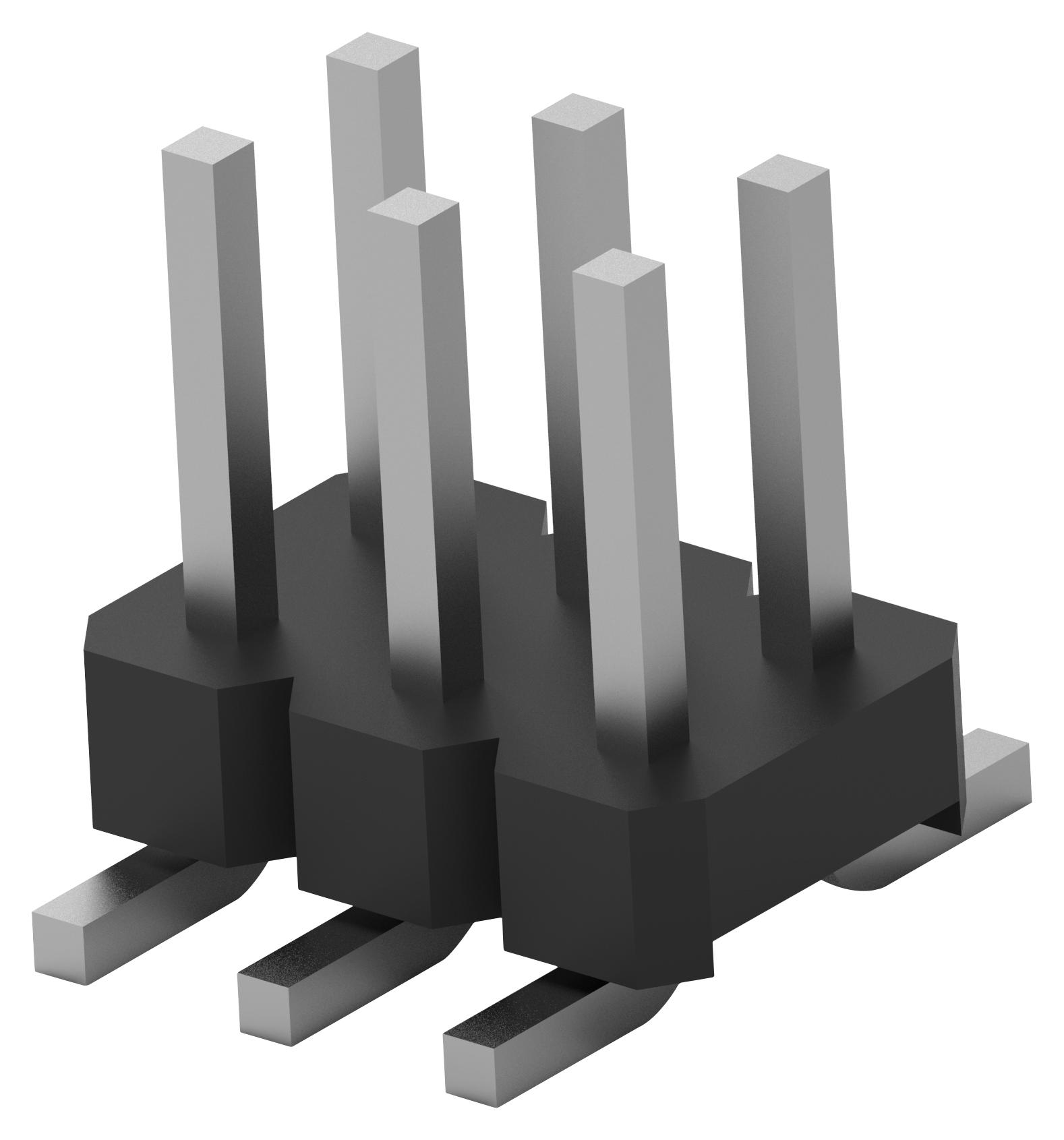

TE CONNECTIVITY 28421423 Industrial Breakaway Header
The TE Connectivity AMPMODU 2mm Breakaway Header is a compact, space-saving connector designed for reliable PCB connections in industrial automation, control systems, servo drives, and material handling applications. It features 2-25 positions per row, with high-temperature plastic housing, gold or tin plating, and robust brass contacts capable of withstanding harsh environments. Suitable for surface mounting or through-hole assembly, this header provides up to 2A current rating, dielectric withstand voltage of 650VAC, and operates within -40°C to 125°C, ensuring durability and excellent performance in demanding industrial settings.
TE CONNECTIVITY 28421423 Industrial Breakaway Header Specifications:
- Centerline: 2.00mm
- Contact Dimension: 0.50mm square pins
- Connector Size: 2-25 positions per row, single or double row
- PCB Thickness: 1.6mm to 2.4mm
- Operating Environment: Class III
- Current Rating: 2A (max.)
- Plating Options: 0.76um gold or tin
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Housing Material: High-temperature UL 94VO plastic, black
- Contact Material: Brass
- Temperature Range: -40°C to 125°C
- Reflow Capability: Up to 260°C
- RoHS & REACH compliant
- Vibration resistance: No electrical discontinuity greater than 1 microsecond
Buy the TE Connectivity Series AMPMODU 2mm Breakaway Header: 28421423
Enhance your industrial automation and control applications with the reliable TE Connectivity AMPMODU 2mm Breakaway Header. Its compact design offers space savings, allowing for more functionality on your PCB. With high current capacity and durability in harsh environments, this header is ideal for automation, servo drives, and material handling systems. Available in various packaging options, it supports automated assembly and provides excellent electrical performance, ensuring seamless connectivity and robust operation for your industrial needs.
Buy TE Connectivity 28421423 now and experience unmatched reliability and performance with space-efficient PCB connection solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28421423?
You can click on the BUY or RFQ button to purchase 28421423 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28421423?
You can download the 28421423 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28421423?
TE CONNECTIVITY
