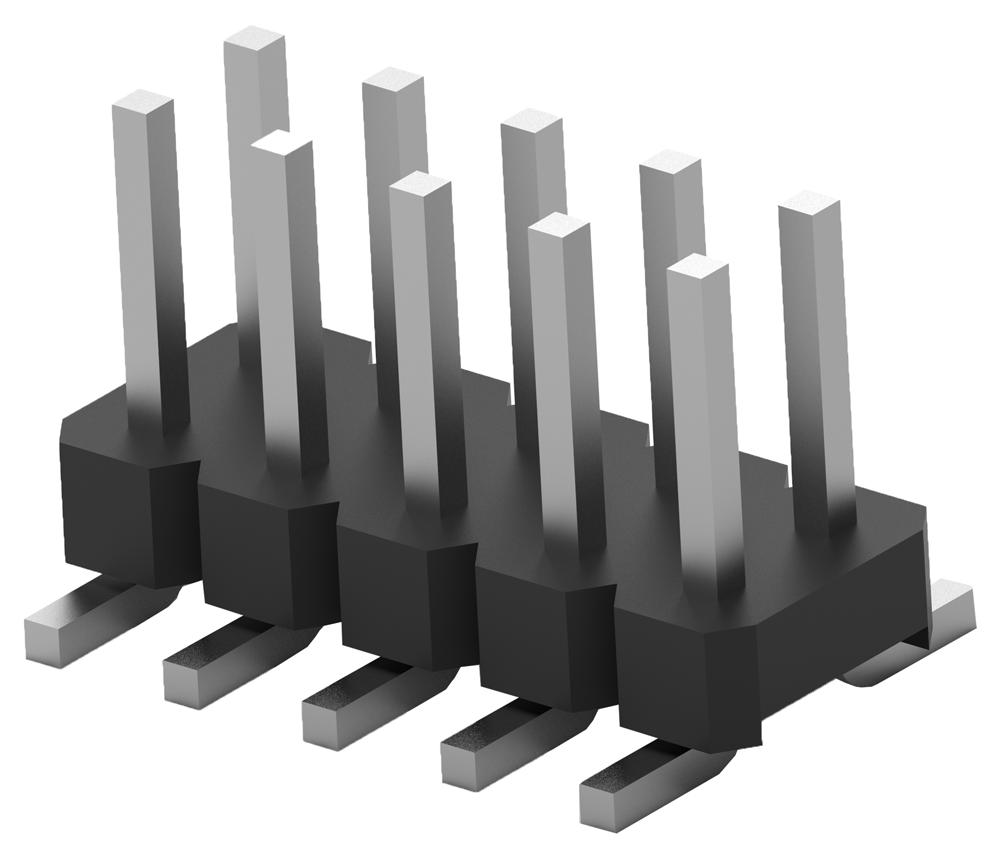

TE CONNECTIVITY 28421424 Industrial Breakaway Header
The AMPMODU 2mm Breakaway Header is a compact, space-saving connector designed for board-to-board and wire-to-board applications in industrial automation, control systems, and test equipment. Featuring a 2mm centerline, it reduces PCB space by nearly 38% compared to standard 2.54mm headers, allowing for enhanced functionality. Fully compatible with major receptacle brands, it supports automated surface mounting, through-hole reflow, and traditional through-hole mounting. Its robust brass contacts are gold or tin-plated, rated for 2A current, with an operating temperature range of -40°C to 125°C, and compliance with RoHS and REACH standards.
TE CONNECTIVITY 28421424 Industrial Breakaway Header Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02] square pins
- Connector Size: 2-25 positions per row, available in single and double row
- PCB Thickness: 1.6mm to 2.4mm [0.063” to 0.094”]
- Electrical Rating: 2A max, Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC, Operating Temperature: -40°C to 125°C
- Housing Material: High Temperature Plastic, UL 94V-0, Black
- Contact Material: Brass, Plating: Gold or Tin
- Reflow Solder Capable: To 260°C
- Environmental Compliance: RoHS & REACH, Vibration Tested, UL Certified
Buy the TE Series AMPMODU 2mm Breakaway Header: 28421424
Secure your TE Connectivity Series AMPMODU 2mm Breakaway Header online today to benefit from space-efficient design and reliable connections for industrial, automation, and electronics projects. This 2mm pitch header reduces PCB space by nearly 38%, supports automated surface mounting and through-hole reflow, and ensures high current ratings up to 2A with robust brass contacts plated in gold or tin. Suitable for operating temperatures from -40°C to 125°C and compliant with RoHS and REACH, it’s ideal for building automation, control systems, and test equipment, delivering dependable quality with quick delivery.
Order your TE Connectivity Series AMPMODU 2mm Breakaway Header today and enhance your PCB assemblies with space-efficient and reliable connectors.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28421424?
You can click on the BUY or RFQ button to purchase 28421424 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28421424?
You can download the 28421424 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28421424?
TE CONNECTIVITY
