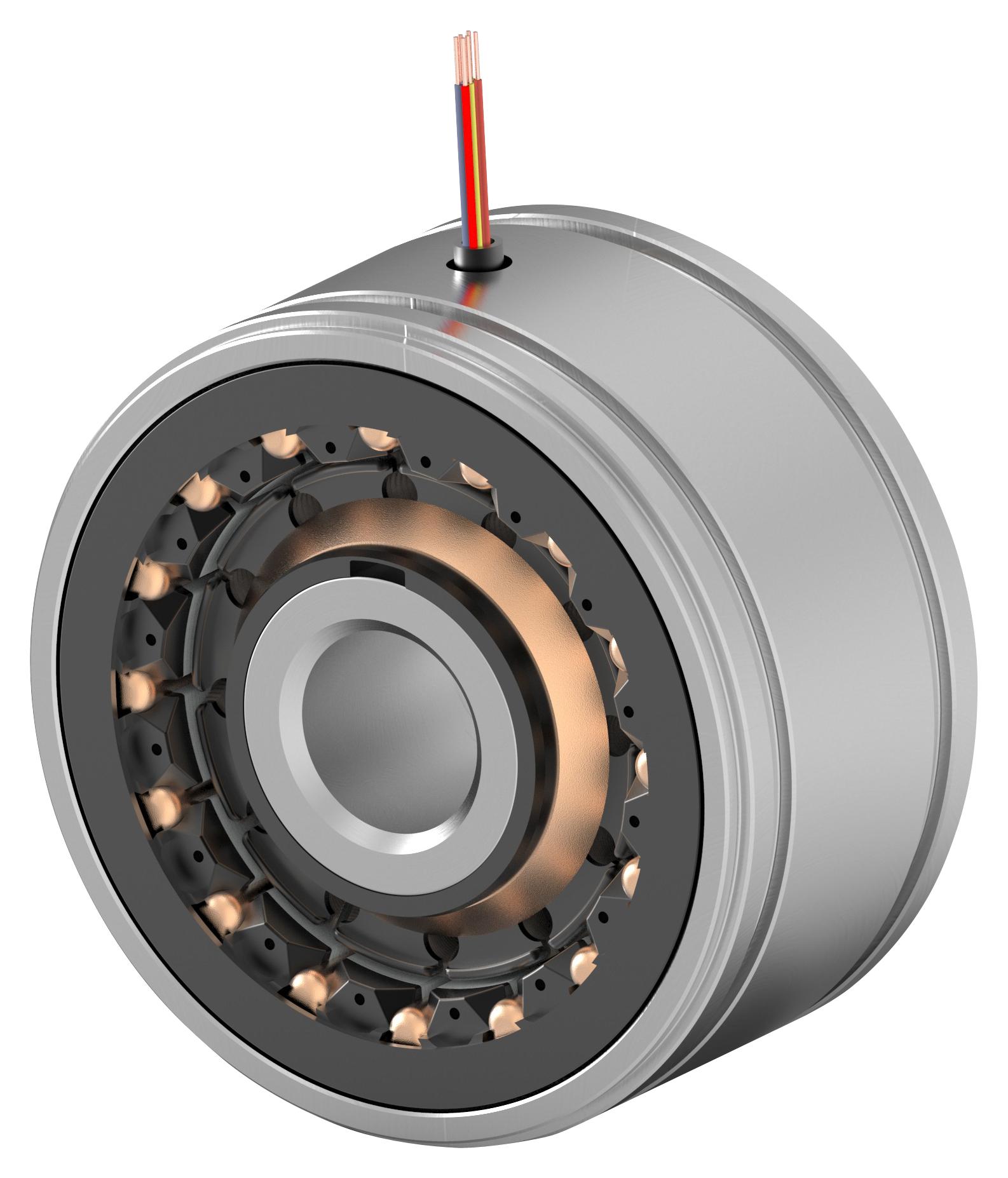

TE CONNECTIVITY V23401T1071B101 Industrial Rotor Resolver
The V23401-11071-B101 hollow shaft resolver is a high-precision rotary sensor designed for accurate angle measurement in industrial applications. It features a 12.7 mm shaft inner diameter, supports rotational speeds up to 20,000 rpm, and withstands temperatures from -55°C to +150°C. The resolver has an electrical transformation ratio of 0.5, phase shift tolerance of +10°, and residual voltage max of 25 mV. It is resistant to shocks of 41,000 ms and vibrations of 200 m/s², ensuring reliable performance in harsh environments. The device includes Teflon-isolated wiring, 200 mm cable length, and conforms to rigorous testing standards.
TE CONNECTIVITY V23401T1071B101 Industrial Rotor Resolver Specifications:
- Shaft Inner Diameter: 12.7 mm
- Maximum Rotational Speed: 20,000 rpm
- Temperature Range: -55°C to +150°C
- Shock Resistance: 41000 ms
- Vibration Resistance: 200 m/s²
- Electrical Transformation Ratio: 0.5
- Phase Shift Min: -10°
- Phase Shift Max: 0°
- Residual Voltage Max: 25 mV
- Input Voltage: 7V
- Input Resistance R1R2: 80Ω
- Output Resistance S1S3/S2S4: 80Ω
- Frequency: Typical 10 kHz
- Isolation Test Voltage: 7V (Winding R1-R2), 500V AC test
- Cable Length: 200 mm, Teflon insulated, AWG 26
- Dimensions: Length 200 mm
- Inertia: Approximately 20 g·cm²
Buy the TE Connectivity Series Resolver: V23401-11071-B101
Purchase the TE Connectivity V23401-11071-B101 resolver online today to ensure precise angle measurement capabilities with high reliability. This rugged device is designed for industrial applications requiring resistance to shocks, vibrations, and extreme temperatures. Featuring a shaft inner diameter of 12.7 mm, it supports speeds up to 20,000 rpm and operates over a wide temperature range from -55°C to +150°C. With advanced insulation and robust construction, this resolver guarantees consistent performance and long service life in tough conditions. Order now for fast delivery and technical support.
Buy TE Connectivity V23401-11071-B101 resolver now and experience unparalleled accuracy and durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY V23401T1071B101?
You can click on the BUY or RFQ button to purchase V23401T1071B101 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part V23401T1071B101?
You can download the V23401T1071B101 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of V23401T1071B101?
TE CONNECTIVITY
