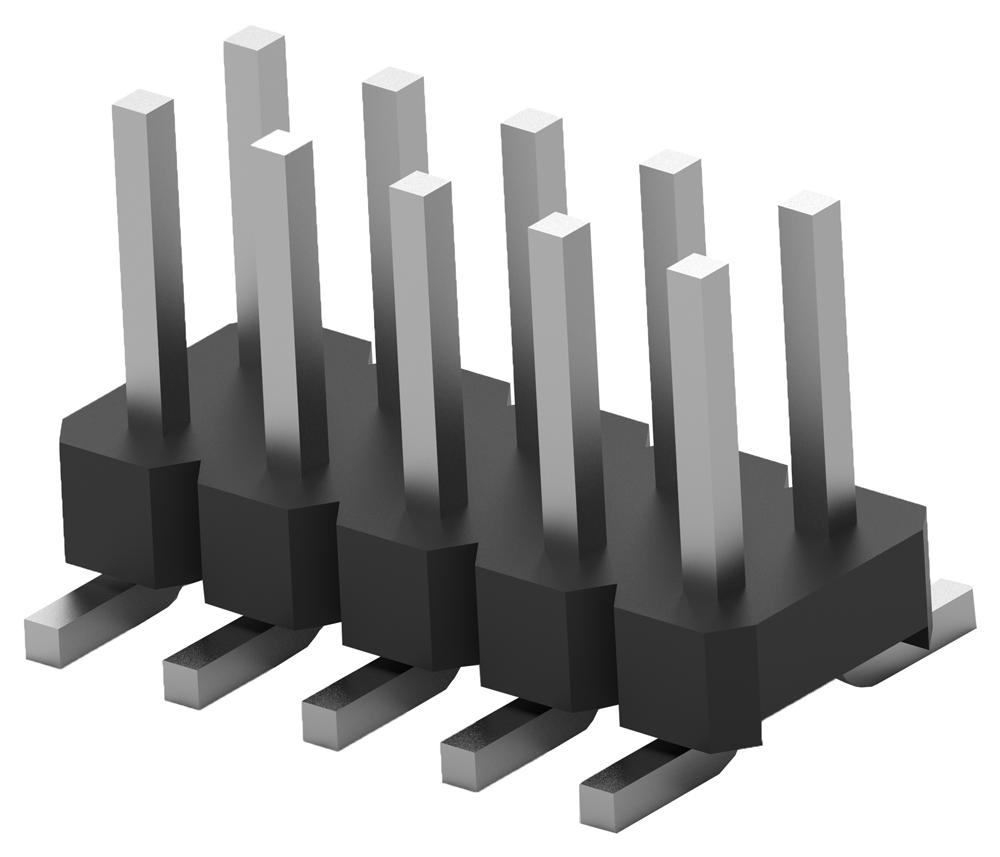

TE CONNECTIVITY 28421445 Breakaway Header
The AMPMODU 2mm Breakaway Header is a space-efficient, reliable connector designed for industrial PCB applications like PLCs, servo drives, and automation systems. It offers a 2.00mm centerline with square pins, supporting 2A current and operating temperatures from -40°C to 125°C. Compatible with automated surface mount and through-hole reflow processes, it features high-temperature plastic housing, gold and tin plating, dielectric withstand voltage of 650VAC, and is RoHS and REACH compliant. It ensures robust performance in demanding environments with easy installation and high durability.
TE CONNECTIVITY 28421445 Breakaway Header Specifications:
- Centerline: 2.00mm [0.079]
- Contact Dimension: 0.50mm [0.02"] square pins
- Connector Size: 2-25 positions per row, available in single and double row
- PCB Thickness: 1.6mm to 2.4mm [0.063” to 0.094”]
- Operating Temperature: -40°C to 125°C
- Reflow Solder Capable: to 260°C
- Housing Material: High Temperature Plastic, UL 94VO, Black
- Contact Material: Brass
- Current Rating: 2A
- Dielectric Withstanding Voltage: 650VAC
- Operating Voltage: 125VDC
- Plating: 0.76um [30p"] Gold, 0.38um [15u"] Gold, Tin
- RoHS & REACH Compliant
- Vibration Resistance: No electrical discontinuity greater than + UL Certified
Buy the TE Connectivity AMPMODU 2mm – Reliable Breakaway Header for Industrial Applications
Purchase your TE Connectivity AMPMODU 2mm Breakaway Header online today and benefit from its space-efficient design, making it ideal for PLCs, servo drives, and automation systems. With support for automated surface mounting and through-hole processes, high durability, and compliance with RoHS and REACH, this connector offers reliable electrical performance in demanding industrial environments. Improve your PCB assembly efficiency and ensure dependable connections that withstand extreme temperatures and vibrations by ordering now for quick delivery and seamless integration into your projects.
Order your TE Connectivity AMPMODU 2mm Breakaway Header today and enhance your industrial PCB designs with dependable, space-saving connectors.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 28421445?
You can click on the BUY or RFQ button to purchase 28421445 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 28421445?
You can download the 28421445 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 28421445?
TE CONNECTIVITY
