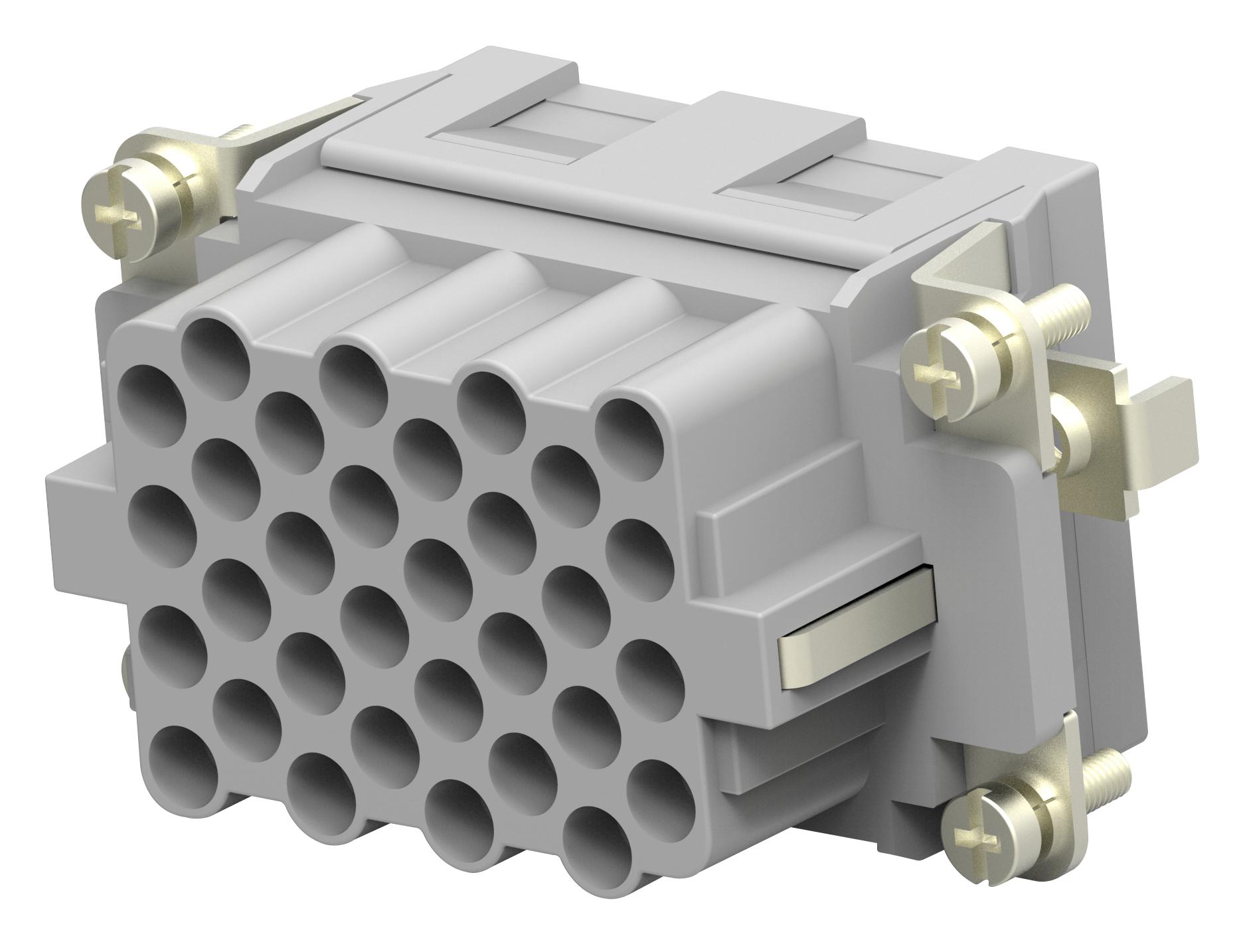

TE CONNECTIVITY T2050323201007 Heavy-Duty Railway Connector Inserts
These EN45545 compliant heavy-duty connector inserts are designed for railway applications, offering high flexibility with configurations from 1 to 216 pins. Made from materials meeting R22 and R23 hazard level standards, they ensure fire, smoke, and toxicity safety. Operating in temperature ranges from -40°C to 125°C, they support signal, data, and power transmission in rolling stock, traction converters, power distribution, and inter-car jumpers. The modular design simplifies assembly, reduces installation costs, and ensures reliable electrical connections across various performance levels up to 16A and 500V or 250V.
TE CONNECTIVITY T2050323201007 Heavy-Duty Railway Connector Inserts Specifications:
- Operating temperature range: -40°C to 125°C
- Material: R22 and R23 hazard level compliant materials
- Flammability: EN45545 compliant, fire, smoke, toxicity standards
- Current ratings: from 5A to 200A depending on model
- Voltage ratings: up to 500V (HEE series), 250V (HDD series), 400V (HEEE series)
- Pin configurations: from 1 to 216 pins
- Connector dimensions vary with model, modular one-piece frame
- Includes safety standards: EN61984, EN 50467, IEC 60512, IEC 60664-1, EN 61373
- Operating temperature: -40°C to 125°C
- Certification: EN45545, UL Listed
Buy the TE Connector Heavy-Duty EN45545 Compliant Connector Inserts for Railway Applications
Enhance your railway systems with TE's EN45545 compliant heavy-duty connector inserts, offering modular configurations from 1 to 216 pins. These flame-retardant inserts ensure safety standards are met while providing reliable electrical connections under harsh conditions. Designed for rolling stock, traction converters, and power distribution, they operate efficiently from -40°C to 125°C. The quick assembly and system modularity benefit installation costs, flexibility, and maintenance, making them ideal for demanding industrial and railway applications.
Buy TE connector inserts now and experience unmatched safety, flexibility, and reliability for railway and industrial electrical systems.
