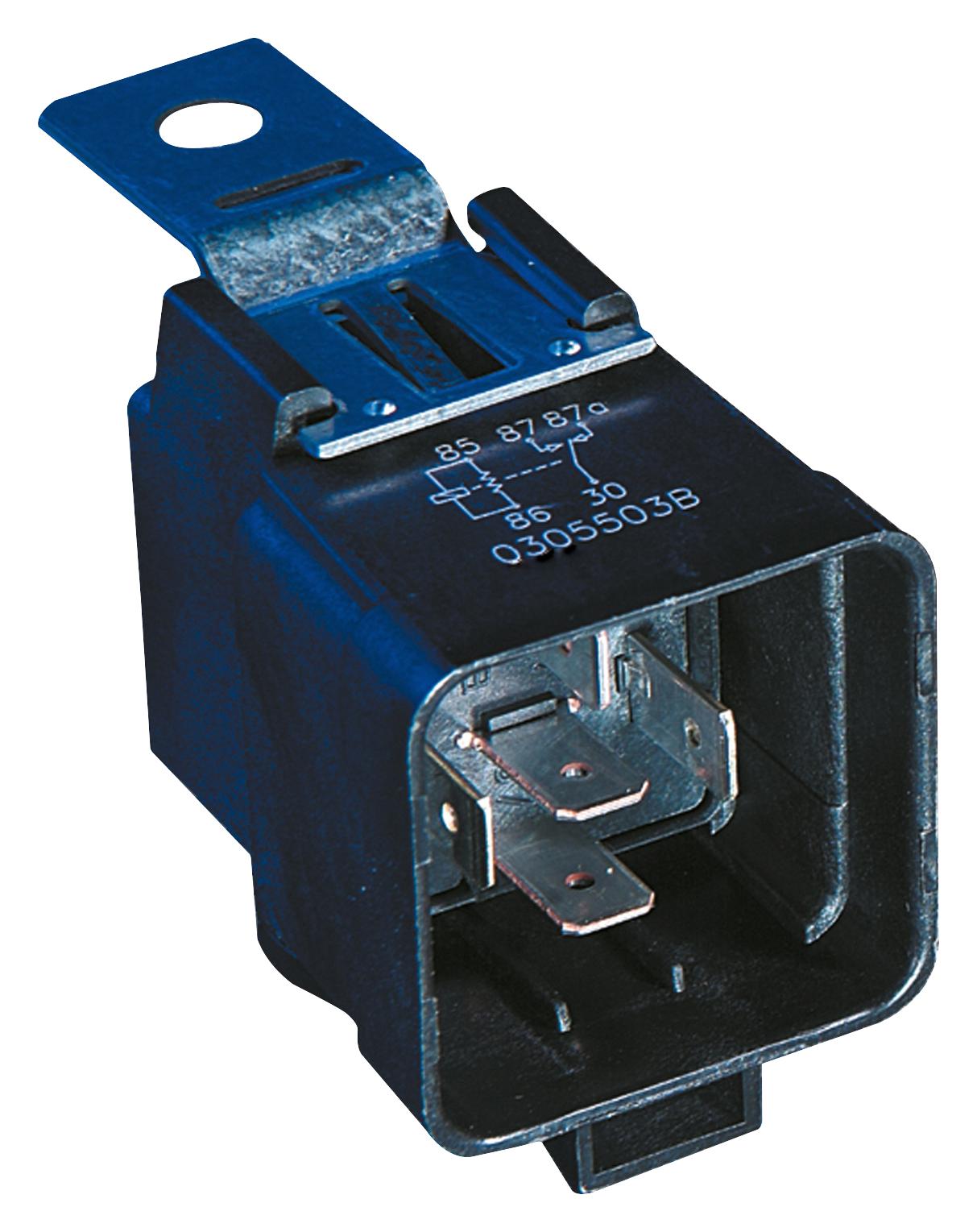

TE CONNECTIVITY 319041315 Power Relay
The Power Relay F is a compact, high-current relay designed for automotive and industrial applications, featuring a 12 VDC coil and a contact current rating of 30-50A. It utilizes a 1 Form C (CO) contact arrangement, with a coil resistance of 90.2Ω, and is mounted via plug-in brackets for easy installation. Rated for a 60A current at 85°C and short-time current of 240A, this relay provides reliable switching with dielectric insulation ratings up to 500 Vrms between contacts and coil. Suitable for demanding environments, it complies with multiple safety and environmental standards, offering durable performance in various switching tasks.
TE CONNECTIVITY 319041315 Power Relay Specifications:
- Coil Voltage: 12 VDC
- Contact Current Class: 30-50A
- Contact Arrangement: 1 Form C (CO)
- Coil Resistance: 90.2Ω
- Current Rating (85°C): 60A
- Short-Time Current: 240A
- Insulation Voltage Between Contacts and Coil: 500 Vrms
- Insulation Voltage Between Contacts: 500 Vrms
- Body Type: Plug-In
- Mounting Brackets: Included
- Body Dimensions: Width 25-30 mm, Height 25.5 mm, Length 28 mm
- Operating Temperature Range: -55°C to +125°C
- Environmental Compliance: EU RoHS, ELV, REACH
- Weight: 35 g
Buy the TE Power Relay F Series Automotive Relay: 319041315
Discover the TE Power Relay F, a robust high-current relay ideal for automotive and industrial environments. Featuring a 12 VDC coil, 30-50A contact capacity, and 1 Form C contact arrangement, this plug-in relay ensures quick installation and dependable switching. Its coil resistance of 90.2Ω and insulation ratings up to 500 Vrms provide enhanced safety and durability. Suitable for demanding applications, it supports environments with temperatures up to 125°C and complies with major environmental standards. Order online today for reliable performance and seamless integration in your systems.
Buy TE Power Relay F Series 319041315 now and experience unmatched reliability and performance in high-current switching applications.
