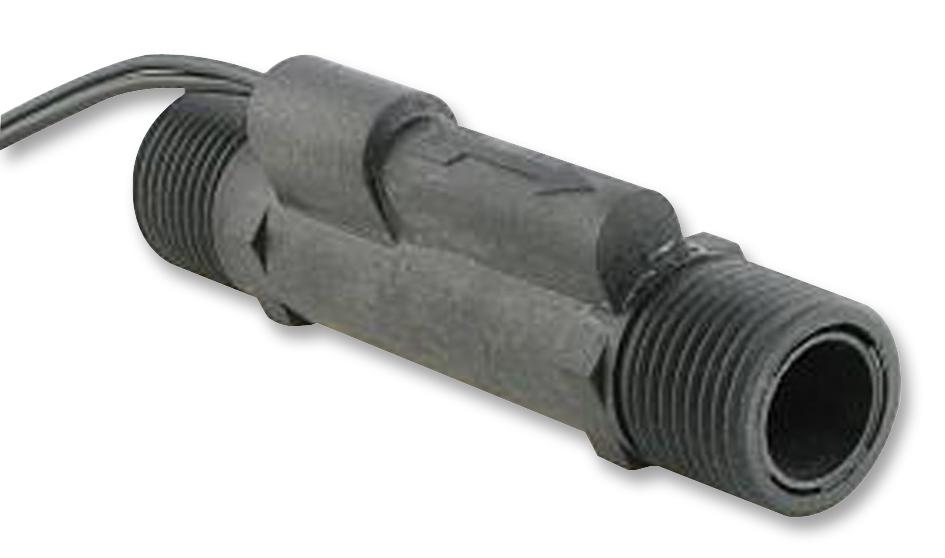

TE CONNECTIVITY FCS01 Flow Sensor
The FCS-01 Flow Sensor offers reliable water and air flow detection with a rugged Noryl housing and food-grade materials. It features a SPST reed switch with a maximum switching voltage of 250 VAC and current of 1A, suitable for leak detection, water control, and cooling systems. The sensor operates from -30°C to 85°C, with a maximum pressure of 10 bar at 20°C. its compact design includes 3/8" BSP threaded fittings, mounting in any axis, and low pressure drop, making it ideal for potable water and air flow switching.
TE CONNECTIVITY FCS01 Flow Sensor Specifications:
- Housing Material: Noryl
- Shuttle Material: Noryl
- Spring Material: Stainless Steel
- Contact Material: Ruthenium
- Operating Temperature: -30°C to 85°C
- Maximum Pressure: 10 Bar at 20°C
- IP Rating: IP65
- Flow Direction: Flow on operation
- Switching Action: SPST, Normally Open (N/O), Closes with Flow
- Max Switching Voltage: 250 VAC
- Max Switching Current: 1A
- Max Switching Load: 40 Watts
- Cable Type: 2 x 0.5M single insulated, PVC, 22AWG
- Cable Color: Black/Black
- Thread Fitting: 3/8" BSP Male threaded fittings
- Operate Mode: Normally Open (N/O), closes with flow
- Shock Resilience: 50g for 11ms
- Vibration Resistance: 35g up to 500Hz
Buy the TE Connectivity Series Flow Sensor: FCS01
Discover the TE Connectivity Series FCS-01 flow sensor, featuring durable Noryl housing, food-grade materials, and reliable reed switch technology. Perfect for leak detection, water control, cooling systems, and circulation pump protection, it operates within -30°C to 85°C and supports up to 10 bar pressure. Its compact design with 3/8" BSP threaded fittings allows versatile mounting in any axis. Ensure your systems' safety and efficiency by ordering this high-performance flow sensor online today, backed by expert quality and dependable operation.
Order your TE Connectivity Series FCS-01 flow sensor today and ensure precise water and air flow detection for reliable system performance.
