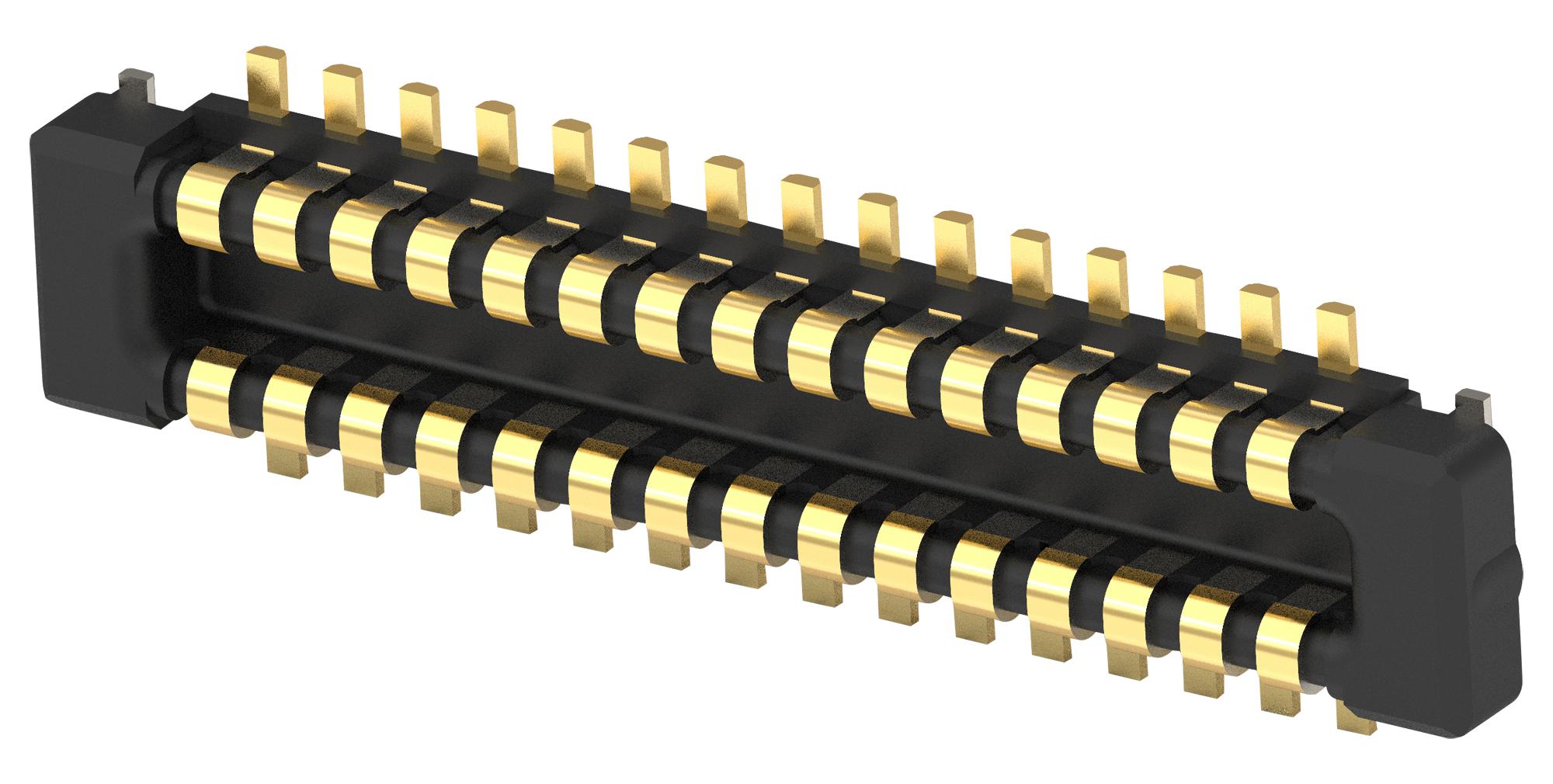

TE CONNECTIVITY 323639620 PCB Mount Header
This is a high-precision vertical PCB mount header with 30 positions, featuring a 0.4mm centerline pitch and gold-plated contacts for enhanced conductivity. Designed for board-to-board connections, it supports up to 5A current rating and operates reliably within a temperature range of -40°C to 85°C. Made from high-temperature thermoplastic, the connector is surface mountable, ensuring secure attachment and precise alignment. Ideal for signal and low-power applications in electronic assemblies, it complies with industry standards including UL 94V-0 flammability rating and European RoHS regulations, making it suitable for diverse industrial and commercial projects.
TE CONNECTIVITY 323639620 PCB Mount Header Specifications:
- Connector Type: PCB Mount Header
- Mount Orientation: Vertical
- Number of Positions: 30
- Centerline (Pitch): 0.4mm [.015 in]
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Contact Current Rating: 5A
- Termination Method: Mechanical attachment to PCB
- Housing Material: High-temperature thermoplastic
- Housing Color: Black
- Stack Height: 0.8 mm [.031 in]
- Operating Temperature Range: -40°C to 85°C
- Flammability Rating: UL 94V-0
- Packaging: Tape & Reel
- Compliance: EU RoHS, REACH, China RoHS 2
- Cable and solder process capabilities: Not reviewed for solder process
Buy the TE Series 3-2363962-0 PCB Mount Header: 30 Position Vertical Connector
Enhance your electronic assembly with the TE Series 3-2363962-0 PCB Mount Header, a 30-position vertical connector featuring 0.4mm pitch, gold contacts, and a robust thermoplastic housing. Designed for reliable board-to-board applications, it supports a maximum of 5A current, operates efficiently within -40°C to 85°C, and complies with UL and RoHS standards. Its high precision and secure mechanical mount make it ideal for signal, low-power, and industrial applications, ensuring high-performance connectivity in your critical projects.
Order your TE Series 3-2363962-0 PCB Mount Header today and ensure reliable connections in your electronic projects with high-quality board-to-board compatibility.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 323639620?
You can click on the BUY or RFQ button to purchase 323639620 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 323639620?
You can download the 323639620 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 323639620?
TE CONNECTIVITY
