TE CONNECTIVITY 732825699 PCB Module
The DEUTSCH DMC-M Series PCB modules are compact, lightweight, and designed for aerospace, defense, and marine applications. They offer high-density contact configurations, with advanced features including gold-plated copper alloy contacts, operating temperature range from -55°C to +175°C, and durability for up to 500 mating cycles. These modules are suitable for EN4165, BACC65, and ARINC 809 shells, providing reliable, flexible connectivity with optional lead-free tinning. Their rugged, modular design ensures excellent performance in demanding environments, making them ideal for aerospace and military electronic systems.
TE CONNECTIVITY 732825699 PCB Module Specifications:
- Material: Thermoplastic and fluorinated silicone
- Contact Material: Copper alloy, plated gold over nickel
- Operating Temperature: -55°C to +175°C
- Durability: 500 mating cycles
- Contact Tension: Size 24: 27 daN, Size 23: 4.5 daN, Size 22: 4.5 daN, Size 20: 9.0 daN, Size 16: 11.0 daN, Size 12: 13.0 daN
- Withstand Voltage: Service I: 1300 Vrms, Service II: 1500 Vrms
- Electrical Current Rating: Size 24: 3 A, Size 23: 5 A, Size 22: 5 A, Size 20: 75 A, Size 16: 13 A, Size 12: 23 A
- Design: Modular PCB contacts, high-density configuration, modularity for flexible assembly
- Shell Compatibility: EN4165, BACC65, ARINC 809
- Connectors: Available in straight and bended PCB contact configurations
- Temperature Range: -55°C to +175°C
- Finish: Gold plating, optional tinning without lead

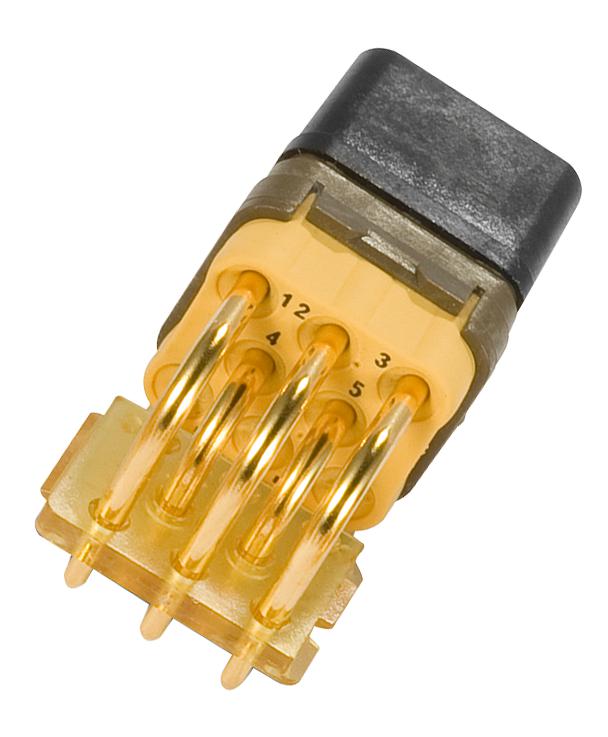

Buy the Buy TE Connectivity DMC-M Series PCB Module Part Number 732825699 Online
Purchase the TE Connectivity DMC-M Series PCB Module 732825699 online today. Designed for aerospace, defense, and marine applications, this module offers high-density contact configurations, robust construction, and reliable operation across a wide temperature range. Its modular design allows flexible assembly and ease of maintenance, ensuring optimal performance in demanding environments. With gold-plated copper alloy contacts and optional lead-free tinning, this PCB module provides long-lasting, corrosion-resistant connectivity. Order now to upgrade your electronic systems with industry-leading quality and dependability.
Order your TE Connectivity DMC-M Series PCB Module 732825699 today and enhance your aerospace, defense, or marine project with reliable, high-performance connectivity solutions.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 732825699?
You can click on the BUY or RFQ button to purchase 732825699 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 732825699?
You can download the 732825699 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 732825699?
TE CONNECTIVITY
