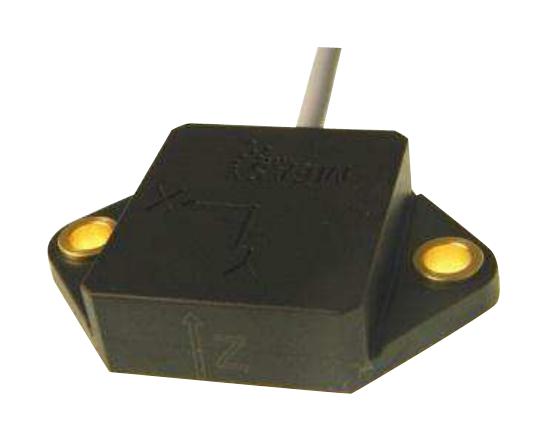

TE CONNECTIVITY 4030006120 Vibration Accelerometer
The Model 4020 and 4030 accelerometers are durable, low-noise DC sensors with silicon MEMS technology, designed for vibration, tilt, and structural monitoring. The 4020 is a dual-axis model, while the 4030 offers triaxial measurement, both with +2g and +6g ranges and RoHS compliance. Packaged in rugged molded housings with environmentally sealed IP65 ratings, these accelerometers feature 0-200Hz bandwidth, low power consumption, and are suitable for critical industrial and laboratory applications. They include integral cables, self-test capabilities, and operate within -40°C to +85°C temperature ranges.
TE CONNECTIVITY 4030006120 Vibration Accelerometer Specifications:
- Range: +2g and +6g
- Sensitivity: 1000 mV/g
- Frequency Response: 0-200Hz
- Zero Acceleration Output: 1.65 V (typical)
- Excitation Voltage: 5-30 Vdc
- Shocks Limit: 2000 g
- Residual Noise: 42 μV RMS
- Housing Material: Epoxy Sealed Nylon 6-6, 30% GF
- Environmental Protection: IP65
- Operating Temperature: -40°C to +85°C
- Mounting: Isolated from surface, using 2x Vs or M6 screws
- Dimensions: Approximate size 15.0 mm x 6.76 mm with cable option
- Weight: Approximately 50 grams
- Self-Test: Enabled
- Cable Length Options: 120 in, 240 in, 360 in, etc.
Buy the TE Connectivity Model 4020 – Reliable Vibration and Tilt Accelerometer for Industrial Applications
Order the TE Connectivity Model 4020 accelerometer online today to enhance your vibration, tilt, and structural monitoring projects. With durable construction, low noise, and stable silicon MEMS sensing technology, this device guarantees precise measurements in harsh environments. Its rugged, sealed housing ensures IP65 protection, making it suitable for industrial and laboratory applications. Quickly integrate the pre-wired models with cable options of 120, 240, or 360 inches, and benefit from its self-test features and wide temperature range, ensuring long-term, reliable operation.
Buy TE Connectivity Model 4020 accelerometer now and experience unmatched reliability and performance in vibration and tilt measurement.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 4030006120?
You can click on the BUY or RFQ button to purchase 4030006120 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 4030006120?
You can download the 4030006120 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 4030006120?
TE CONNECTIVITY
