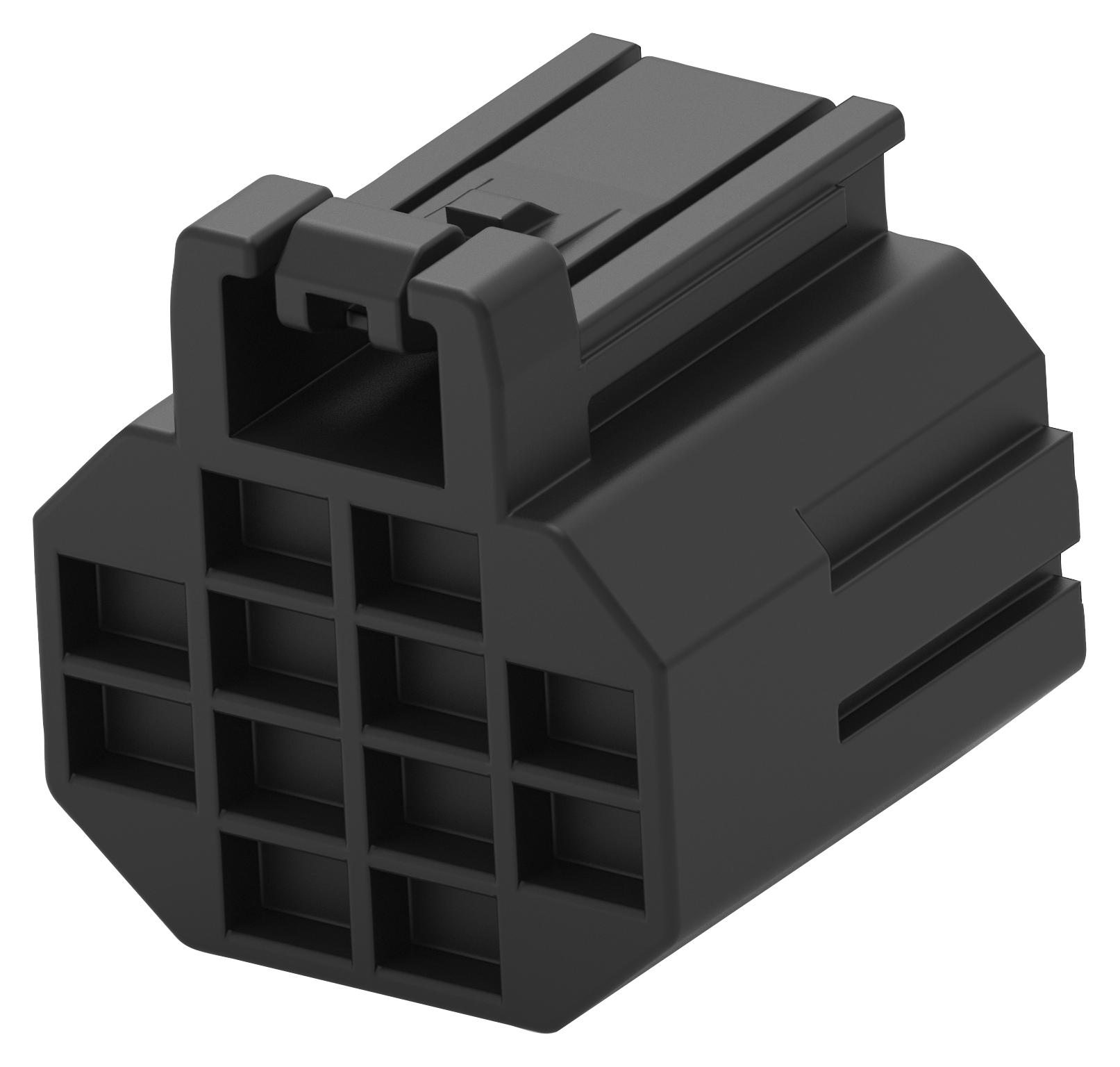

TE CONNECTIVITY 423665152 Wire-to-Wire Connector
The Dynamic D1000 Slim Small Wire-to-Wire Connector is engineered for narrow spaces in small industrial equipment and machinery. It is 80% smaller than the D1200 series, featuring a streamlined design that minimizes interference. The connector includes keying and locking features to ensure reliable connections and prevent unmating or lever breakage in tight areas like robotic arms and automation systems. This 12-position Y key receptacle suits applications such as robotics, collaborative robots, automated guided vehicles, servo motors, and sensors. It supports up to 250V AC/DC, withstands 1,500VAC for 1 minute, and is made with UL 94V-0 thermoplastic, copper contacts, functioning effectively from -55°C to +125°C.
TE CONNECTIVITY 423665152 Wire-to-Wire Connector Specifications:
- Applicable wire size: AWG #22 to #30
- Material housing: Thermo plastic, UL 94V-0, black
- Contact Material: Copper alloy
- Temperature Range: -55°C to +125°C
- Current Rating: 4.5A per position
- Voltage Rating: AC/DC 250V
- Withstand Voltage: AC 1,500V for 1 minute
- Locking: Keying and audible lock confirmation
- Number of Positions: 12
- Housing color: Black
- Operating environment: Suitable for robotic arms, AGVs, sensors, and small machinery
- Size reduction: 80% smaller than D1200 series
- Design features: Low interference risk, easy mating and crimping
- Application: Automation, robotics, small industrial equipment
Buy the TE Connectivity Series D1000 Wire-to-Wire Connector: 423665152
Purchase the TE Connectivity D1000 series wire-to-wire connector online today to ensure reliable, space-saving connectivity in your automation and robotics projects. Designed for narrow spaces, this 12-position connector features keying and locking mechanisms that guarantee dependable connections, reducing unmating and breakage risks. Made with UL 94V-0 thermoplastic and copper contacts, it supports up to 250V AC/DC and a temperature range of -55°C to +125°C. Easy to install through quick mating and crimping, it is ideal for small industrial equipment, robotics, AGVs, sensors, and servo motors, ensuring optimal space utilization and reliable performance in demanding environments.
Get TE Connectivity D1000 series connector today—built for precision, space efficiency, and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 423665152?
You can click on the BUY or RFQ button to purchase 423665152 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 423665152?
You can download the 423665152 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 423665152?
TE CONNECTIVITY
