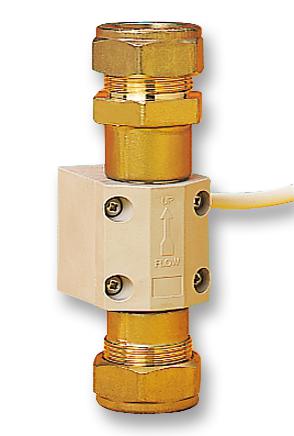

TE CONNECTIVITY FS05 Flow Sensor
The FS-05 flow sensor features a rugged brass housing, operates with minimal pressure drop, and is suitable for water and air flow switching. It operates effectively from a small head of water and can be vertically mounted with a ±15° tilt. With a 22mm compression fitting, it is ideal for applications such as mains water control, power showers, central heating systems, circulation pump protection, and cooling systems. Its Noryl shuttle, triac contact material, and IP65 rating ensure durability and reliable performance in hot and cold potable water environments, making it a versatile choice for various fluid flow monitoring needs.
TE CONNECTIVITY FS05 Flow Sensor Specifications:
- Housing Material: Brass
- Shuttle Material: Noryl
- Contact Material: Triac
- Operating Temperature: -30°C to 100°C
- Medium: Water and air
- Housing Colour: Brass
- Maximum Pressure: 10 Bar @ 20°C
- Ingress Protection: IP65
- Switching Flow Rate: 1.0 L/min
- Switching Action: SPST, N/O, close with flow
- Max Switching Voltage VAC: 250 V
- Max Switching Current: 3 Amps
- Cable Length: 1 meter, double insulated
- Connection Type: Stripped cables
- Cable Type: 0.5mm² BS6500 PVC
- Mounting: Vertical, flow upwards
- Fitting: 22mm Compression
- Shock: 50g for 11ms
- Vibration: 35g up to 500Hz
Buy the AIG Series FS Flow Sensor: FS05
Purchase the AIG FS05 flow sensor online now for reliable flow monitoring in water and air applications. Designed with durable brass housing, 22mm compression fitting, and IP65 sealing, it ensures long-lasting performance in residential and commercial systems. Ideal for applications like mains water control, central heating, and cooling systems, it offers easy installation and consistent operation with a switching flow rate of 1.0 L/min. Order online today to enhance your fluid management solutions with this versatile, high-quality sensor.
Get AIG FS05 today—built for precise water and air flow switching in HVAC and plumbing systems.
