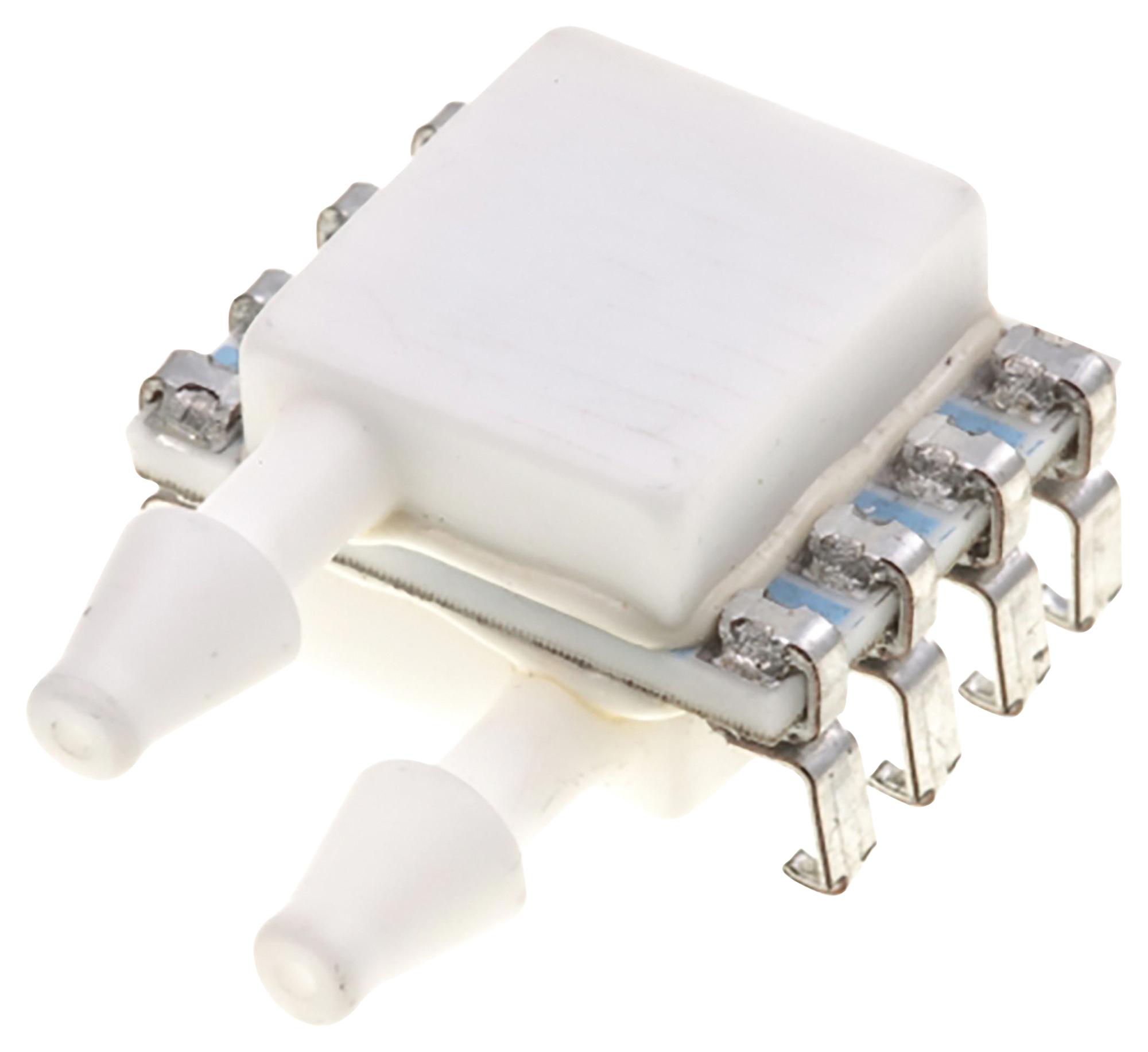

TE CONNECTIVITY 4515DODS3BK005DPL Pressure Sensor
The MEAS MS4515DO is a compact, ceramic-based pressure transducer designed for PCB mounting. It features advanced CMOS sensor circuitry for high accuracy and digital output with 14-bit pressure and 11-bit temperature resolution. Suitable for detecting blocked filters, measuring altitude, airspeed, medical applications, fire suppression, panel meters, air control, and pneumatic systems. Operates at 3.3V or 5.0V, supports various port options like dual side, top, or manifold mount, and offers low power consumption modes. Its rugged ceramic construction ensures reliable performance in diverse environments.
TE CONNECTIVITY 4515DODS3BK005DPL Pressure Sensor Specifications:
- Pressure Ranges: 2 to 30 inches H20
- Output: Digital (14-bit pressure, 11-bit temperature)
- Supply Voltage: 3.3V or 5.0V DC
- Interface: I2C (address 0x46H)
- Port Options: Side port, top port, manifold mount
- Calibration: Fully calibrated and temperature compensated
- Accuracy: Total error band less than 1.0%
- Temperature Range: -40°C to +85°C
- Dimensions: Compact PCB mount design, weight approximately 3 grams
- Materials: Ceramic sensor, suitable for dry, non-corrosive gases
- Operational Features: Low power standby mode (<1A), rugged construction for reliable OEM use
Buy the TE Connectivity Series MS4515 Pressure Sensor: 4515DODS3BK005DPL
Order the TE Connectivity MS4515D0 pressure sensor online now to experience high performance and reliability in measuring pressure for medical, environmental, and pneumatic systems. Its compact ceramic design and advanced digital technology deliver accurate, temperature compensated readings across a range of 2 to 30 inches H20. With low power options and versatile port configurations, this sensor seamlessly integrates into OEM products and industrial environments. Purchase today for immediate quality and dependable operation in your projects.
Get TE Connectivity MS4515D0 pressure sensor today—designed for precise measurements and durable performance in your critical applications.
