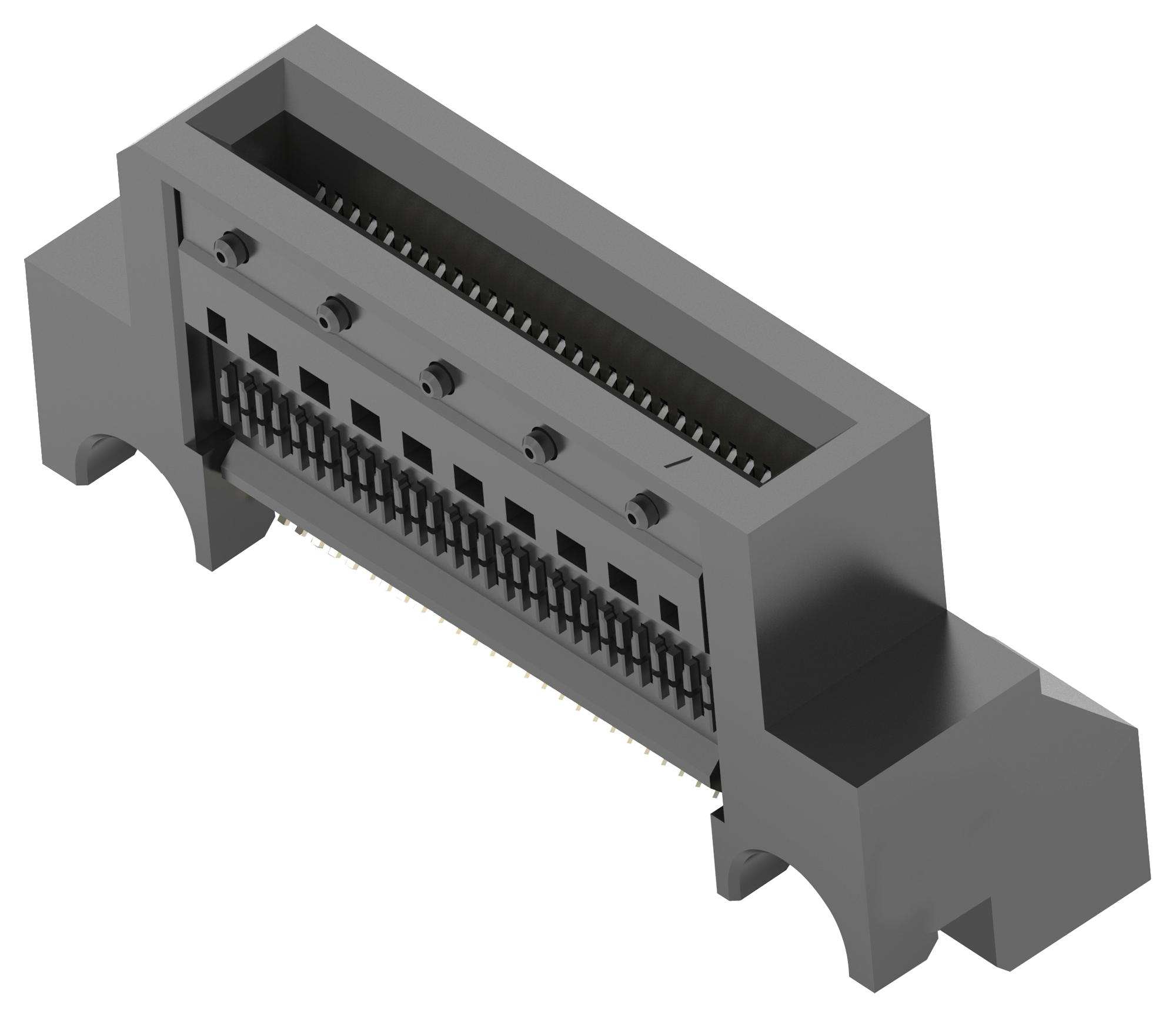

TE CONNECTIVITY 23403311 High-Voltage PCB Connector
The 2340331-1 is a 56-position silver high-voltage connectivity receiver connector designed for PCB applications within the Gen-Z industry standard. It features a card-edge connector type with a straddle mount PCB orientation, accommodating 2 rows and a 6 mm pitch. Made from copper alloy and plated with gold, nickel, and tin, it operates within a temperature range of -55°C to 85°C. Compliant with EU RoHS, ELV, and REACH directives, it ensures low halogen content and environmental safety, suitable for high-performance, reliable electronic connections in industrial and communication systems.
TE CONNECTIVITY 23403311 High-Voltage PCB Connector Specifications:
- Number of Positions: 56
- Connector Type: Card-Edge
- PCB Mount Orientation: Straddle Mount
- Contact Material: Copper Alloy
- Contact Plating: Gold, Nickel, Tin
- Centerline (Pitch): 6 mm
- Operating Temperature Range: -55°C to 85°C
- Industry Standard: Gen-Z, SFF-TA-1002
- Housing Material: Copper Alloy
- Surface Finish: Gold Plating on Mating Area
- Environmental Compliance: EU RoHS, ELV, REACH, Low Halogen
- Current Rating: 11A
- Mounting Type: Surface Mount, Board Mount
Buy the TE 2340331-1 – Reliable PCB Connectivity for Industrial Applications
Purchase the TE 2340331-1 high-voltage connector online today and enjoy superior connectivity for your PCB applications. This 56-position, silver HVM finish connector is designed for high-performance industrial, communication, and computing systems, ensuring reliable signal transfer and robust mechanical attachment. Made from high-quality copper alloy with gold, nickel, and tin plating, it complies with all environmental standards including EU RoHS and REACH. Easy to install through surface and board mounting, it guarantees durability, safety, and compliance for demanding industrial environments.
Buy TE 2340331-1 now and experience unmatched reliability and performance in high-speed industrial connectivity solutions.
