TE CONNECTIVITY 4525DODS5AI001DP Digital Pressure Transducer
The MS4515DO is a compact ceramic-based PCB mounted digital pressure transducer designed for precise measurement of gage and differential pressure from 2 to 30 inches H2O. It features CMOS sensor conditioning circuitry, temperature compensation, and outputs a high-resolution 14-bit pressure and 11-bit temperature data via PC or SPI protocols. Suitable for applications like blocked filter detection, altitude measurement, medical instruments, fire suppression, and environmental controls, it operates from a single 3.3V or 5.0V power supply, with options for low power and protective gel coating in harsh environments.
TE CONNECTIVITY 4525DODS5AI001DP Digital Pressure Transducer Specifications:
- Pressure Ranges: 2 to 30 inches H20
- Output: Digital 14-bit pressure, 11-bit temperature
- Protocols: PC or SPI
- Pressure Types: Gage and Differential
- Temperature Range: Operates from -40°C to +85°C
- Supply Voltage: 3.3V or 5.0V DC
- Power Consumption: Standby < 1A (low power option available)
- Wetted Materials: Ceramic, Silicon, Borosilicate Glass, RTV, Gold, Aluminum, Epoxy
- Port Types: Side port, top port, manifold mount
- Port Sizes: 1/8” barbed pressure ports for 3/32” ID tubing
- Burst Pressure: Up to 300 psi depending on configuration
- Operating Conditions: Humidity up to 95% RH, non-condensing
- Physical Dimensions: Vary by model, approximate length 0.48 inches, width 0.39 inches

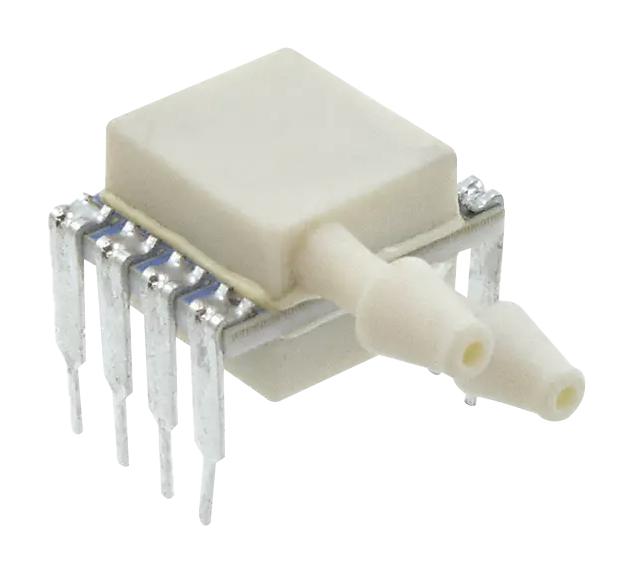

Buy the Buy TE Connectivity MS4515DO Pressure Sensor Part Number 4525DODS5AI001DP Online
Order the TE Connectivity MS4515DO digital pressure transducer online today to benefit from high accuracy, robust ceramic construction, multiple port options, and digital output protocols. Perfect for medical instruments, environmental controls, fire suppression, and altitude measurements, this compact sensor ensures reliable performance in diverse applications. With single supply operation at 3.3V or 5.0V, low power modes, and optional gel coating for harsh environments, it provides precise pressure and temperature data, delivering exceptional value and ease of integration for OEM designs.
Buy TE Connectivity MS4515DO pressure transducer now and experience precise digital measurement with low power consumption and versatile mounting options.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 4525DODS5AI001DP?
You can click on the BUY or RFQ button to purchase 4525DODS5AI001DP from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 4525DODS5AI001DP?
You can download the 4525DODS5AI001DP datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 4525DODS5AI001DP?
TE CONNECTIVITY
