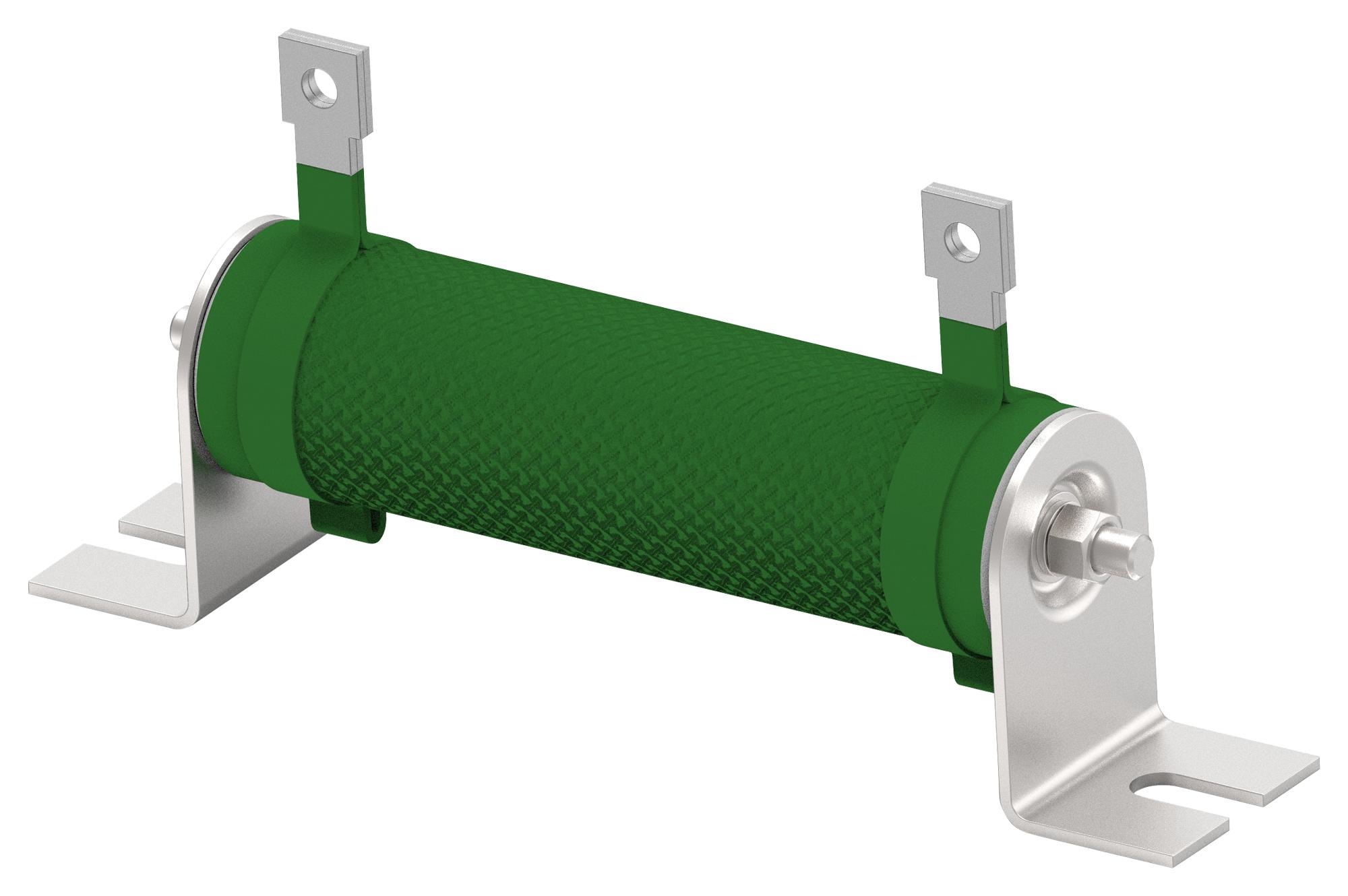

TE CONNECTIVITY TE50BR22J High Power Resistor
The TE series high power wire-wound resistors are flameproof coated tubular ceramic core resistors designed for heavy-duty machinery, electrical equipment, and motor control applications. They utilize standard and edge-wound methods to boost power handling, providing stability and reliability. Suitable for load testing, motor start/stop cycles, dynamic braking, and discharge, these resistors feature flameproof construction with UL94V coating, operate from -55°C to +155°C, and can handle short-term overloads up to three times rated power for 5 seconds. They offer dielectric strength of at least 2500VAC, an insulation resistance of minimum 20 MΩ at 500VDC, and include a standard mounting bracket for easy installation.
TE CONNECTIVITY TE50BR22J High Power Resistor Specifications:
- Resistor Type: Power Resistor
- Element Type: Wire Wound
- Dimensions: 146 x 28 x 61 mm
- Mounting: Box, with Standard Mounting Bracket
- Power Rating: 50 W
- Resistance Value: 22Ω
- Resistance Class: Up to 1kΩ
- Passive Component Tolerance: 5%
- Operating Temperature Range: -55°C to +155°C
- Dielectric Strength: ≥2500VAC
- Insulation Resistance: ≥20 MΩ at 500VDC
- Features: Flameproof, UL94V coating, Short-term overload capacity: 3× rated for 5 sec
Buy the CGS Series Resistors: Power Resistor TE50BR22J
Purchase the CGS series 50W high power wire-wound resistor online today. Designed for demanding industrial applications, it offers flameproof UL94V coating, a wide temperature range, and robust overload capacity. Ideal for equipment discharge, load testing, and motor control, this resistor ensures stability and durability with easy mounting options. Order now to enjoy reliable operation in heavy-duty machinery and electrical systems, backed by quality certification and fast shipping for your project needs.
Get CGS TE50BR22J high power resistor today—built for heavy-duty applications, offering flameproof construction and reliable performance.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY TE50BR22J?
You can click on the BUY or RFQ button to purchase TE50BR22J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part TE50BR22J?
You can download the TE50BR22J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of TE50BR22J?
TE CONNECTIVITY
