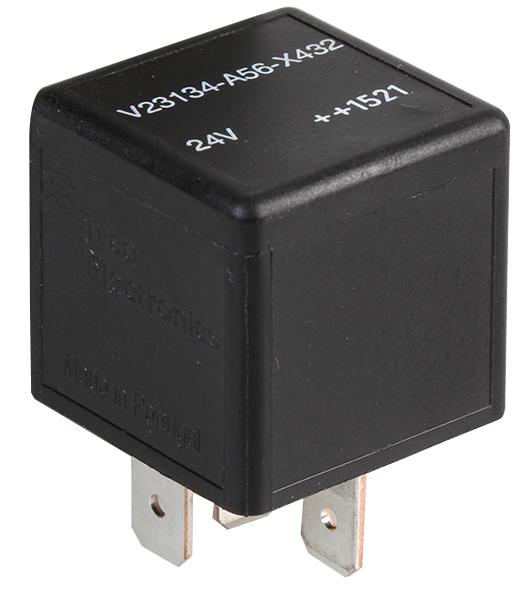

TE CONNECTIVITY 513933022 Automotive Power Relay
Power Relay F4 is a versatile automotive relay designed for high-current switching applications such as ABS control, fuel pumps, and lighting systems. It features plug-in or PCB terminals, various contact arrangements, and options for integrated resistors or diodes. The relay offers contact gaps greater than 0.8mm, making it suitable for demanding automotive environments. It complies with ISO standards, supports different coil voltages including 12VDC and 24VDC, and has high electrical and mechanical endurance. It is ideal for automotive energy management, engine control, and safety systems, providing reliable performance under extreme conditions.
TE CONNECTIVITY 513933022 Automotive Power Relay Specifications:
- Contact arrangement: 1 NO/NO, 1 form C, 1 CO, 2 NO, 2x87, 1 form U, 2 NO
- Contact gap: >0.8mm
- Rated voltage: 12VDC, 24VDC, 42VDC, 72VDC
- Electrical endurance: >2x105 operations resistive load
- Coil resistance: 85°C, 12VDC 1.6Ω, 24VDC 3.2Ω, 24VDC with contact gap >0.8mm 4Ω
- Insulation resistance: 500V insulation between contacts and coil
- Operating temperature: -40°C to +125°C
- Vibration resistance: >592 m/s²
- Shock resistance: >20g
- Mechanical endurance: >1x10⁸ operations
- Protection: UL94-HB flame retardant
- Size (plug-in version): approx. 25.92mm x 20.3mm x 16.9mm
- Mounting: plug-in, PCB terminals, or bracket options
- Compliance: IEC 61810-1, RoHS compatible
Buy the TE Connectivity Series Power Relay F4: 513933022
Order the TE Connectivity Power Relay F4 513933022 online today and ensure reliable high-current switching for your vehicle’s safety and control systems. Whether you need plug-in or PCB mounting options, this relay provides exceptional endurance, contact stability, and protection against extreme temperatures, vibration, and shock. Designed to meet rigorous automotive standards, it is ideal for ABS control, fuel pumps, lighting, and energy management systems. Purchase online now to benefit from fast delivery and trusted quality for your automotive projects.
Buy TE Connectivity Power Relay F4 513933022 now and experience unmatched reliability and performance for demanding automotive applications.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 513933022?
You can click on the BUY or RFQ button to purchase 513933022 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 513933022?
You can download the 513933022 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 513933022?
TE CONNECTIVITY
