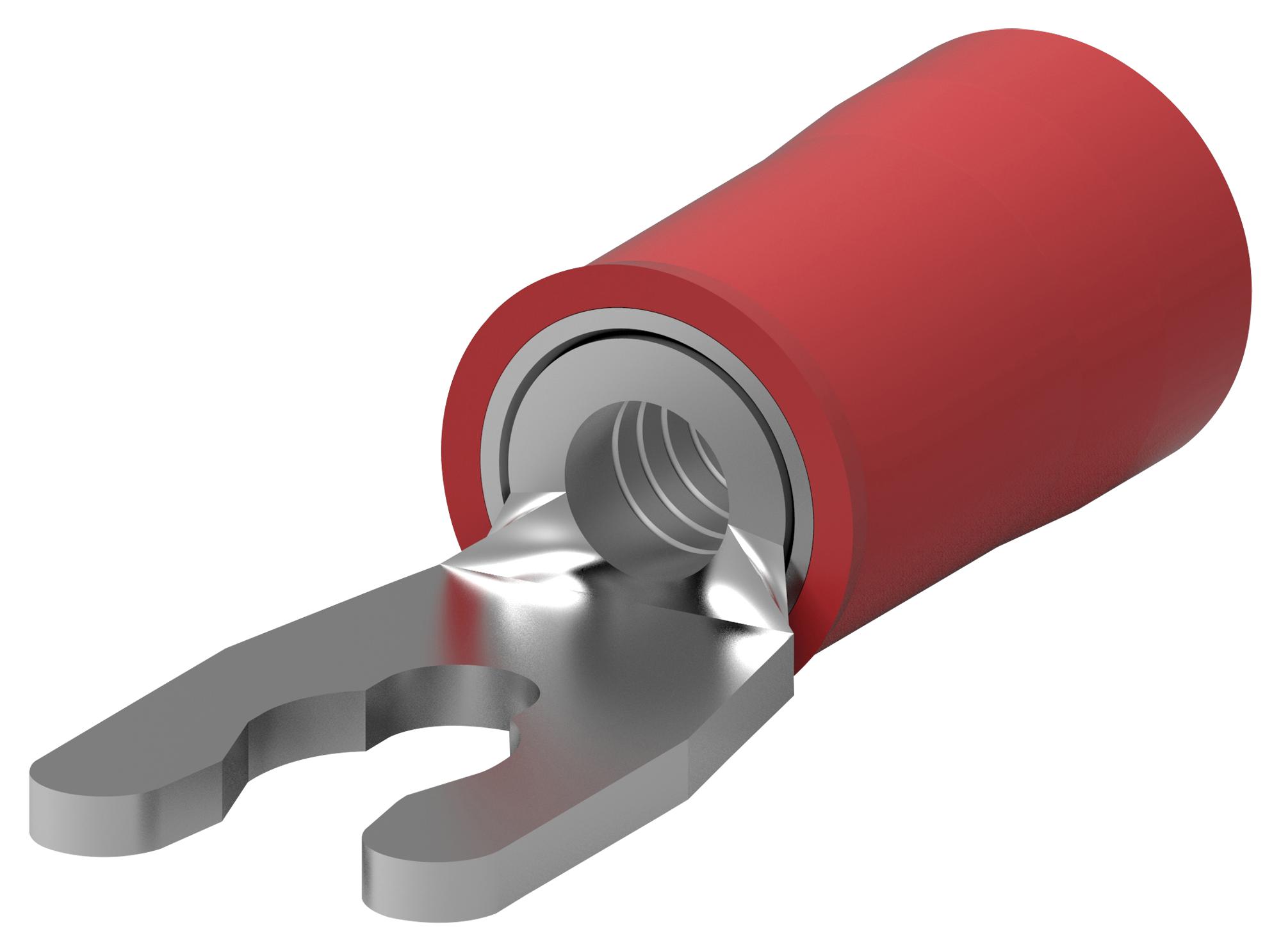

TE CONNECTIVITY 52928 PIDG Terminal Splice Connector
TE Connectivity's PIDG terminals and splices are engineered for consistent performance in demanding circuit conditions, particularly those involving high vibration and wire movement. These terminals consist of a nylon or PVC insulated body and a metal sleeve that crimps to the wire insulation for added support. The wire barrel design provides vibration resistance and supports the wire, preventing damage to the insulation or conductor. Millions of PIDG terminals and splices remain in use years after installation, a testament to their rigorous testing and manufacturing processes. Many meet or exceed SAE AS7928, Type II, Class 1 and 2 requirements.
TE CONNECTIVITY 52928 PIDG Terminal Splice Connector Specifications:
- Material: Insulation: Nylon, UL 94V-2; Terminal Body: Copper per ASTM B-152; Metallic Sleeve: Copper per ASTM B-152
- Plating: Tin per ASTM B-545
- Operating Temperature: 105°C
- Operating Voltage: 300V
- Mil-Spec Approval: Yes
- Applications: Instruments/Control, Lighting, Power Supplies, Panel Boxes, Transportation, Lifting equipment, Motors, Aerospace, Appliances
Buy the 52928 TE CONNECTIVITY PIDG Terminal Splice Connector | myMectronic
Purchase TE CONNECTIVITY 52928 PIDG Terminal Splice Connector securely online today.
Buy Now
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 52928?
You can click on the BUY or RFQ button to purchase 52928 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 52928?
You can download the 52928 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 52928?
TE CONNECTIVITY
