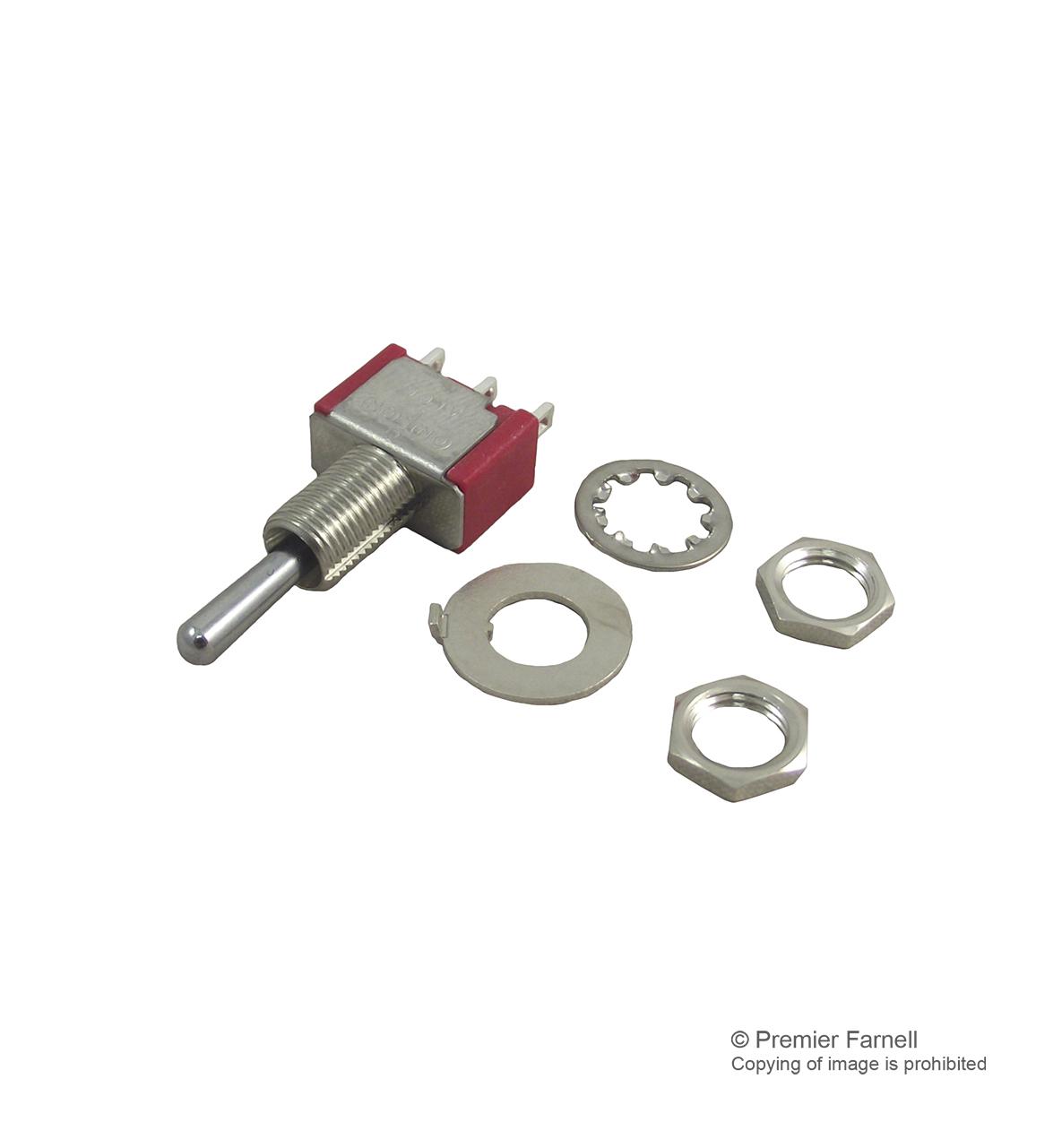

TE CONNECTIVITY A105SYZQ04 manually operated switch
The TE Connectivity Gemini Series Switches, including toggle, rocker, and paddle types, are designed for industrial, medical, communication, and outdoor applications. They feature high durability with up to 6000 cycles, epoxy sealed terminals to prevent contamination, and various contact and termination options like wire lug, PC, wire wrap, and quick connect. The switches operate efficiently across a temperature range of -30°C to +85°C, with contact ratings up to 5A at 125VAC and resistive loads. Both AE and A Series offer single and double pole configurations with multiple actuator colors and sealing capabilities for challenging environments.
TE CONNECTIVITY A105SYZQ04 manually operated switch Specifications:
- Contact Configuration: 1, 2, 3, and 4 poles
- Contact Timing: Break before make
- Contact Rating Max.: Gold 0.4VA @20V AC/DC; Gold over Silver 5A @ 125VAC or 28VDC resistive; Silver 5A @ 125VAC or 28VDC resistive
- Electrical Life: 6000 cycles
- Contact Resistance, Initial: 10 mOhms max. at 2-4 VDC 100 mA
- Insulation Resistance: 1.000 MOhms
- Dielectric Strength: 1,000 Vrms @ sea level
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -30°C to +85°C
- Solder Heat Resistance: Capable of wave solder to 265°C
- Material: Thermoplastic case, brass actuator, copper alloy contacts with gold or silver finish
- Sealing: Epoxy terminal seal on single pole switches, IP67 rated for AE series
- Actuator Travel: 18° to 22° depending on function
- Terminals: Solder lug, PC, wire wrap, quick connect
- Certifications: RoHS compliant, UL recognition
Buy the Buy TE Connectivity Switches Part Number A105SYZQ04 Online
Discover the reliable TE Connectivity Gemini Series switch, featuring epoxy sealed terminals, multiple configuration options, and IP67 sealing for harsh conditions. Perfect for industrial machinery, medical devices, and outdoor lighting, this switch ensures durability and consistent operation across temperature ranges of -30°C to +85°C. With a maximum contact rating of 5A at 125VAC, it offers long-term durability with 6000 cycles. Easy to install with various terminal options, this switch is ideal for engineers seeking quality and versatility in challenging environments.
Order your TE Connectivity Gemini Series switch with Part Number A105SYZQ04 today and ensure reliable performance in industrial and outdoor environments.
