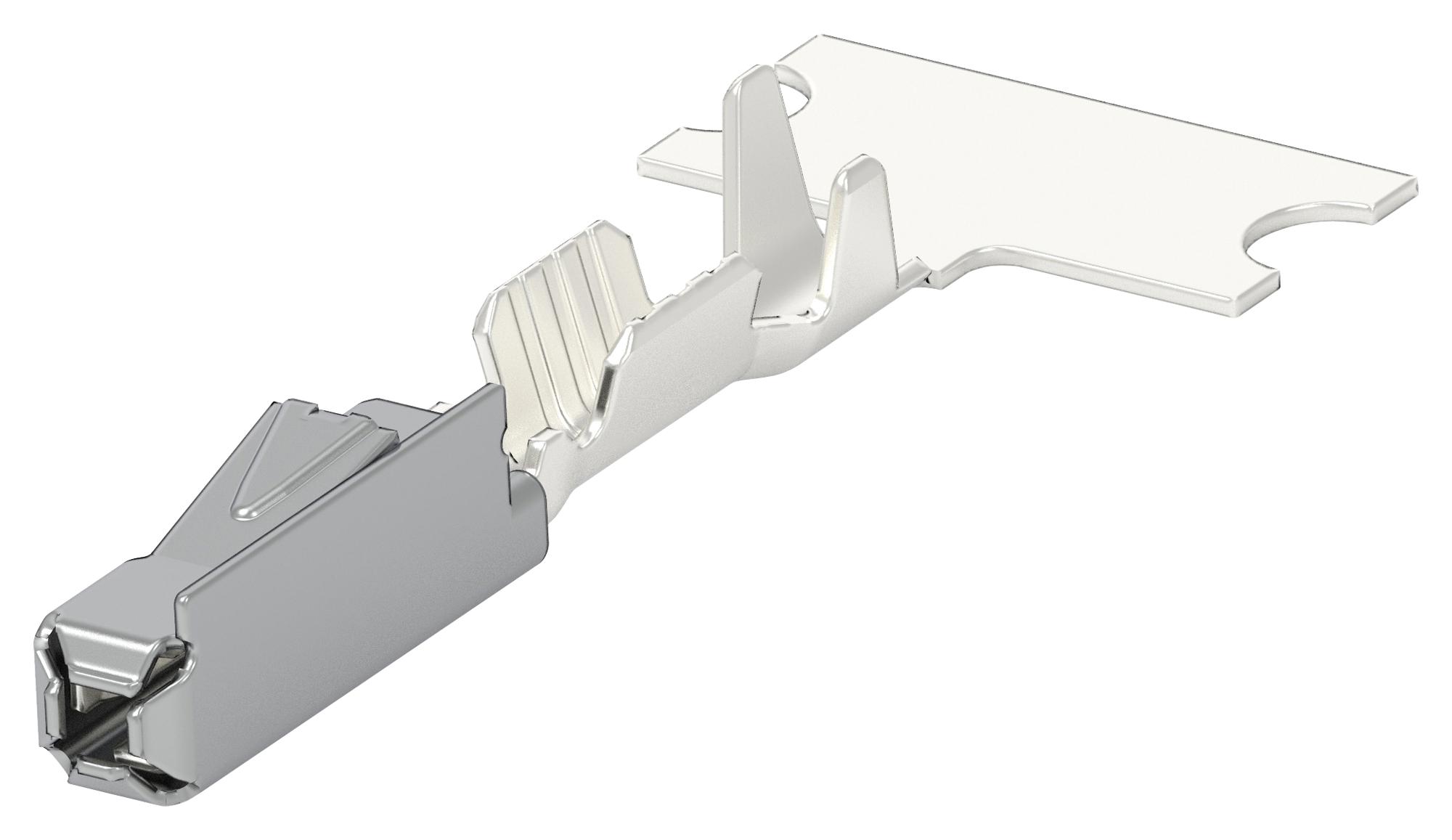

TE CONNECTIVITY 59289996 Automotive MQS Receptacle
The MQS automotive receptacle with a tab width of .025 inches and tab thickness of .025 inches is designed for low power applications transmitting 0 to 24 A. Made from durable copper with silver plating, it ensures reliable electrical connections. Suitable for 22-24 AWG wires, it features a sealable receptacle style with primary locking and crimp termination. This connector offers excellent resistance to environmental factors, complies with various industry standards including EU RoHS and REACH, and is ideal for automotive wiring systems seeking secure and efficient power transfer in constrained spaces.
TE CONNECTIVITY 59289996 Automotive MQS Receptacle Specifications:
- Tab Width: .025 inches (.63 mm)
- Tab Thickness: .025 inches (.63 mm)
- Current Transmit: 0-24 A (Low Power)
- Wire Size: 22-24 AWG
- Material: Copper with Silver (Ag) plating
- Crimp Type: F-Crimp
- Receptacle Style: Sealable
- Locking Feature: Primary lock
- Contacts: Copper, Silver-plated
- Environmental Compliance: EU RoHS, REACH, China RoHS 2
- Packaging: Reel, 13,000 units
- Insulation Diameter: 1.1-1.6 mm
- Agency Standards: UL, CSA
Buy the Buy TE Automotive MQS Receptacle Part Number 59289996 Online
Purchase the TE Automotive MQS Receptacle part number 59289996 online today to benefit from a high-quality, low power connector ideal for automotive applications. This sealable receptacle features a .025-inch tab width, copper construction with silver plating for reliable conductivity, and a locking latch for secure connections. Designed for wire sizes 22-24 AWG, it transmits up to 24 amps and complies with industry standards like EU RoHS and REACH. Order now to ensure durable, efficient electrical connections in your vehicle systems.
Buy TE Automotive MQS Receptacle Part Number 59289996 now and ensure secure, low power connections suitable for automotive wiring needs.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 59289996?
You can click on the BUY or RFQ button to purchase 59289996 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 59289996?
You can download the 59289996 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 59289996?
TE CONNECTIVITY
