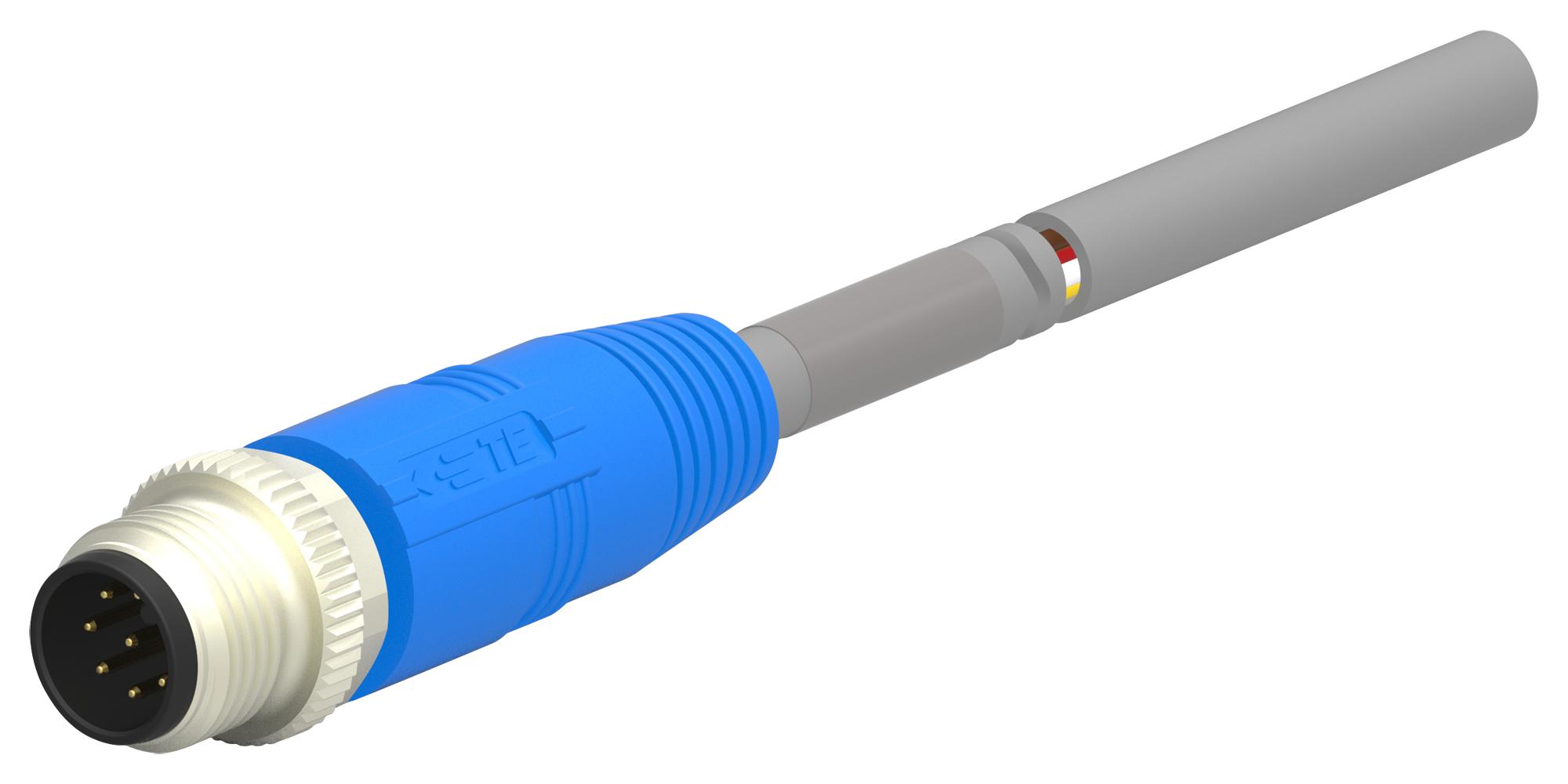

TE CONNECTIVITY T4151120008004 Sensor/Actuator Cable
The M8/M12 Cable Assembly designed for sensor and actuator applications features an 8-position straight cable pigtail with a gray jacket, made from copper alloy conductors, and equipped with a plug connector. It supports a maximum operating voltage of 30 VDC, ensuring reliable data and power transmission for industrial automation. This assembly, measuring 3000 mm in length, is compliant with EU RoHS, ELV, and REACH standards, and is suitable for environments requiring robust and shielded connections. Its M12 screw & hole thread mounting provides secure attachment efficiency, making it ideal for demanding industrial sensor interfacing.
TE CONNECTIVITY T4151120008004 Sensor/Actuator Cable Specifications:
- Cable Assembly Length: 3000 mm
- Connector Type: M12 Pigtail Plug
- Number of Positions: 8
- Cable Exit Angle: Straight
- Conductor Material: Copper Alloy
- Cable Jacket Color: Gray
- Housing Material: GF Nylon
- Screw & Hole Thread Size: M12
- Operating Voltage: 30 VDC
- Application Type: Sensor/Actuator
- Shielded: Yes
- Compliance: EU RoHS, ELV, China RoHS 2, REACH
- Cable Type: Pigtail, Straight
- Cable Jacket Material: PVC
- Cable Configuration: Single Ended
- Mechanical Mounting: M12 screw & hole
- Dimensions: Length 3000 mm
Buy the Industrial Connectivity Series M12 Sensor Cable: T4151120008
Purchase the TE Connectivity M12 sensor/actuator cable assembly online today to ensure reliable industrial connections. This 8-position, straight, shielded cable, 3000 mm long, supports 30 VDC operation, and complies with EU RoHS, ELV, and REACH standards. Its copper alloy conductors and GF Nylon housing ensure durability and efficient signal transmission in demanding environments. Perfect for automation systems, sensors, and actuators, this assembly provides secure M12 screw & hole mounting, making installation straightforward and dependable for your industrial needs.
Buy TE Connectivity M12 cable assembly now and experience unmatched reliability and performance for industrial sensor and actuator connections.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY T4151120008004?
You can click on the BUY or RFQ button to purchase T4151120008004 from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part T4151120008004?
You can download the T4151120008004 datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of T4151120008004?
TE CONNECTIVITY
