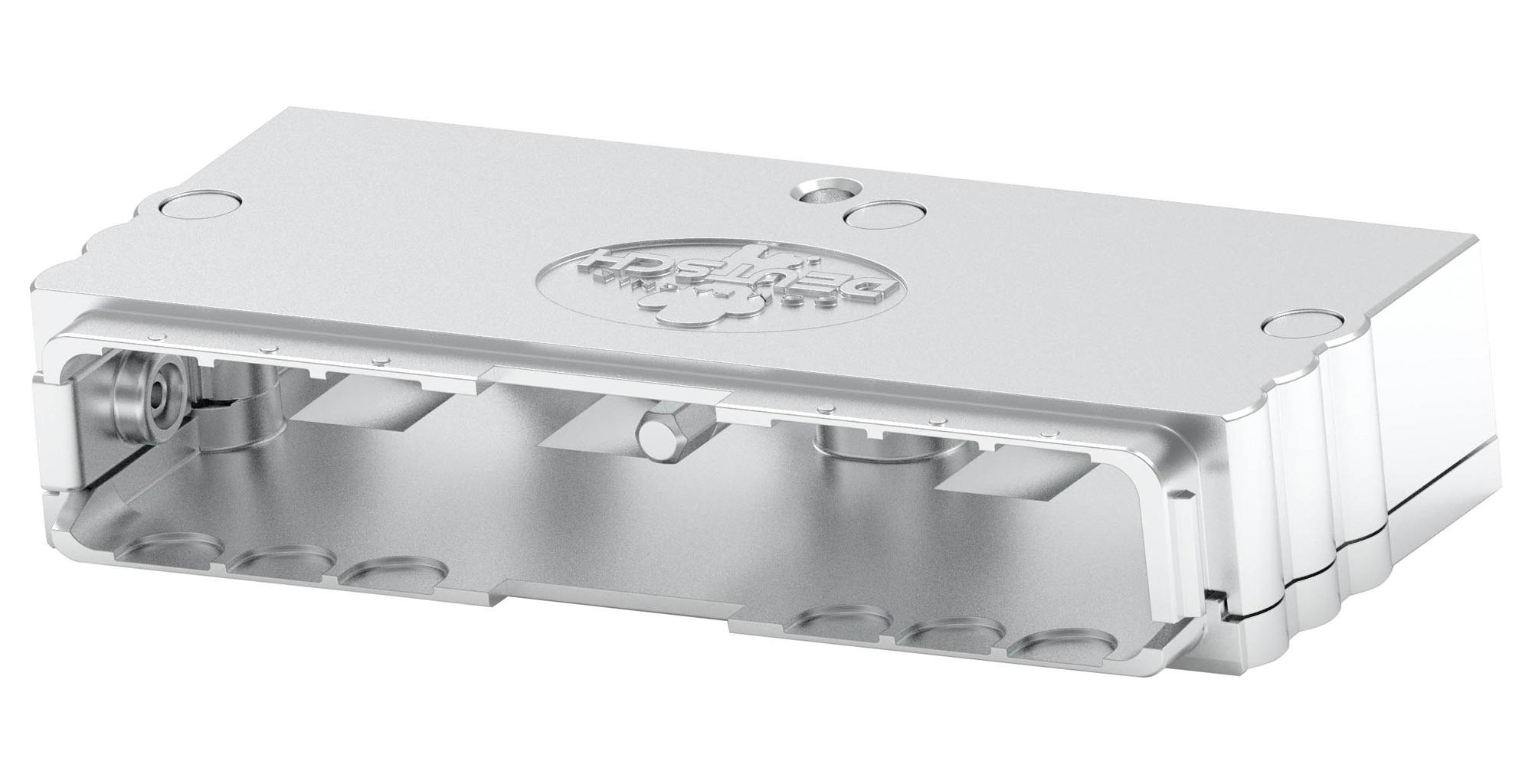

TE CONNECTIVITY 732805210J Multicavity Connector System
The Deutsch DMC-M Series is a rugged, modular connector system designed for aerospace, defense, and marine applications. It features high-density, lightweight, and space-saving configurations with options for aluminum or composite housings, fiber optics, and various modular arrangements. The connectors support up to 36 keying options to prevent misalignment, durability of 500 mating cycles, operating temperatures from -55°C to +175°C, and electrical withstand voltages up to 1500 Vrms depending on size. They are suitable for harsh environments with corrosion-resistant finishes and EMI shielding, making them ideal for reliable, flexible aerospace connectivity solutions.
TE CONNECTIVITY 732805210J Multicavity Connector System Specifications:
- Shell Material: Aluminum alloy or composite, with electroless nickel or olive drab cadmium finish
- Operating Temperature: -55°C to +175°C
- Durability: 500 mating cycles
- Contact Retention: Size 24: 2.7 daN (6.1 Ib), Size 08: 15.6 daN (35.1 Ib)
- Electrical Withstand Voltage: Up to 1500 Vrms at sea level depending on size
- Insulation Resistance: 25000 MΩ at sea level
- Contact Current Rating: Size 24: 3 A, Size 20: 7.5 A, Size 16: 13 A, Size 12: 23 A, Size 08: 46 A
- Shielding Effectiveness: Attenuation up to 45 dB at MHz frequencies
- Module Compatibility: Supports up to 36 keying options, various configurations for modules, fiber optics, and hybrid assemblies
- Weight: From approximately 25g for smaller modules to over 330g for larger high-density modules
- Environmental Resistance: Salt spray resistance up to 500 hours for aluminum cadmium, 96 hours for nickel finishes
Buy the Deutsch Series DMC-M Connector: 732805210J
Order the Deutsch DMC-M series multicavity connectors online now to ensure reliable aerospace, defense, and marine connectivity. Designed for space efficiency, flexibility, and harsh environments, these connectors feature extensive keying options, lightweight aluminum or composite housings, fiber optic and hybrid modules, and robust electrical and environmental resistance. Perfect for applications requiring high durability, precise mating, and EMI shielding, our online purchase guarantees fast delivery and expert support for your critical aerospace and defense projects.
Get Deutsch DMC-M connector system today—built for precision and long-lasting durability in aerospace and defense environments.
Frequently Asked Questions
Where can I buy TE CONNECTIVITY 732805210J?
You can click on the BUY or RFQ button to purchase 732805210J from an authorized TE CONNECTIVITY distributor.
How do I troubleshoot issues or seek technical support for part 732805210J?
You can download the 732805210J datasheet or visit the TE CONNECTIVITY website for support.
Who is the manufacturer of 732805210J?
TE CONNECTIVITY
